Door Lock Knob Switch Test: Test

Driver's door

1. Driver's Door Panel - Remove
2. Driver's Door Lock Knob Switch - Test

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

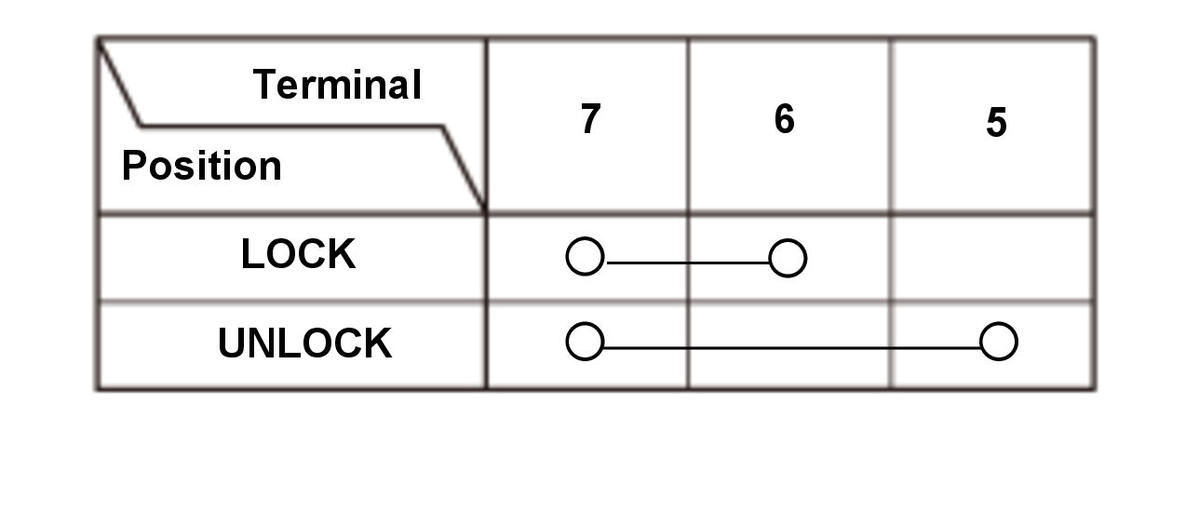

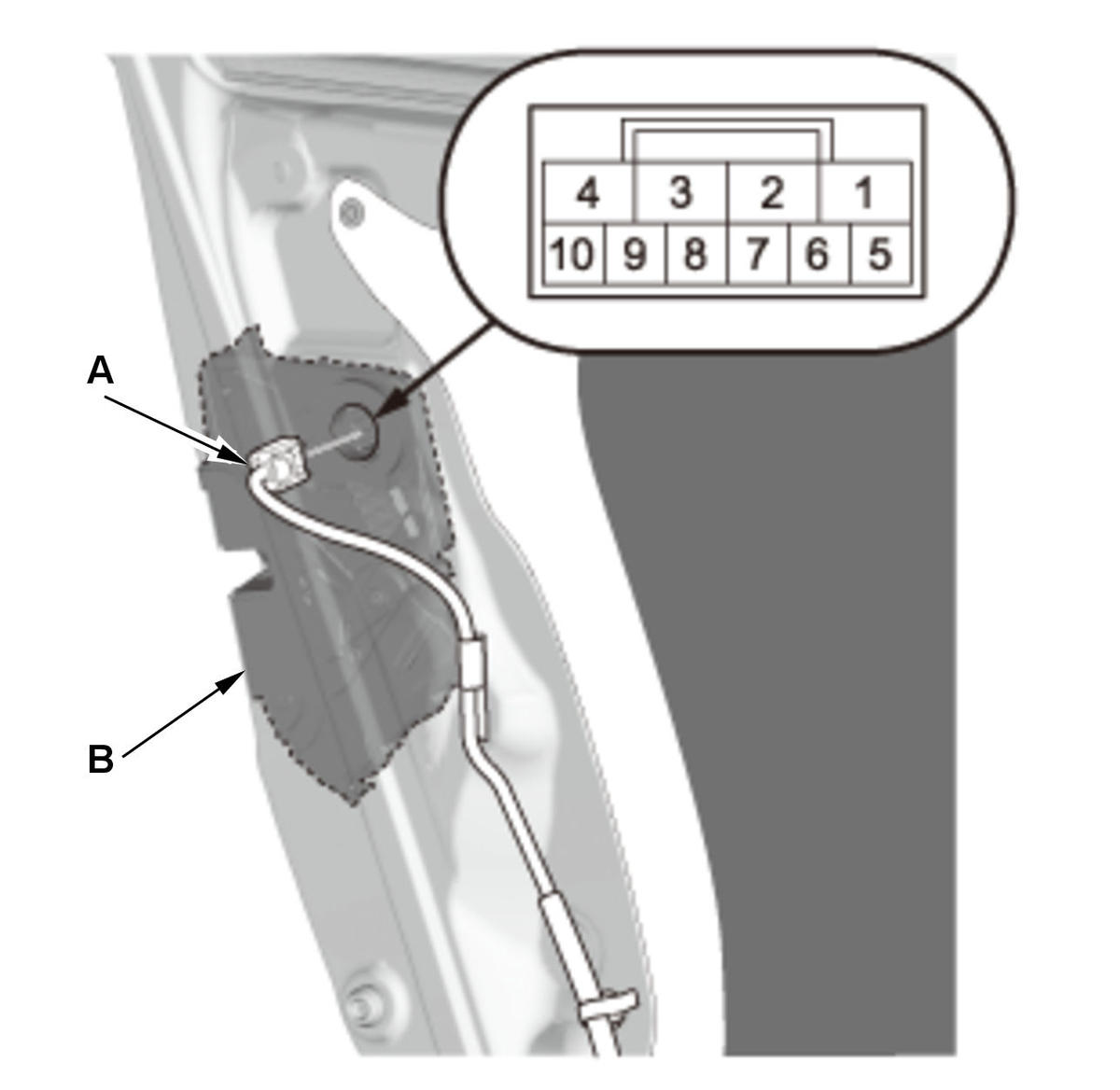

   1. Disconnect the connector (A). 2. Check for continuity between the terminals in each switch position according to the table. 3. If the continuity is not as specified, the driver's door lock knob switch is faulty; replace the driver's door latch (B).

3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

   Front passenger's door

4. Front passenger's Door Panel - Remove
5. Front passenger's Door Lock Knob Switch - Test

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

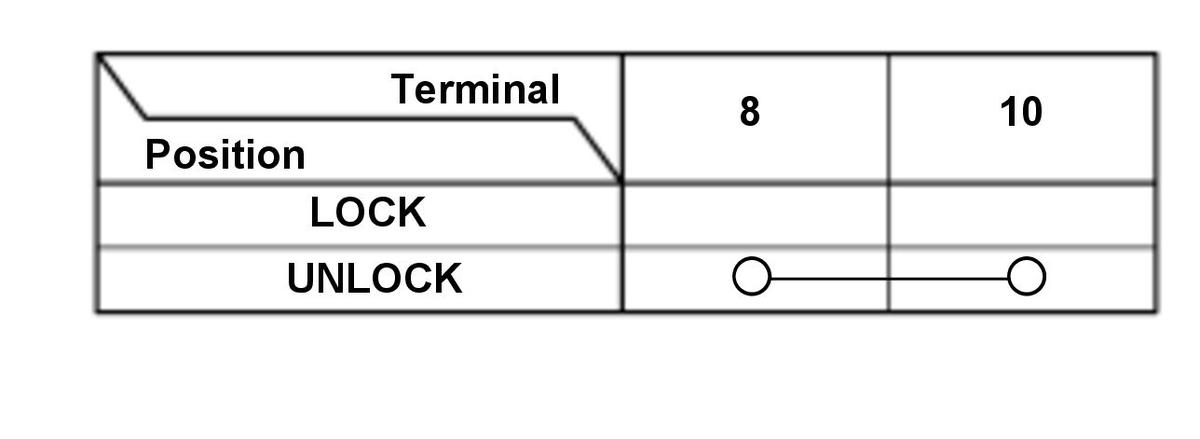

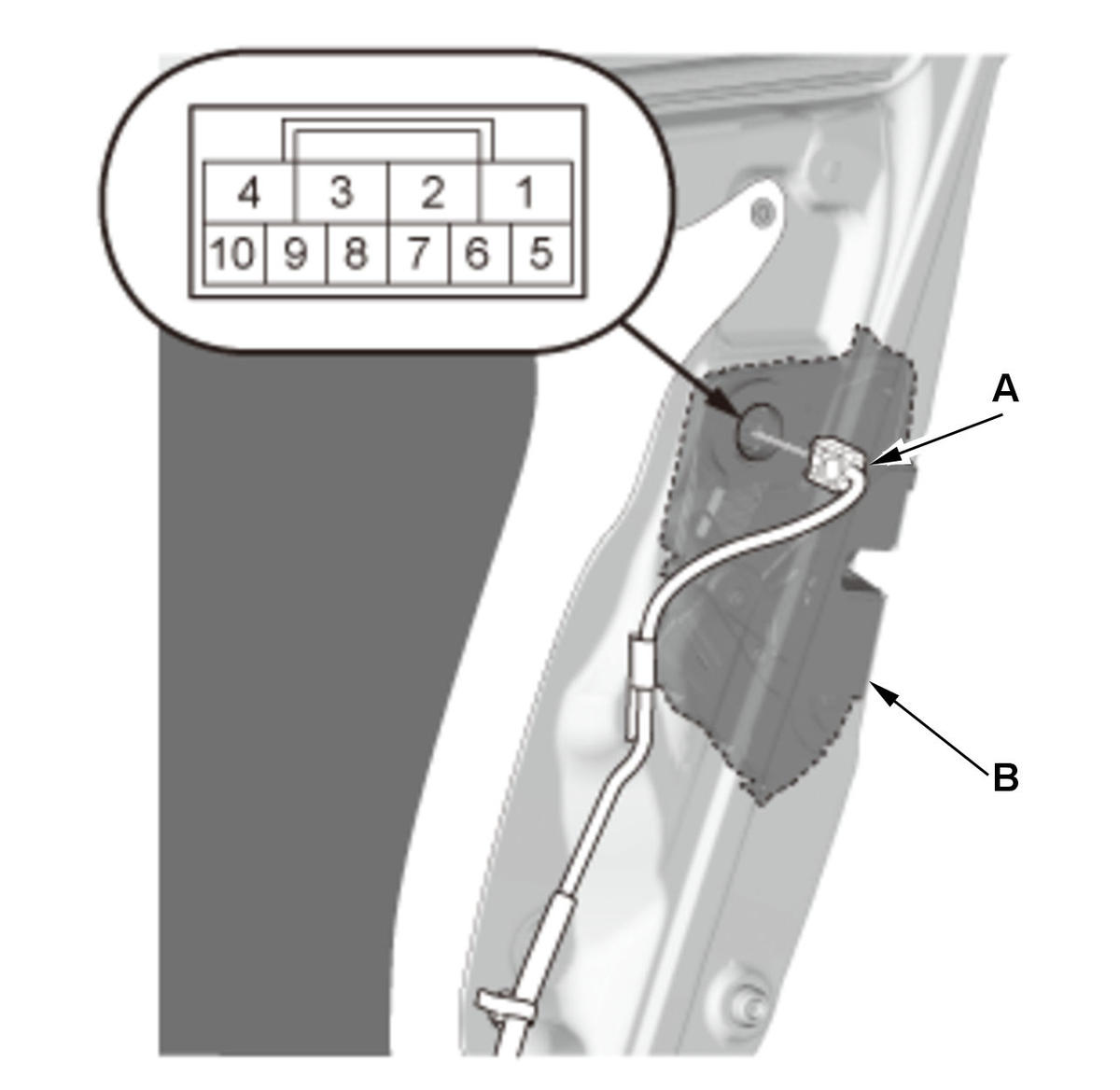

   1. Disconnect the connector (A). 2. Check for continuity between the terminals in each switch position according to the table. 3. If the continuity is not as specified, the front passenger's door lock knob switch is faulty; replace the front passenger's door latch (B).

6. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

   Rear Door

7. Rear Door Panel - Remove
8. Rear Door Lock Knob Switch - Test

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Left and Right Rear Door  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

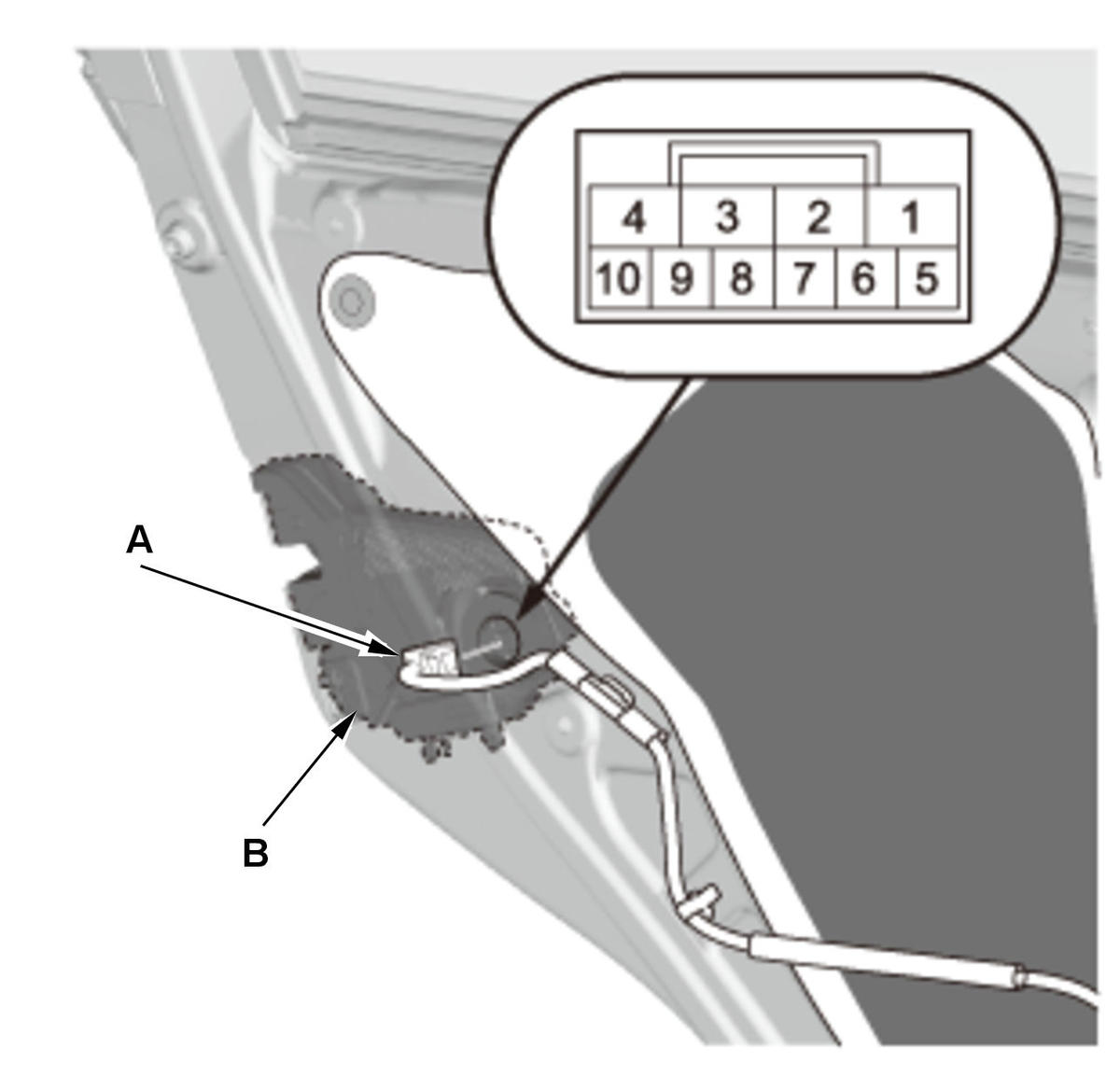

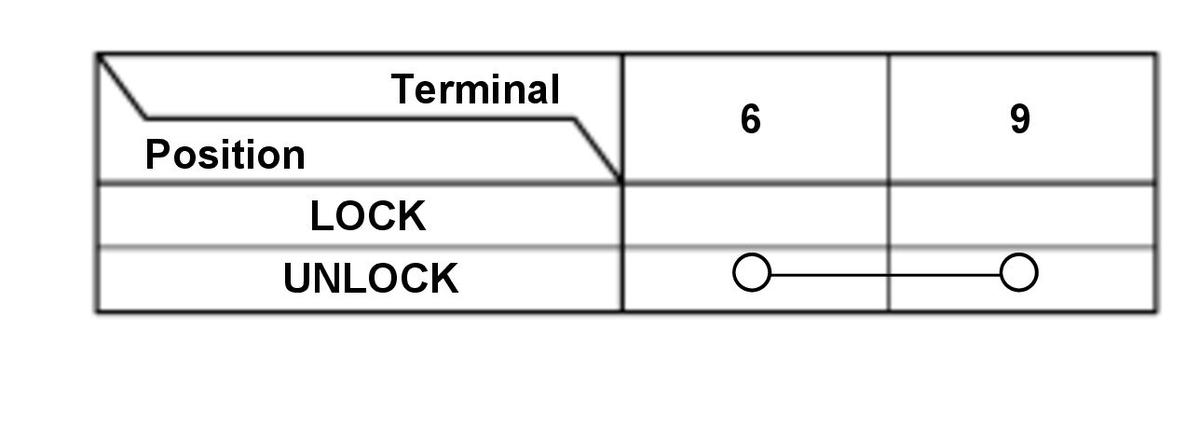

   1. Disconnect the connector (A). 2. Check for continuity between the terminals in each switch position according to the table. 3. If the continuity is not as specified, the rear door lock knob switch is faulty; replace the rear door latch (B).

9. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
