Removal and Installation

PCV Valve - Remove

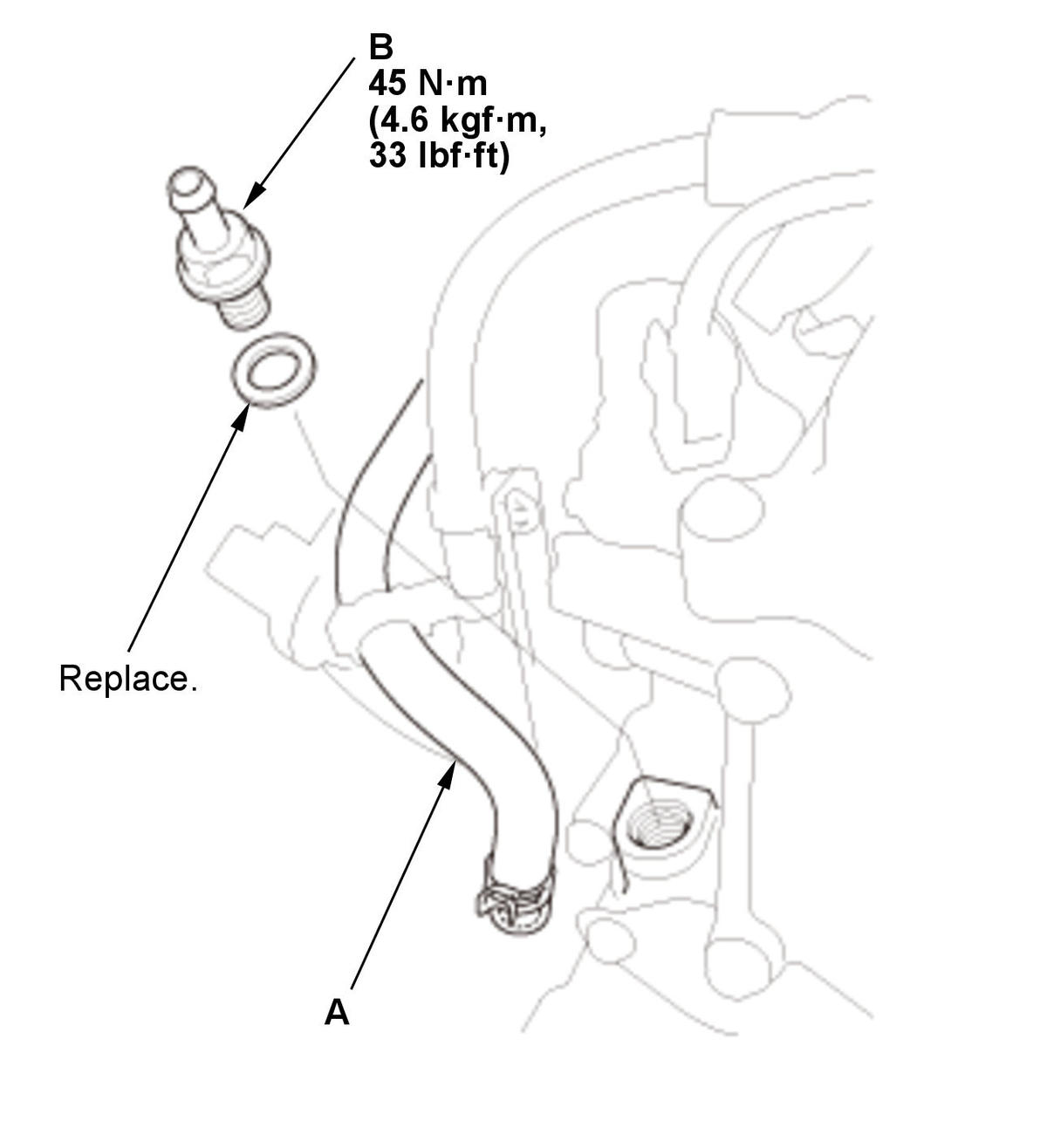

Fig 1: PCV Valve With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

1. Disconnect the PCV hose (A).
2. Remove the PCV valve (B).
All Removed Parts - Install

1. Install the parts in the reverse order of removal with a new washer.
