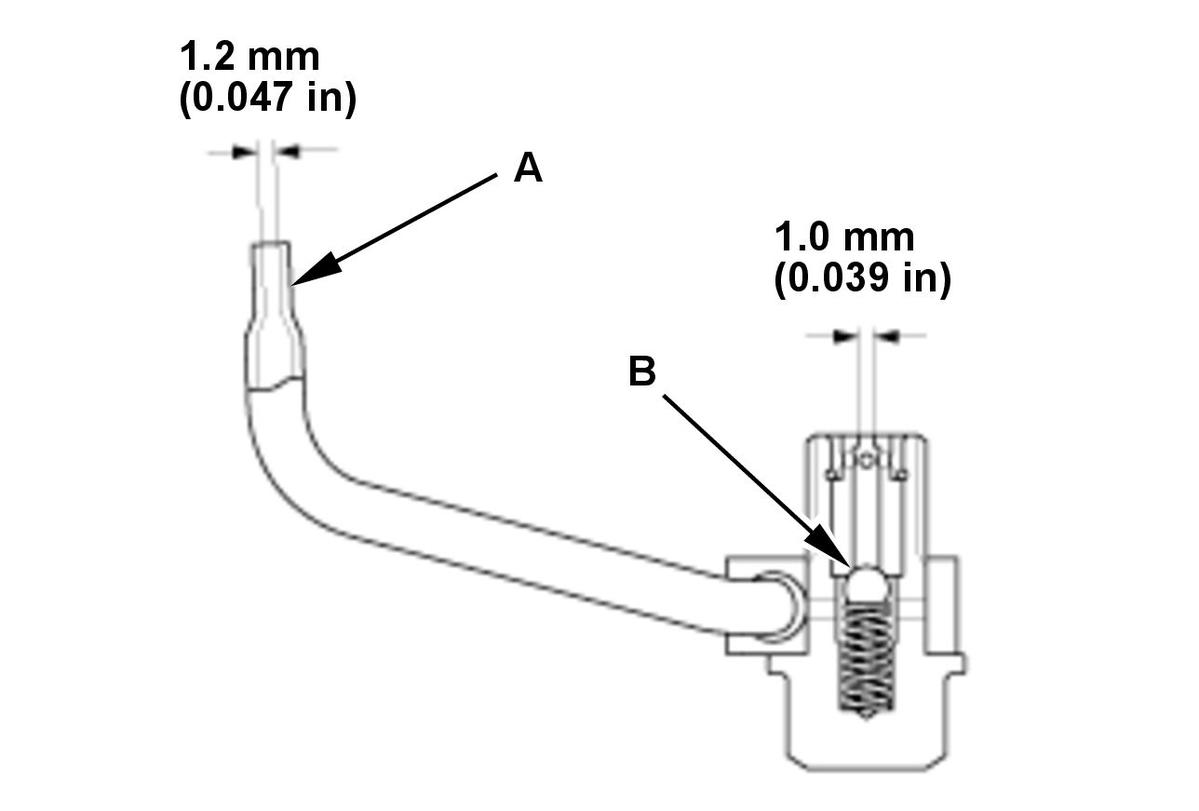

 Courtesy of HONDA, U.S.A., INC.
|
1. Inspect the oil jet and the oil jet bolt as follows:
- Make sure that a 1.0 mm (1/32 in) diameter drill bit will go through the nozzle hole (A) (1.2 mm (0.047 in) diameter).
- Insert the other end of a 0.8 mm (1/32 in) drill bit into the oil intake (1.0 mm (0.039 in) diameter). Make sure the check ball (B) moves smoothly and has a stroke of about 4.0 mm (0.157 in).
- Check the oil jet bolt operation with an air nozzle. It should take at least 310 kPa (3.16 kgf/cm 2, 45.0 psi) to unseat the check ball.
|
