Monitor Check: Notes

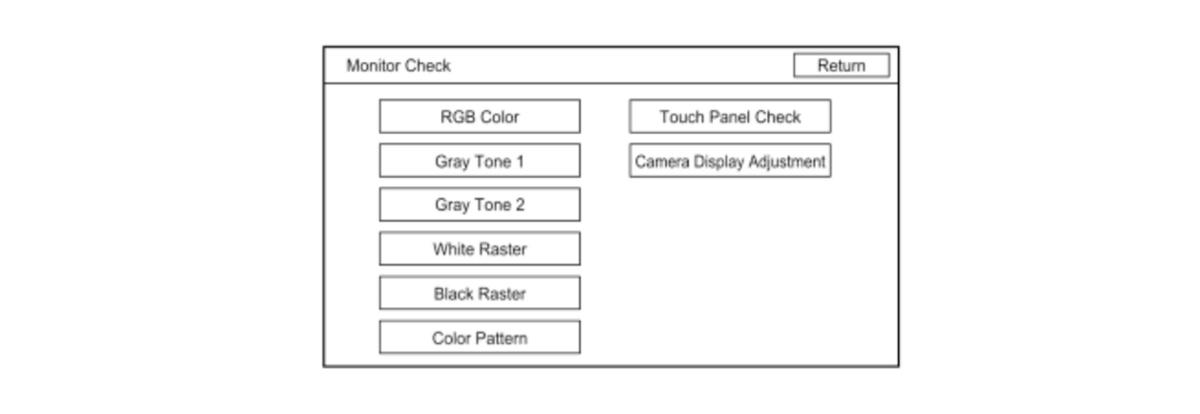

These screens allow you to troubleshoot the LCD display on the center display unit. Select the item you want to check, and follow the diagnostic instructions.
- RGB Color
- Gray Tone 1
- Gray Tone 2
- White Raster
- Black Raster
- Color Pattern
- Touch Panel Check
- Camera Display Adjustment
 Courtesy of HONDA, U.S.A., INC.
|
