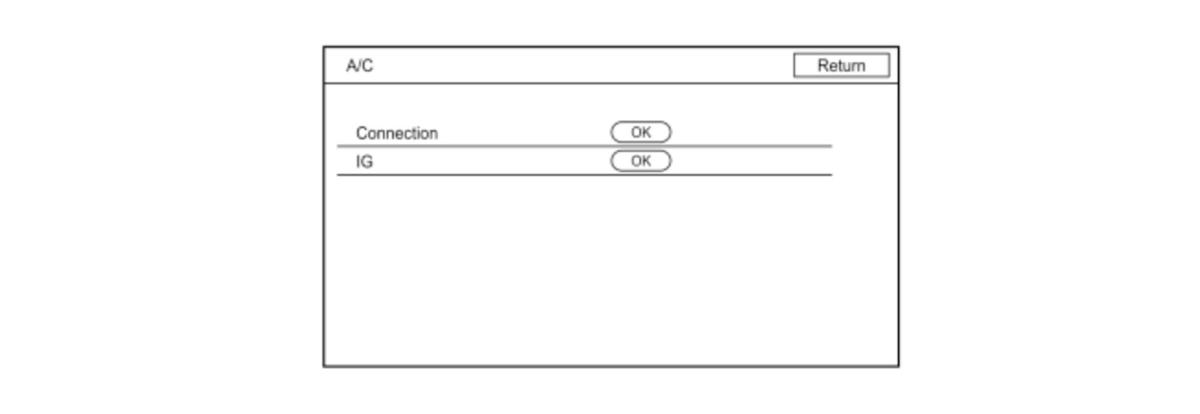

Unit Check (Quick Check): A/C
NOTE:
This diagnosis must have the vehicle is in the READY TO DRIVE mode.
This diagnosis detects if the vehicle is in the ON mode using information provided over the F-CAN bus, then it tests the climate control signal via the B-CAN bus between the audio-navigation unit and the climate control unit.
If Connection shows NG, check for hard error codes .
