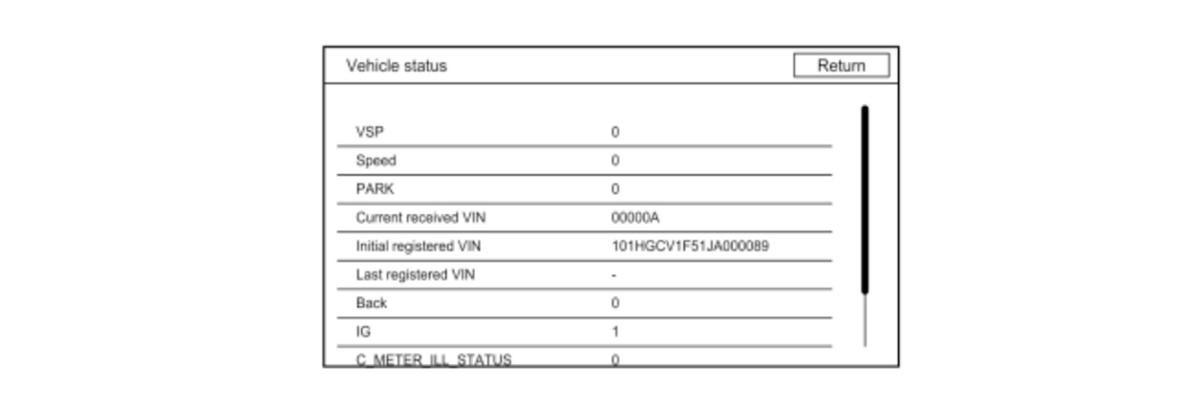

Vehicle Status

Use this screen to confirm that the audio-navigation unit is properly receiving input signals. The displayed value changes each time according to the state of input signal.

NOTE: These items describe in indication order. Swipe the screen to check the next items.

Item	Input	Description
VSP	VSP line	1: When the vehicle speed pulse is received from the TCM 0: When the vehicle speed pulse is not received from the TCM
Speed	B-CAN lines	This item indicates the vehicle speed (km/h).
PARK	PARKING BRAKE SW line	1: When the parking brake is applied 0: When the parking brake is not applied
Current received VIN	B-CAN lines	This item indicates the VIN that received from the PCM.
Initial registered VIN	B-CAN lines	This item indicates the initial registration VIN (10 is added to the beginning of indicated VIN) that is saved in the audio-navigation unit.
Last registered VIN	B-CAN lines	This item indicates the additional registration VIN (11 is added to the beginning of indicated VIN) when the audio-navigation unit is substituted into another vehicle, or when a PCM is substituted or replaced into this vehicle.
BACK	BACK LT line	1: When the transmission is shifted to R position/mode 0: When the transmission is shifted to any position/mode other than R position/mode
IG	B-CAN lines	1: When the vehicle is in the ON mode 0: When vehicle is in the ACCESSORY mode
C_METER_ILL_STATUS	B-CAN lines	1: When parking lights, or headlights are on 0: When parking lights, or headlights are off
C_METER_ILL_CANCEL	B-CAN lines	1: When the dashlights brightness control knob is more than 90 % brightness with the parking lights turned on 0: When the dashlights brightness control knob is less than 90 % brightness with the parking lights turned on
C_METER_ILL_STEP	B-CAN lines	With the parking lights on, use the dashlights brightness control knob to dim and brighten the gauge. The value changes from 1 (max low) to 22 (max high).
