Front Passenger's Power Window Switch Connector for Inputs and Outputs

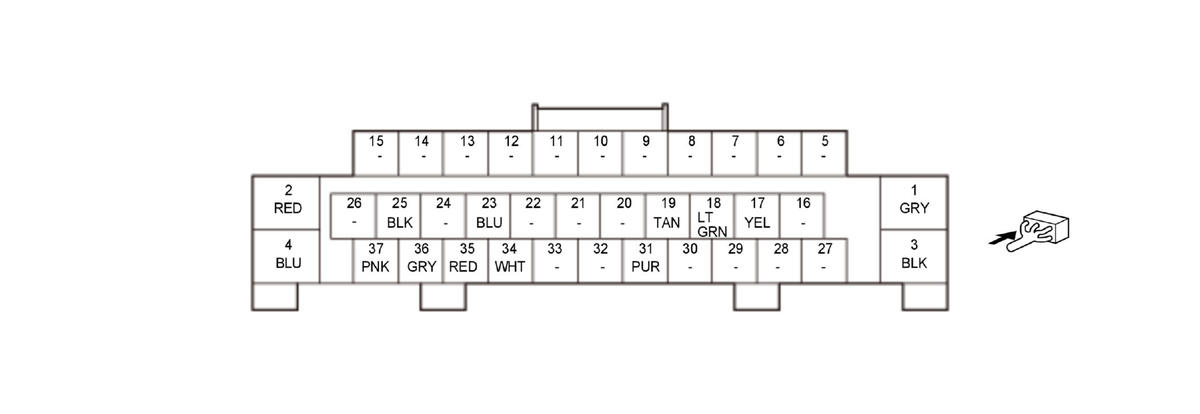

Front Passenger's Power Window Switch 37P Connector (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	+B P/W AS	+B power source	About battery voltage at all times
2	P/W AS MTR DOWN	Drives front passenger's power window motor	With front passenger's power window motor DOWN operation: about battery voltage If none of above conditions are met: less than 0.2 V
3	GND	Ground for front passenger's power window switch	Less than 0.2 V at all times
4	P/W AS MTR UP	Drives front passenger's power window motor	With front passenger's power window motor UP operation: about battery voltage If none of above conditions are met: less than 0.2 V
5	Not used	---	---
6	Not used	---	---
7	Not used	---	---
8	Not used	---	---
9	Not used	---	---
10	Not used	---	---
11	Not used	---	---
12	Not used	---	---
13	Not used	---	---
14	Not used	---	---
15	Not used	---	---
16	Not used	---	---
17	AS MIRROR COM	Detects AS MIRROR COM signal	With vehicle in ON mode and power mirror DOWN or LEFT function: about battery voltage
18	AS MIRROR UD	Detects AS MIRROR UD signal	With vehicle in ON mode and power mirror UP or LEFT function: about battery voltage
19	AS MIRROR LR	Detects AS MIRROR LR signal	With vehicle in ON mode and power mirror DOWN or RIGHT function: about battery voltage
20	Not used	---	---
21	Not used	---	---
22	Not used	---	---
23 *	H/MIRROR AS	Drives right power mirror defogger	With power mirror defogger ON: about battery voltage
24	Not used	---	---
25	P/W AS MTR SGND	Ground for front passenger's power window motor pulser	Less than 0.2 V at all times

*: With mirror defogger

Terminal number	Terminal name	Description	Signal
26	Not used	---	---
27	Not used	---	---
28	Not used	---	---
29	Not used	---	---
30	Not used	---	---
31	P/W AS MTR VCC	Drives front passenger's power window motor hall IC (pulser) unit	With front passenger's power window control unit is wakeup mode and front passenger's power window motor operation: about battery voltage If none of above conditions are met: less than 0.2 V
32	Not used	---	---
33	Not used	---	---
34	LIN (P/W)	Communication line	---
35	P/W AS MTR PLSA	Detects P/W AS MTR PLSA signal	---
36	AS SILCON UNLOCK	Detects AS SILCON UNLOCK signal	With front passenger's door lock knob switch LOCK: about battery voltage With front passenger's door lock knob switch UNLOCK: less than 0.2 V
37	P/W AS MTR PLSB	Detects P/W AS MTR PLSB signal	---

*: With mirror defogger
