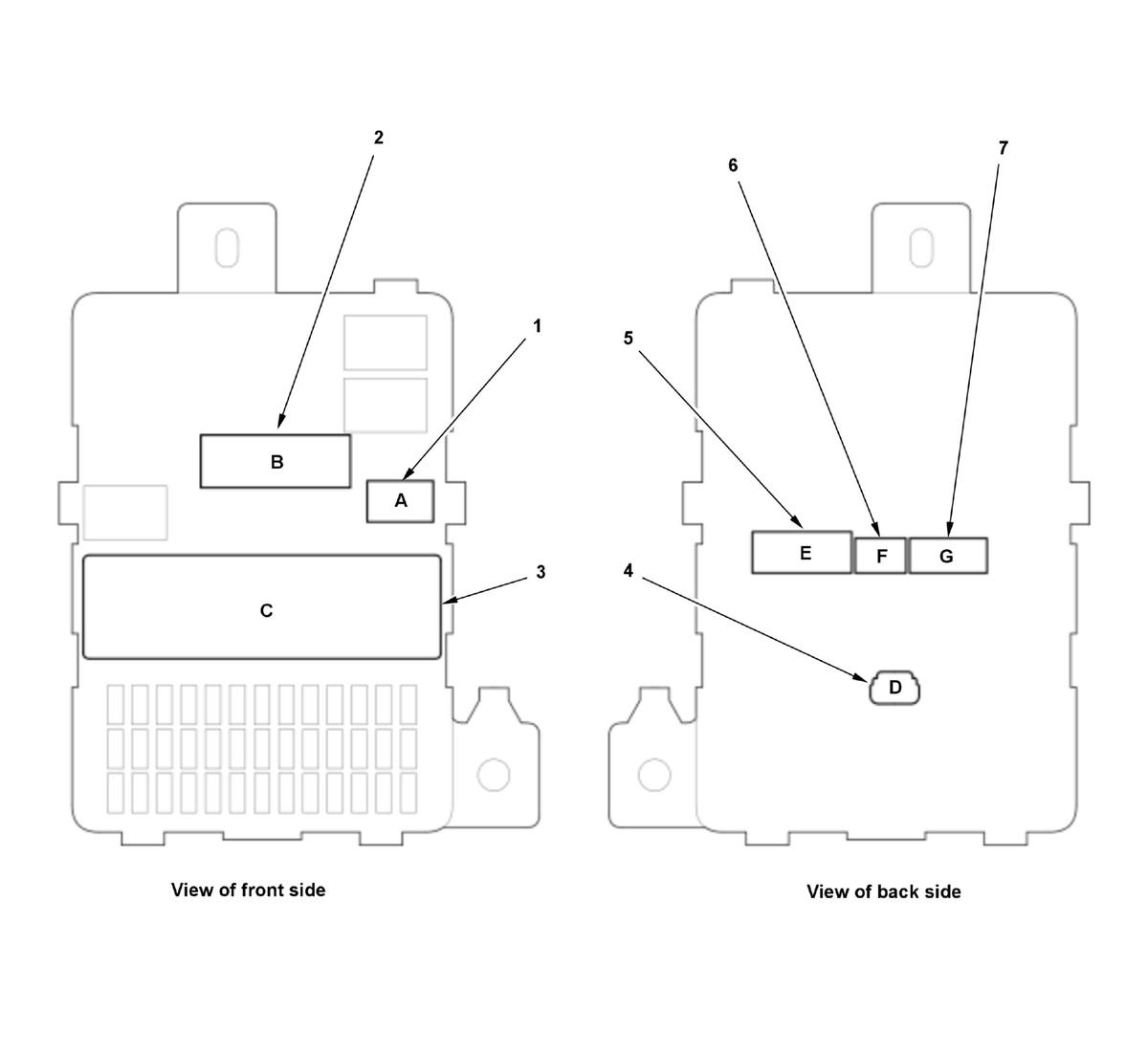

Under-Dash Fuse/Relay Box
Courtesy of HONDA, U.S.A., INC. Under-Dash Fuse/Relay Box Legend
| Socket |
Ref |
Terminal |
Connects to |
Notes |
| A (Optional connector) |
1 |
4 |
Not used |
|
| B |
2 |
22 |
Floor wire harness |
|
| C |
3 |
27 |
Engine compartment wire harness |
|
| D |
4 |
4 |
Dashboard wire harness |
|
| E |
5 |
18 |
Dashboard wire harness |
|
| F |
6 |
12 |
Dashboard wire harness |
|
| G |
7 |
20 |
Dashboard wire harness |
|
