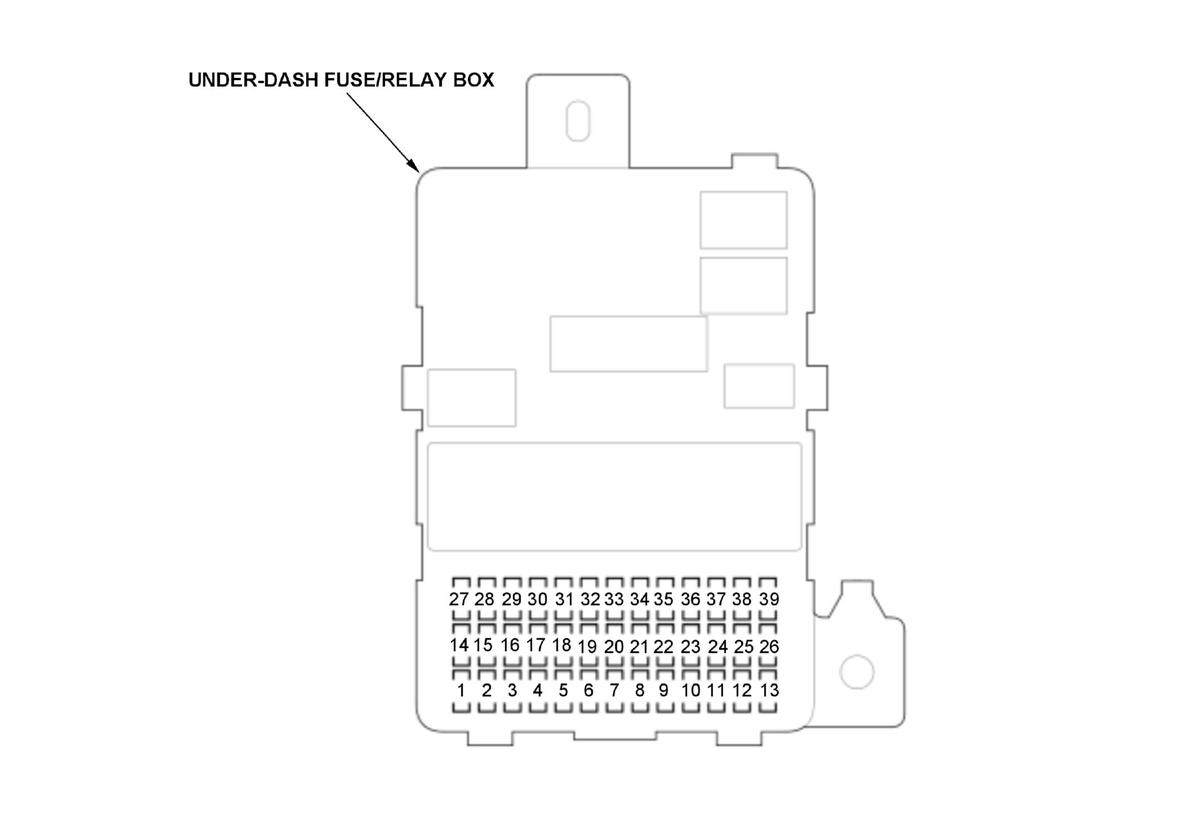

Under-Dash Fuse/Relay Box
Under-Dash Fuse/Relay Box Legend
| Fuse Number | Amps | Component (s) or Circuit (s) Protected | Feature |
|---|---|---|---|
| C1 | 10 A | Body control module, Audio unit *2, SBW shifter control module, Front accessory power socket relay, Telematics control unit *1, Audio-navigation unit *1 | *1: With navigation*2: Without navigation |
| C2 | --- | Not used | |
| C3 | 10 A | Battery condition monitor module | |
| C4 | 5 A | SBW shifter control module | |
| C5 | 10 A | Acoustic vehicle alerting control unit, Acoustic vehicle alerting control unit *1 (via the acoustic vehicle alerting system off switch), Acoustic vehicle alerting system off switch *1, Active noise cancellation unit, Front passenger's airbag cutoff indicator *5, Brake light relay circuit (built into the relay circuit board), Telematics control unit *3, Multipurpose camera unit *4, Millimeter wave radar *4, Front seat heater control unit *2Left side BSI radar unit *6, Right side BSI radar unit *6 | *1: With acoustic vehicle alerting system off switch*2: With seat heater*3: With navigation*4: With multipurpose camera unit*5: KA and KC models*6: With BSI |
| C6 | 5 A | Park pawl actuator driver unit | |
| C7 | 10 A | Can gateway, Gauge control module, Relay control module, Reverse relay circuit (2 wires) (built in under-dash fuse/relay box) | *: With automatic dimming inside mirror |
| Via the reverse relay circuit: Left back-up light, Right back-up light, Body control module, Automatic dimming inside mirror * |
|||
| C8 | 15 A | PGM-FI main relay 2, Fuel pump (via the PGM-FI main relay 2), Body control module, No. C11 fuses in the under-dash fuse/relay box | |
| C9 | 10 A | Blower motor relay, Rear window defogger relay, Radiator fan relay, PTC heater A relay, PTC heater B relay, Automatic dimming inside mirror *1Climate control unit, Climate control panel, Power window master switch, Power mirror switch, Power window master switch (3 wires) (via the power mirror switch), Left power mirror actuator (3 wires) (via the power mirror switch), Mirror defogger switch *2, Left rear seat heater switch *3, Right rear seat heater switch *3Front seat heater relay circuit (built into the under-dash fuse/relay box) *4 | *1: With automatic dimming inside mirror*2: With mirror defogger*3: With rear seat heater*4: With seat heater |
| C10 | --- | Not used | |
| C11 | 5 A | PCM | |
| C12 | 10 A | Front passenger's door lock actuator, Right rear passenger's door lock actuator, | |
| C13 | 10 A | Left rear passenger's door lock actuator | |
| C14 | 20 A | Left rear power window switch, Left rear power window motor (2 wires) (via the left rear power window switch) | |
| C15 | 20 A | Front passenger's power window switch | |
| C16 | 20 A | Trunk lid release actuator relay circuit (2 wires) (built in under-dash fuse/relay box), Power door lock relay circuit (DR UNLOCK) (2 wires) (built in under-dash fuse/relay box), Power door lock relay circuit (UNLOCK) (2 wires) (built in under-dash fuse/relay box), Power door lock relay circuit (LOCK) (2 wires) (built in under-dash fuse/relay box), Trunk lid release actuator (via the trunk lid release actuator relay circuit), No. C12, No. C25, and No. C38, fuses in the under-dash fuse relay box (via the power door lock relay circuit (LOCK)), No. C13, and No. C26, fuses in the under-dash fuse relay box (via the power door lock relay circuit (UNLOCK)), No. C39 fuse in the under-dash fuse relay box (via the power door lock relay circuit (DR UNLOCK)) | |
| C17 | 7.5 A | PCM | |
| C18 | --- | Not used | |
| C19 | 20 A | Moonroof motor-control unit | |
| C20 | 5 A | Electric servo brake control unit/pedal feel simulator | |
| C21 | 10 A | Brake pedal position switch, Secondary HO2S (sensor 2), MAF sensor/IAT sensor 1, PCM (via the brake pedal position switch), Electric A/C compressor | |
| C22 | 7.5 A | Body control module | |
| C23 | --- | Not used | |
| C24 | --- | Not used | |
| C25 | 10 A | Driver's door lock actuator, Fuel fill door lock actuator * | *: Without fuel fill door opener solenoid |
| C26 | 10 A | Front passenger's door lock actuator, Right rear passenger's door lock actuator | |
| C27 | 20 A | Right rear power window switch, Right rear power window motor (via the right rear power window switch) | |
| C28 | 20 A | Power window master switch | |
| C29 | 20 A | Front accessory power socket relay, Front accessory power socket (via the front accessory power socket relay) | |
| C30 | 10 A | Electric parking brake switch, Audio remote-HFL switch (via the cable reel) | |
| C31 * | 20 A | Driver's power seat adjustment switch, Rear up-down motor (2 wires) (via the driver's power seat adjustment switch), Recline motor (2 wires) (via the driver's power seat adjustment switch) | *: With driver's power seat |
| C32 | 20 A | Front seat heater relay circuit * (built into the under-dash fuse relay box), Front seat heater control unit * (via the front seat heater relay circuit) | *: With seat heater |
| C33 * | 20 A | Driver's power seat adjustment switch, Front up-down motor (2 wires) (via the driver's power seat adjustment switch), Slide motor (2 wires) (via the driver's power seat adjustment switch) | *: With driver's power seat |
| C34 | 10 A | EPS control unit, VSA modulator-control unit | |
| C35 | 10 A | SRS unit | |
| C36 | --- | Not used | |
| C37 | 15 A | Battery fan relay, High voltage battery module fan (via the battery fan relay) | |
| C38 | 10 A | Left rear passenger's door lock actuator | |
| C39 | 10 A | Driver's door lock actuator, Fuel fill door lock actuator * | *: Without fuel fill door opener solenoid |
