Gear Unit Control System Circuit Diagram

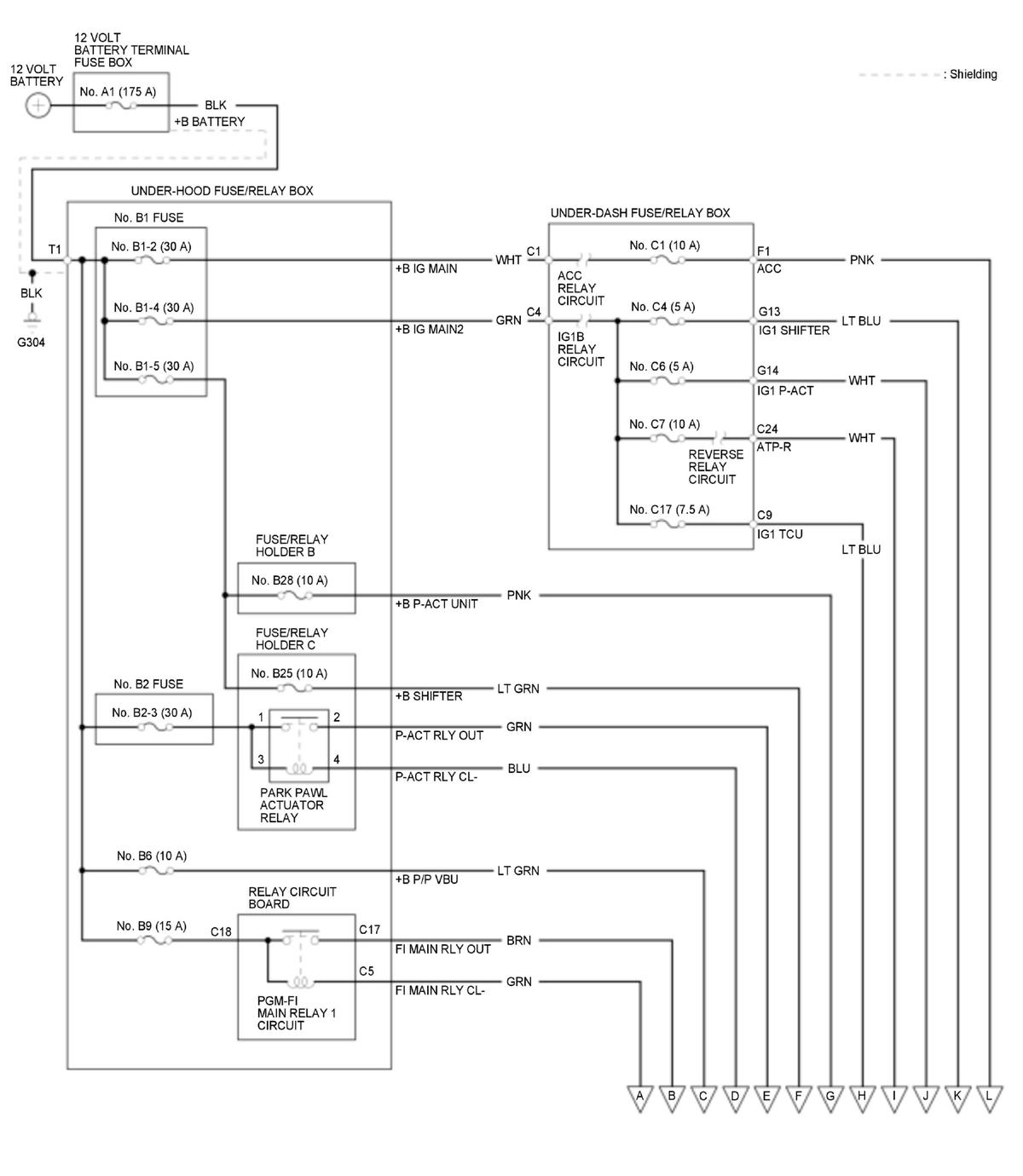

GHH382449Courtesy of HONDA, U.S.A., INC.

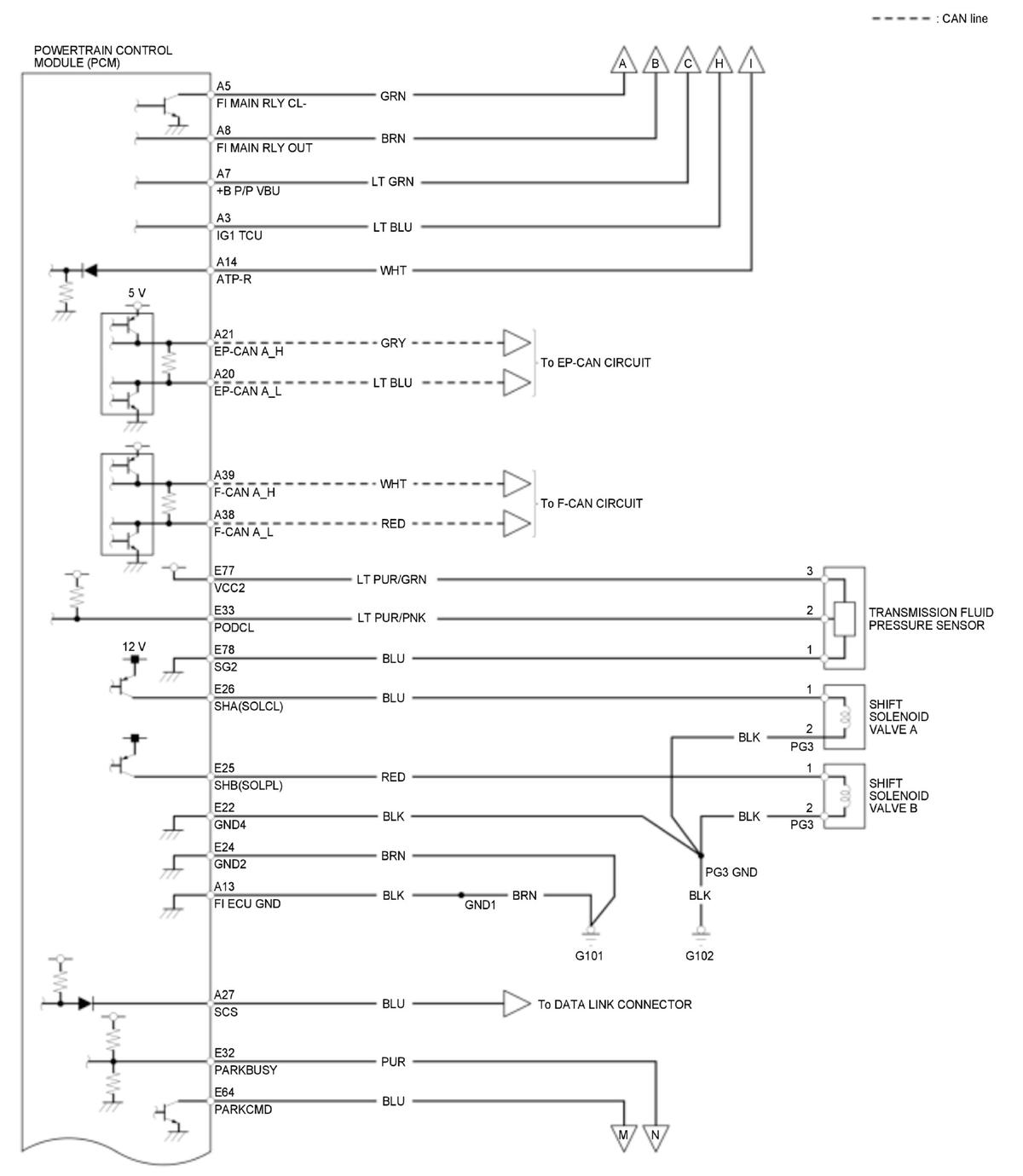

GHH382450Courtesy of HONDA, U.S.A., INC.

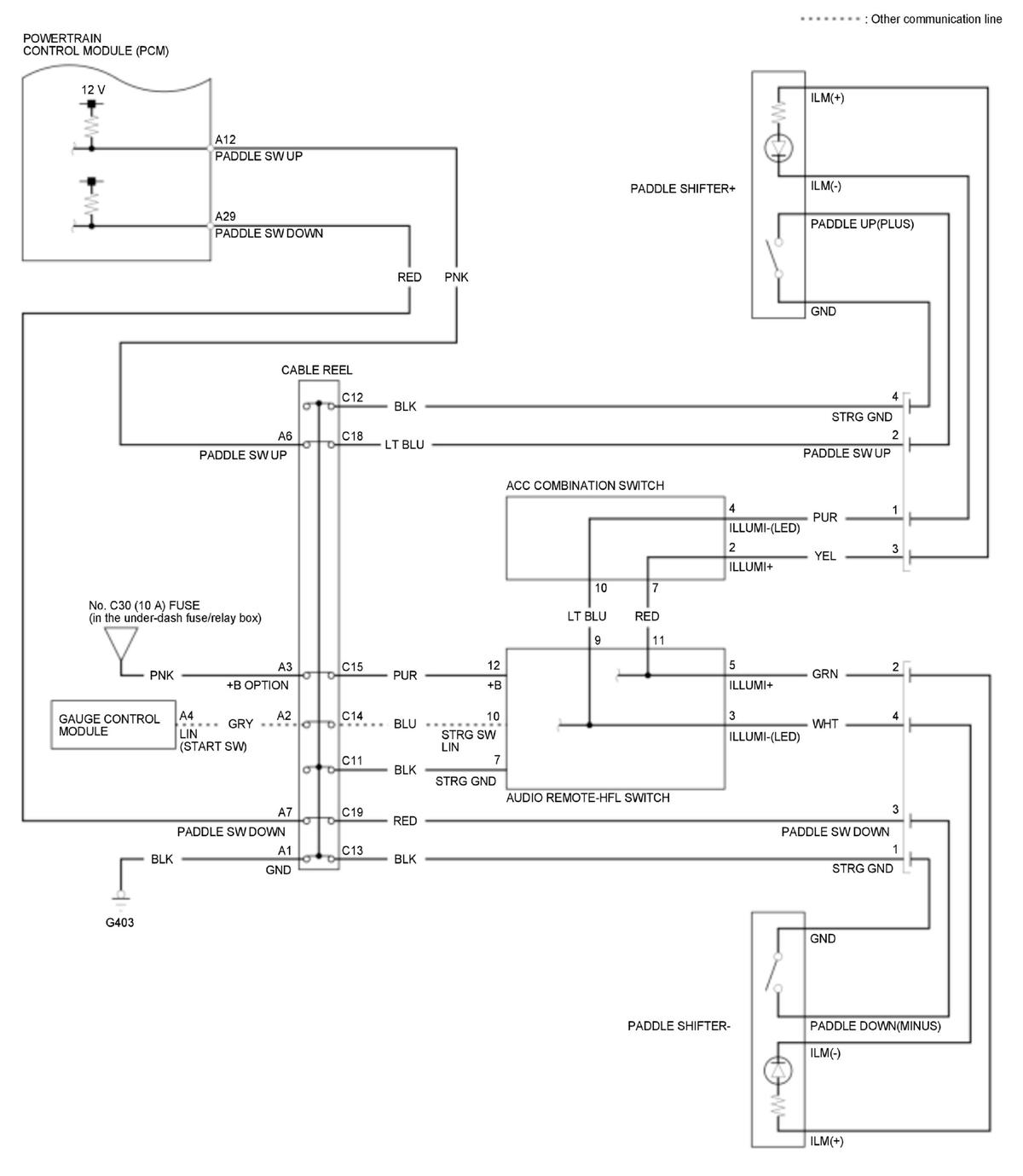

GHH382451Courtesy of HONDA, U.S.A., INC.

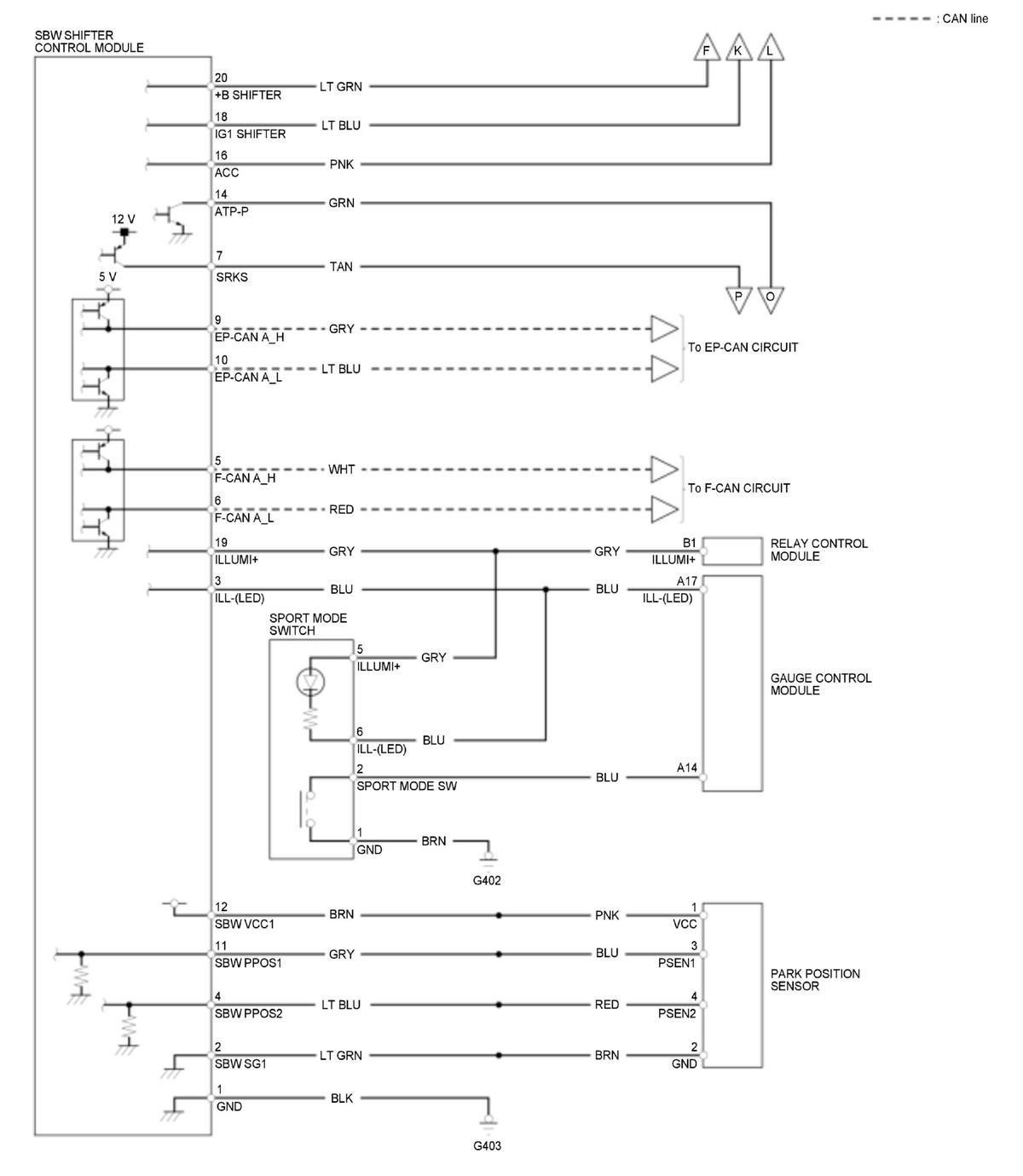

GHH382452Courtesy of HONDA, U.S.A., INC.

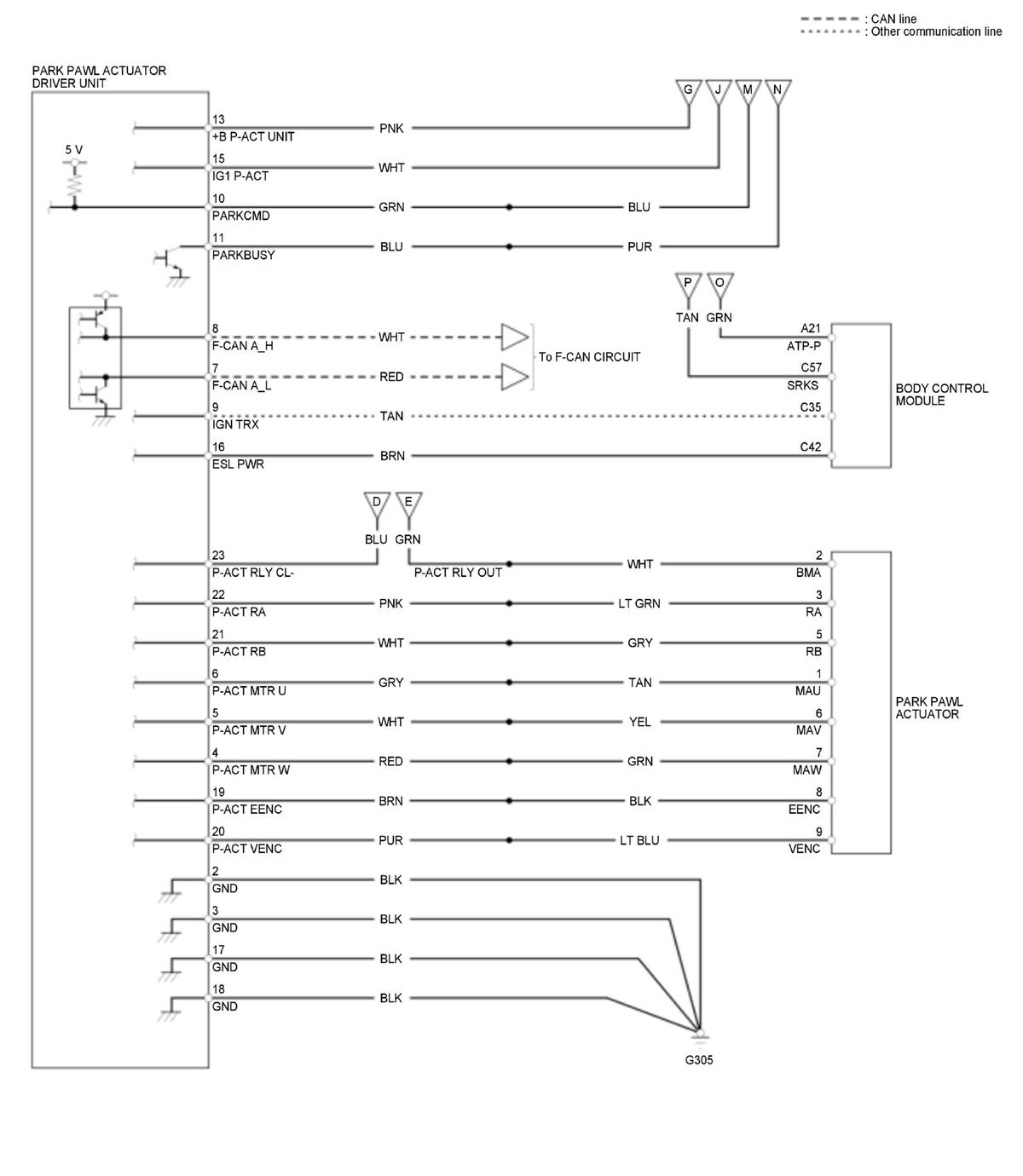

GHH382453Courtesy of HONDA, U.S.A., INC.
