Trunk Lid Outer Handle Switch Removal, Installation and Test: Test

  1. Trunk Lid Outer Handle Switch - Test
    GHH387983GHH387984Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH387983GHH387984Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

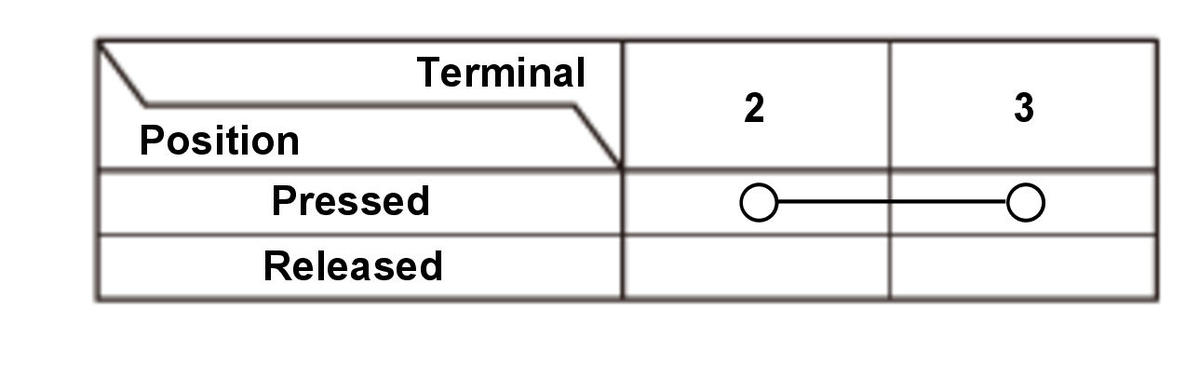

    		 1. Check for continuity between the terminals in each switch position according to the table.

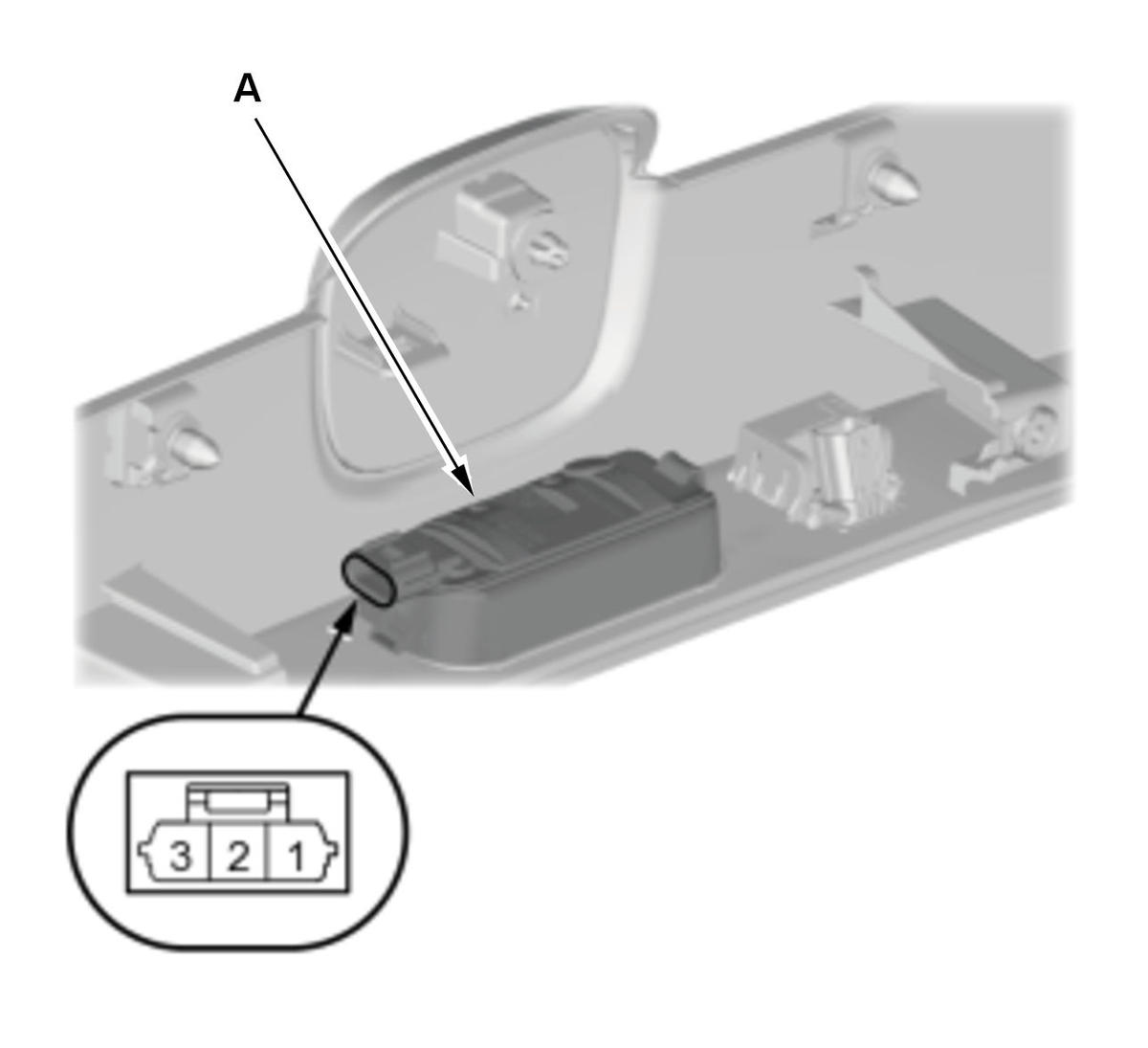

    2. If the continuity is not as specified, replace the license plate light

    (A).
