Audio-Navigation Unit Connector for Inputs and Outputs
| Connector Index |
|---|
| Audio-Navigation Unit Connector A (24P) |
| Audio-Navigation Unit Connector C (6P) |
| Audio-Navigation Unit Connector D (16P) |
| Audio-Navigation Unit Connector E (36P) |
| Audio-Navigation Unit Connector F (36P) |
| Audio-Navigation Unit Connector G (10P) |
| Audio-Navigation Unit Connector H (6P) |
| Audio-Navigation Unit Connector J (2P) |
| Audio-Navigation Unit Connector K (2P) |
| Audio-Navigation Unit Connector M (10P) |
| Audio-Navigation Unit Connector N (2P) |

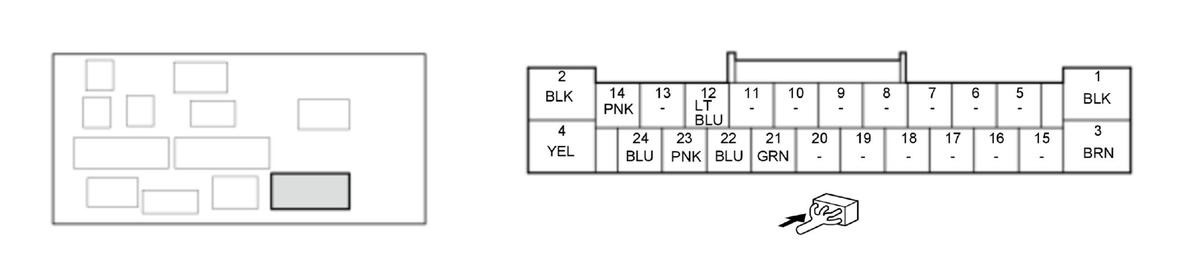

Audio-Navigation Unit Connector A (24P) (female terminals)
Audio-Navigation Unit Connector A (24P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| A1 | GND | Ground for audio-navigation unit (G405) |
| A2 | GND | Ground for audio-navigation unit (G405) |
| A3 | +B AUDIO | Continuous power source |
| A4 | +B AUDIO SUB | Continuous power source |
| A5 | Not used | --- |
| A6 | Not used | --- |
| A7 | Not used | --- |
| A8 | Not used | --- |
| A9 | Not used | --- |
| A10 | Not used | --- |
| A11 | Not used | --- |
| A12 | K-LINE | Detects scan tool signal (serial data) |
| A13 | Not used | --- |
| A14 | B-CAN_H | Communication signal |
| A15 | Not used | --- |
| A16 | Not used | --- |
| A17 | Not used | --- |
| A18 | Not used | --- |
| A19 | Not used | --- |
| A20 | Not used | --- |
| A21 | SWD+B | Outputs signal for stereo amplifier and active noise cancellation unit switching on/off |
| A22 | VSP | Inputs vehicle speed pulse |
| A23 | ACC | Power source for accessories |
| A24 | B-CAN_L | Communication signal |

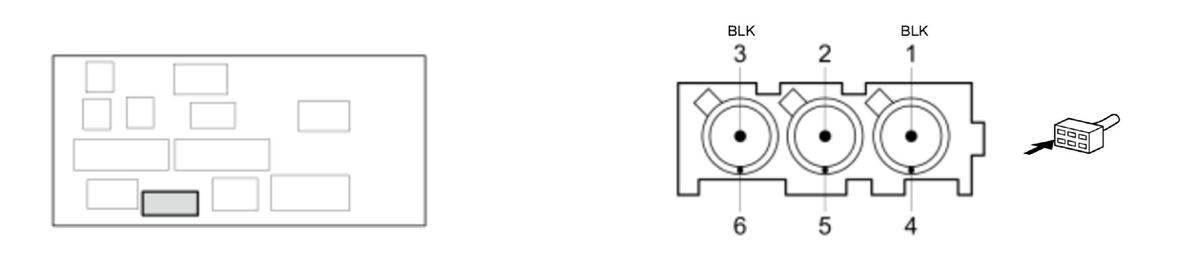

Audio-Navigation Unit Connector C (6P) (female terminals)
Audio-Navigation Unit Connector C (6P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| C1 | SPDIF2 SIG | Communication signal for stereo amplifier |
| C2 | Not used | --- |
| C3 | SPDIF1 SIG | Communication signal for tuner unit |
| C4 | SH (SPDIF2) | Shield for terminals No. 1 |
| C5 | Not used | --- |
| C6 | SH (SPDIF1) | Shield for terminals No. 3 |

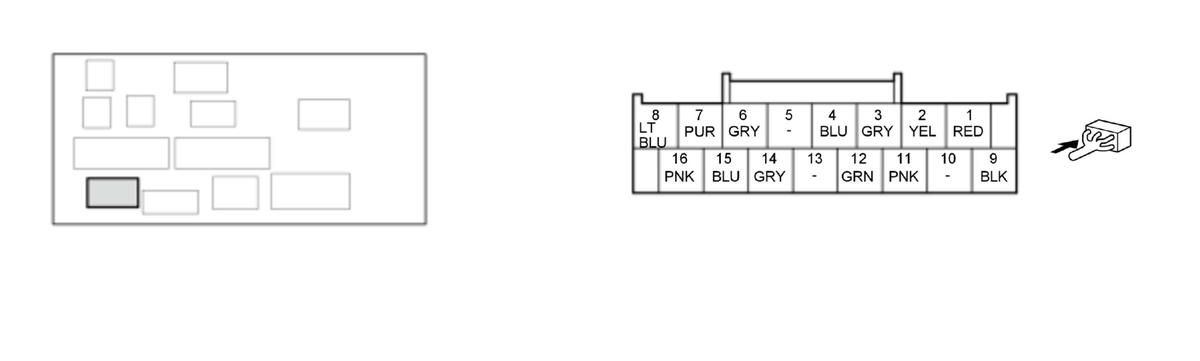

Audio-Navigation Unit Connector D (16P) (female terminals)
Audio-Navigation Unit Connector D (16P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| D1 | TUNER 6V | Power source for tuner unit |
| D2 | TUNER 9V | Power source for tuner unit |
| D3 | AUX NAVI SH | Shield for terminals No. 4, No. 11, and No. 12 |
| D4 | AUX NAVI GND | Basis ground for terminal No. 11 and No. 12 |
| D5 | Not used | --- |
| D6 | AMP RS485 SH | Shield for terminals No. 7 and No. 8 |
| D7 | RS485+ | Communication signal for stereo amplifier |
| D8 | RS485- | Communication signal for stereo amplifier |
| D9 | TUNER GND | Ground for tuner unit |
| D10 | Not used | --- |
| D11 | AUX BEEP | Outputs sound signal for beep |
| D12 | AUX NAVI | Outputs sound signal |
| D13 | Not used | --- |
| D14 | TUNER RS485 SH | Shield for terminals No. 15 and No. 16 |
| D15 | TUNER RS485+ | Communication signal for tuner unit |
| D16 | TUNER RS485- | Communication signal for tuner unit |

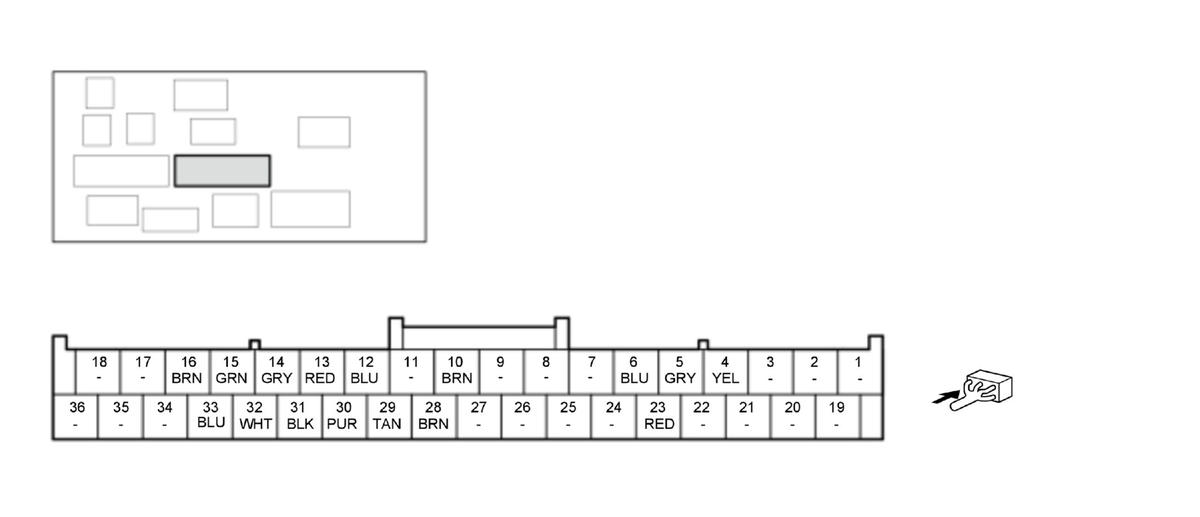

Audio-Navigation Unit Connector E (36P) (female terminals)
Audio-Navigation Unit Connector E (36P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| E1 | Not used | --- |
| E2 | Not used | --- |
| E3 | Not used | --- |
| E4 | MIC CONT-TEL | Outputs telematics control unit directivity switching signal |
| E5 | MIC SIG SH | Shield for terminals No. 6 and No. 23 |
| E6 | MIC GND-HU | Ground for front HFL-ANC microphone |
| E7 | Not used | --- |
| E8 | Not used | --- |
| E9 | Not used | --- |
| E10 | PARK BRAKE SW | Detects parking brake on signal |
| E11 | Not used | --- |
| E12 | DISP CONT | Outputs signal for center display unit switching on/off |
| E13 | CAMERA GND | Communication signal |
| E14 | SH CAMERA | Shield for terminals No. 13, No. 31, and No. 32 |
| E15 | CAMERA BIT0 | Outputs mode select signal for rearview camera |
| E16 | CAMERA ADPT | Outputs mode select signal for rearview camera |
| E17 | Not used | --- |
| E18 | Not used | --- |
| E19 | Not used | --- |
| E20 | Not used | --- |
| E21 | Not used | --- |
| E22 | Not used | --- |
| E23 | MIC SIG-HU | Inputs sound signal from telematics control unit |
| E24 | Not used | --- |
| E25 | Not used | --- |
| E26 | Not used | --- |
| E27 | Not used | --- |
| E28 | PARK BRAKE SW | Detects parking brake on signal |
| E29 | F-CAN C_H | Communication signal |
| E30 | F-CAN C_L | Communication signal |
| E31 | CAMERA VCC | Power source for rearview camera |
| E32 | CAMERA V | Inputs NTSC video signal from rearview camera |
| E33 | CAMERA BIT1 | Outputs mode select signal for rearview camera |
| E34 | Not used | --- |
| E35 | Not used | --- |
| E36 | Not used | --- |

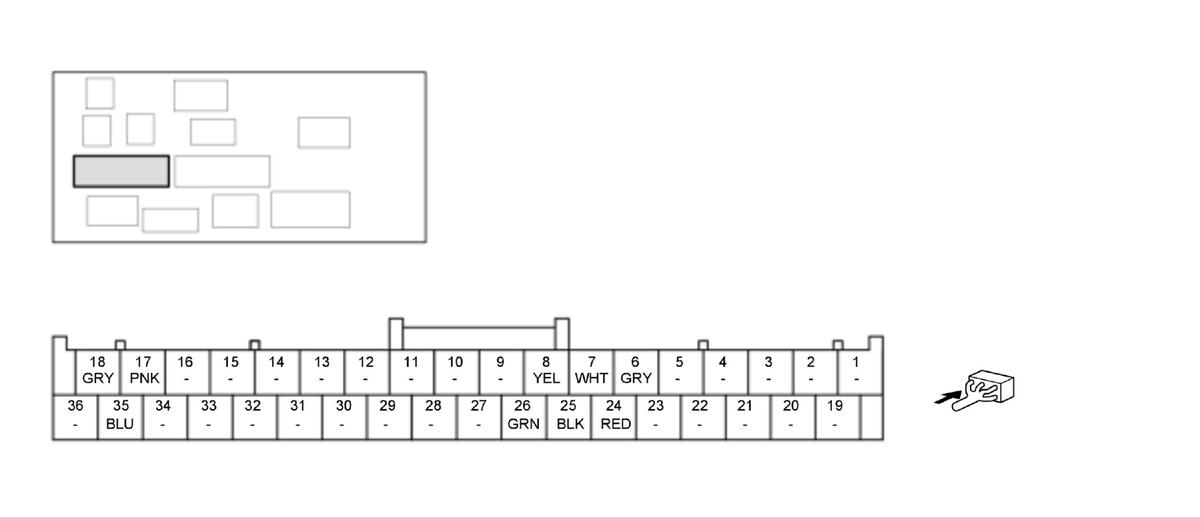

Audio-Navigation Unit Connector F (36P) (female terminals)
Audio-Navigation Unit Connector F (36P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| F1 | Not used | --- |
| F2 | Not used | --- |
| F3 | Not used | --- |
| F4 | Not used | --- |
| F5 | Not used | --- |
| F6 | SH LWC CAM | Shield for terminals No. 7, No. 24, No. 25, and No. 26 |
| F7 | LWC CAM VGND | Ground for LaneWatch camera |
| F8 | LANEWATCH SW | Detects LaneWatch on/off signal from LaneWatch switch |
| F9 | Not used | --- |
| F10 | Not used | --- |
| F11 | Not used | --- |
| F12 | Not used | --- |
| F13 | Not used | --- |
| F14 | Not used | --- |
| F15 | Not used | --- |
| F16 | Not used | --- |
| F17 | TEL AUDIO- | Outputs sound prompts |
| F18 | SH TELEM AUDIO | Shield for terminals No. 17 and No. 35 |
| F19 | Not used | --- |
| F20 | Not used | --- |
| F21 | Not used | --- |
| F22 | Not used | --- |
| F23 | Not used | --- |
| F24 | LWC CAM VCC | Power source for LaneWatch camera |
| F25 | LWC CAM VID | Inputs video signal from LaneWatch camera |
| F26 | LWC UART AS | Communication signal for LaneWatch camera |
| F27 | Not used | --- |
| F28 | Not used | --- |
| F29 | Not used | --- |
| F30 | Not used | --- |
| F31 | Not used | --- |
| F32 | Not used | --- |
| F33 | Not used | --- |
| F34 | Not used | --- |
| F35 | TEL AUDIO+ | Outputs sound prompts |
| F36 | Not used | --- |

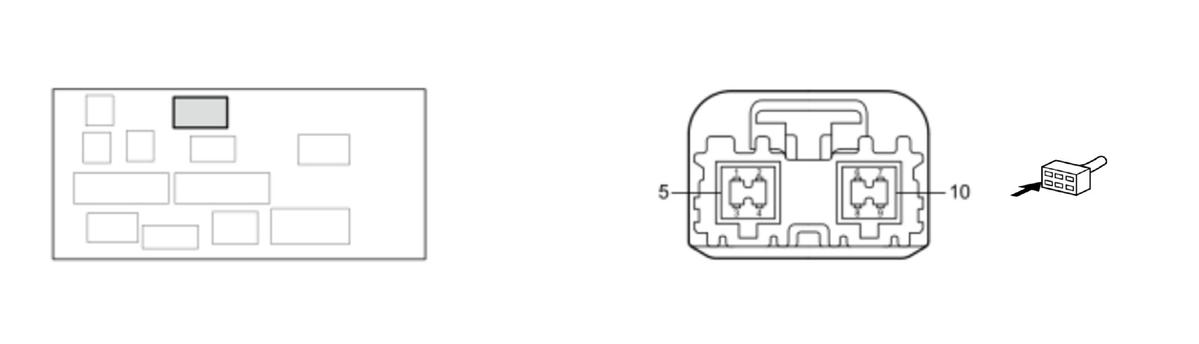

Audio-Navigation Unit Connector G (10P) (female terminals)
Audio-Navigation Unit Connector G (10P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| G1 | USB1 GND | Ground for USB port A |
| G2 | USB1 VBUS | Outputs power source for USB port A |
| G3 | USB1 DATA+ | Communication signal |
| G4 | USB1 DATA- | Communication signal |
| G5 | USB1 SH | Shield for terminals No. 1, No. 2, No. 3, and No. 4 |
| G6 | USB2 GND | Ground for USB port B |
| G7 | USB2 VBUS | Outputs power source for USB port B |
| G8 | USB2 DATA+ | Communication signal |
| G9 | USB2 DATA- | Communication signal |
| G10 | USB2 SH | Shield for terminals No. 6, No. 7, No. 8, and No. 9 |

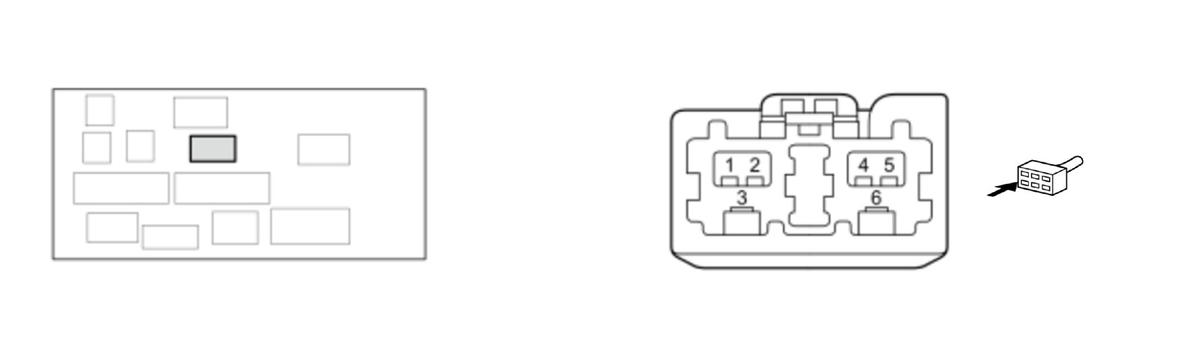

Audio-Navigation Unit Connector H (6P) (female terminals)
Audio-Navigation Unit Connector H (6P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| H1 | LVDS2+ | Communication signal for gauge control module |
| H2 | LVDS2- | Communication signal for gauge control module |
| H3 | LVDS2 SH | Shield for terminals No. 1 and No. 2 |
| H4 | LVDS1+ | Communication signal for center display unit |
| H5 | LVDS1- | Communication signal for center display unit |
| H6 | LVDS1 SH | Shield for terminals No. 4 and No. 5 |

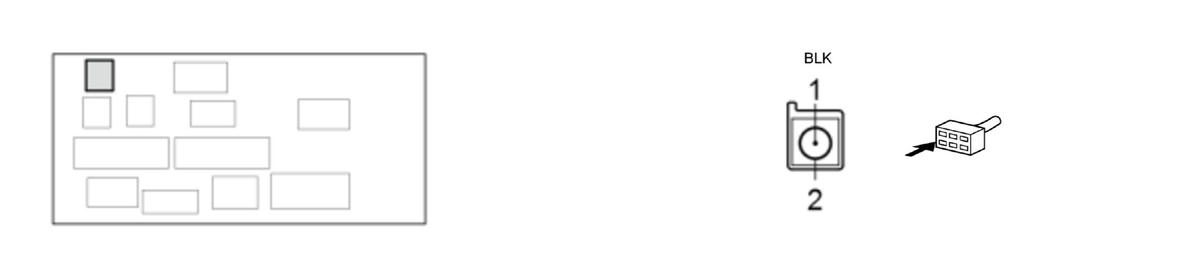

Audio-Navigation Unit Connector J (2P) (female terminals)
Audio-Navigation Unit Connector J (2P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| J1 | GPS | Inputs GPS signal |
| J2 | SH (GPS) | Shield for terminal No. 1 |

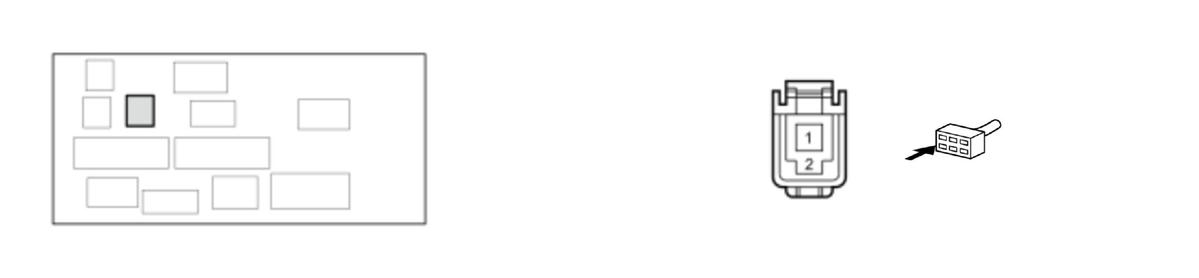

Audio-Navigation Unit Connector K (2P) (female terminals)
Audio-Navigation Unit Connector K (2P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| K1 | Wi-Fi | Inputs Wi-Fi signal |
| K2 | SH (Wi-Fi) | Shield for terminal No. 1 |

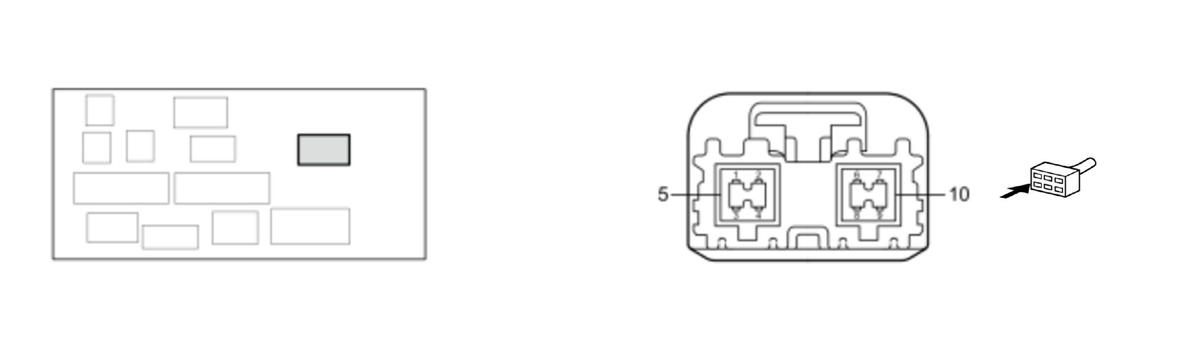

Audio-Navigation Unit Connector M (10P) (female terminals)
Audio-Navigation Unit Connector M (10P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| M1 | Not used | --- |
| M2 | Not used | --- |
| M3 | Not used | --- |
| M4 | Not used | --- |
| M5 | Not used | --- |
| M6 | TEL USB GND | Ground for USB |
| M7 | TEL USB VBUS | Outputs power source for USB |
| M8 | TEL USB DATA+ | Communication signal |
| M9 | TEL USB DATA- | Communication signal |
| M10 | TEL USB SH | Shield for terminals No. 6, No. 7, No. 8, and No. 9 |

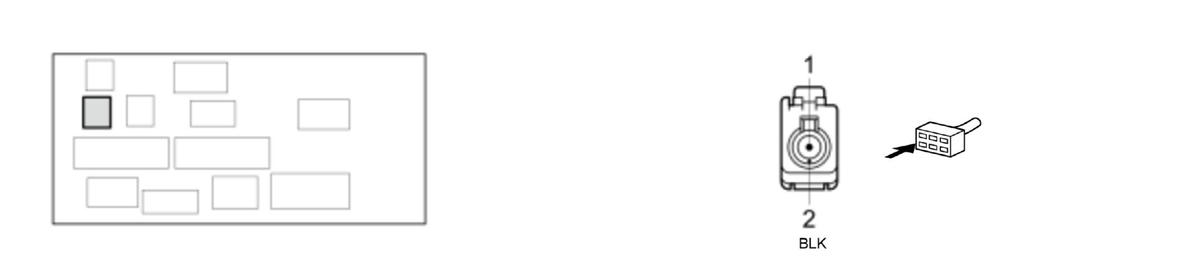

Audio-Navigation Unit Connector N (2P) (female terminals)
Audio-Navigation Unit Connector N (2P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| N1 | SAT/TER | Inputs satellite/terrestrial signal |
| N2 | SH (SAT/TER) | Shield for terminal No. 1 |
