Power Window Master Switch Connector for Inputs and Outputs

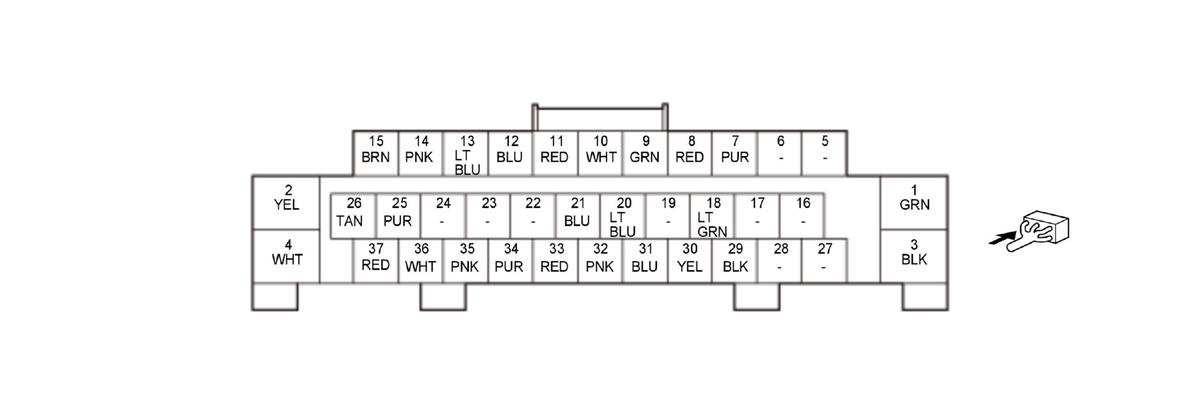

Power Window Master Switch 37P Connector (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	P/W DR MTR DOWN	Drives driver's power window motor	With driver's power window motor DOWN operation: about battery voltage If none of the above conditions are met: less than 0.2 V
2	P/W DR MTR UP	Drives driver's power window motor	With driver's power window motor UP operation: about battery voltage If none of the above conditions are met: less than 0.2 V
3	GND	Ground for power window master switch	Less than 0.2 V at all times
4	+B P/W DR	+B power source	About battery voltage at all times
5	Not used	---	---
6	Not used	---	---
7	DR KEY CYL LOCK	Detects DR KEY CYL LOCK signal	With driver's door key cylinder switch UNLOCK: about battery voltage With driver's door key cylinder switch LOCK: less than 0.2 V
8	DR KEY CYL UNLOCK	Detects DR KEY CYL UNLOCK signal	With driver's door key cylinder switch LOCK: about battery voltage With driver's door key cylinder switch UNLOCK: less than 0.2 V
9	TRUNK OPEN SW(INTR)	Detects TRUNK OPEN SW(INTR) signal	With trunk lid opener switch ON: less than 0.2 V With trunk lid opener switch OFF: about battery voltage
10	MIRROR R COM	Detects MIRROR R COM signal	With vehicle in ON mode and right power mirror DOWN or LEFT function: about battery voltage
11	MIRROR R LR	Detects MIRROR R LR signal	With vehicle in ON mode and right power mirror DOWN or RIGHT function: about battery voltage
12	MIRROR UD	Detects MIRROR UD signal	With vehicle in ON mode and power mirror UP or LEFT function: about battery voltage
13	P/W RR L SW RLY UP	Drives left rear power window motor	With left rear power window moving to UP using power window master switch: about battery voltage If none of above conditions are met: less than 0.2 V
14	P/W RR L SW RLY DOWN	Drives left rear power window motor	With left rear power window moving to DOWN using power window master switch: about battery voltage If none of above conditions are met: less than 0.2 V
15 *	H/MIRROR DR	Drives left power mirror defogger	With mirror defogger ON: about battery voltage
16	Not used	---	---

*: With mirror defogger

Terminal number	Terminal name	Description	Signal
17	Not used	---	---
18	IG2 OPTION	IG2 power source	With vehicle in ON mode: about battery voltage
19	Not used	---	---
20	DR SILCON UNLOCK	Detects DR SILCON UNLOCK signal	With driver's door lock knob switch LOCK: about battery voltage With driver's door lock knob switch UNLOCK: less than 0.2 V
21	DR SILCON LOCK	Detects DR SILCON LOCK signal	With driver's door lock knob switch UNLOCK: about battery voltage With driver's door lock knob switch LOCK: less than 0.2 V
22	Not used	---	---
23	Not used	---	---
24	Not used	---	---
25	P/W RR R SW RLY DOWN	Drives right rear power window motor	With right rear power window moving to DOWN using power window master switch: about battery voltage If none of above conditions are met: less than 0.2 V
26	P/W RR R SW RLY UP	Drives right rear power window motor	With right rear power window moving to UP using power window master switch: about battery voltage If none of above conditions are met: less than 0.2 V
27	Not used	---	---
28	Not used	---	---
29	GND	Ground for power window master switch	Less than 0.2 V at all times
30	P/W SW ILLUMI	Outputs P/W SW ILLUMI signal	With combination light switch PARKING: about battery voltage With combination light switch OFF: less than 0.2 V
31	B-CAN_L	Communication line	---
32	B-CAN_H	Communication line	---
33	P/W DR MTR PLSA	Detects P/W DR MTR PLSA signal	---
34	P/W DR MTR VCC	Drives driver's power window motor hall IC (pulser) unit	With door multiplex control unit is wake-up mode and driver's power window motor operation: about battery voltage If none of above conditions are met: less than 0.2 V
35	P/W DR MTR PLSB	Detects P/W DR MTR PLSB signal	---
36	LIN(P/W)	Communication line	---
37	+B BACK UP	+B power source	About battery voltage at all times

*: With mirror defogger
