Power Windows System Description

Basic Control/Function

• Manual Up/Down Function

  The 1-step operation of the power window switch moves the window up or down. This is available during the vehicle in the ON mode or the vehicle OFF operation.

• Auto Up/Down Function

  The 2-step operation of the power window switch moves the window up or down. This is available during the vehicle in the ON mode or the vehicle OFF operation.

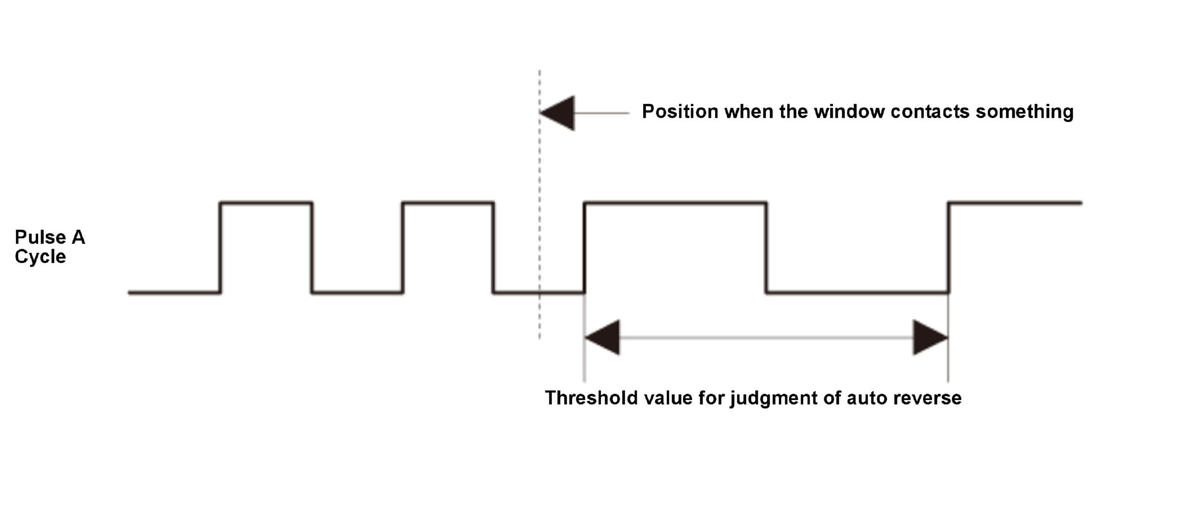

Auto Reverse Power Window Function

When an object is detected during the auto up operation, the window stops closing and reverses about 70 mm (2.76 in). If the window is less than halfway opened (about 220 mm (8.66 in)), it will reverse to the half open position (about 220 mm (8.66 in)). In manual operation, this function is active only during the vehicle OFF operation. This function is activated based on the calculation of the rotation speed and load change of the motor's pulse A.

Courtesy of HONDA, U.S.A., INC.

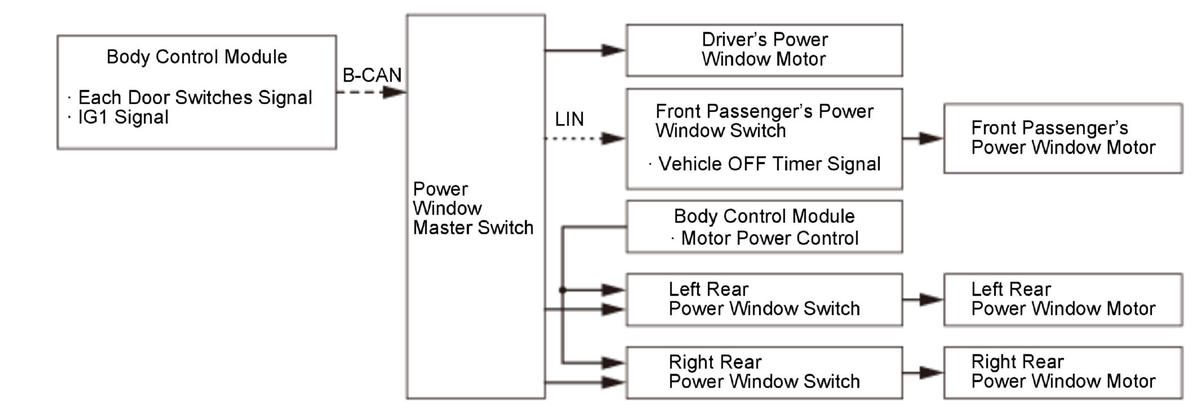

Vehicle OFF Operation

For about 10 minutes after the vehicle is turned to the OFF (LOCK) mode, the window's open/close operation with the power window switches is available.

Courtesy of HONDA, U.S.A., INC.

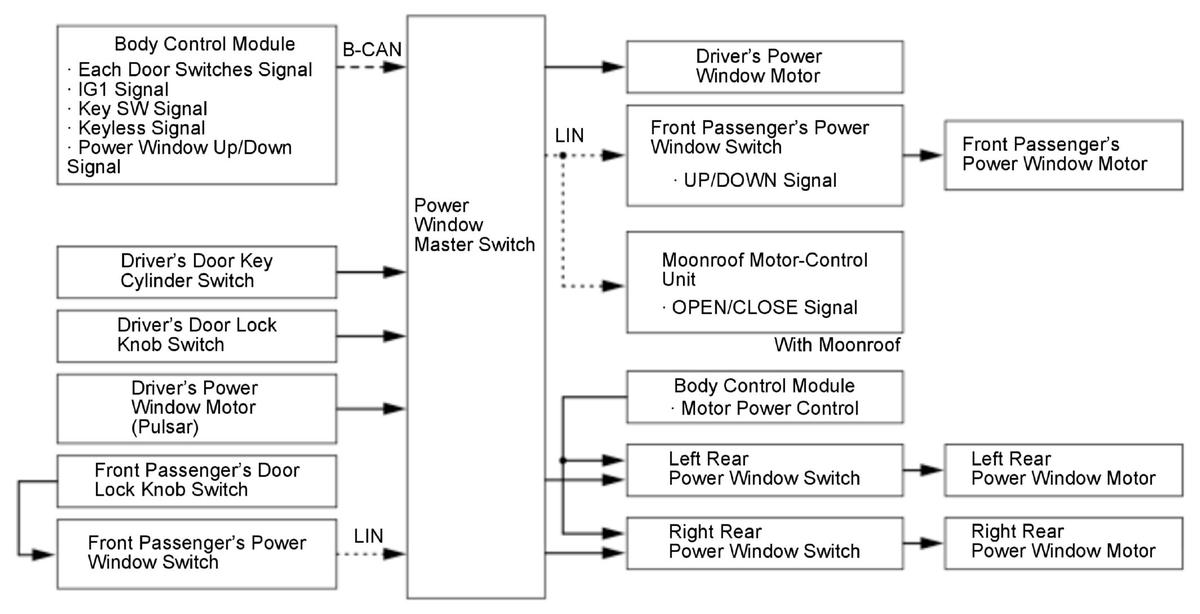

Keyless/Key Cylinder Operation

By pressing and holding the UNLOCK button of the remote a second time, the windows and moonroof open. The windows and moonroof stop moving when the UNLOCK button is released.

With the key inserted in the driver's door key cylinder, turn the key a second time holding it (unlock to open, lock to close). The windows and moonroof stop moving when the key is released.

Courtesy of HONDA, U.S.A., INC.

Failsafe Function

When a failure occurs in the inputs of the motor pulses and power window switches, the failsafe function stops the control of each function.
