Body Control Module Connector for Inputs and Outputs (2018 2019 2020 2021 2022 2023 2024)
| Connector Index |
|---|
| Body Control Module Connector A (14P) |
| Body Control Module Connector B (36P) |
| Body Control Module Connector C (28P) |
| Body Control Module Connector D (40P) |
| Body Control Module Connector E (24P) |
| Body Control Module Connector F (36P) |
| Body Control Module Connector G (32P) |

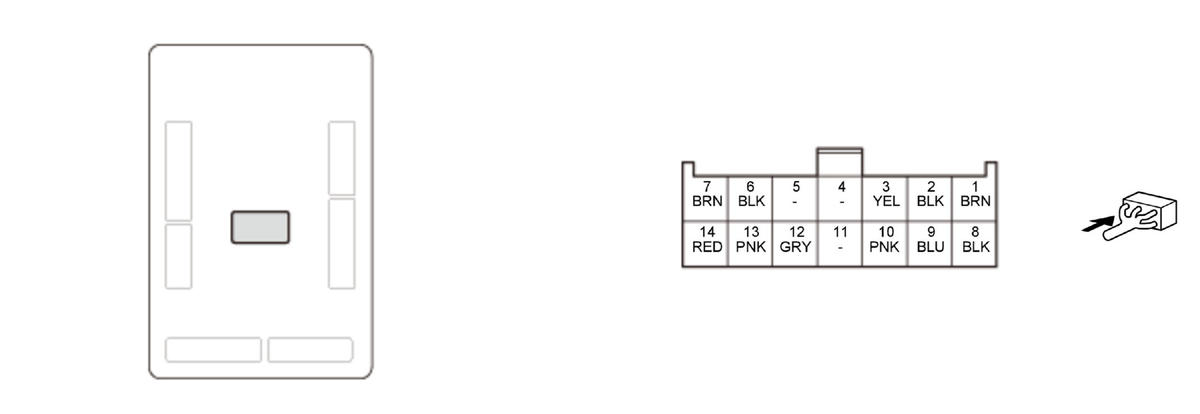

Body Control Module Connector A (14P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | +B HAZARD | Power source for IPD | About battery voltage at all times |
| 2 | GND | Ground for body control module | Less than 0.2 V at all times |
| 3 | INTR LT CUT RLY CL- | Outputs INTR LT CUT RLY CL- signal | With interior lights are ON: less than 0.2 VWith interior lights are OFF: about battery voltage |
| 4 | Not used | --- | --- |
| 5 | Not used | --- | --- |
| 6 | GND | Ground for body control module | Less than 0.2 V at all times |
| 7 | RR WIPER MTR | Outputs RR WIPER MTR signal | --- |
| 8 | GND | Ground for body control module | Less than 0.2 V at all times |
| 9 | +B L H/L HI | Power source for headlights (HI) | About battery voltage at all times |
| 10 | L H/L HI | Outputs L H/L HI signal | With headlights (HI) are ON: about battery voltageWith headlights (HI) are OFF: less than 0.2 V |
| 11 | Not used | --- | --- |
| 12 | R H/L HI | Outputs R H/L HI signal | With headlights (HI) are ON: about battery voltageWith headlights (HI) are OFF: less than 0.2 V |
| 13 | INTR LIGHT- | Outputs INTR LIGHT- signal | --- |
| 14 | +B R H/L HI | Power source for headlights (HI) | About battery voltage at all times |

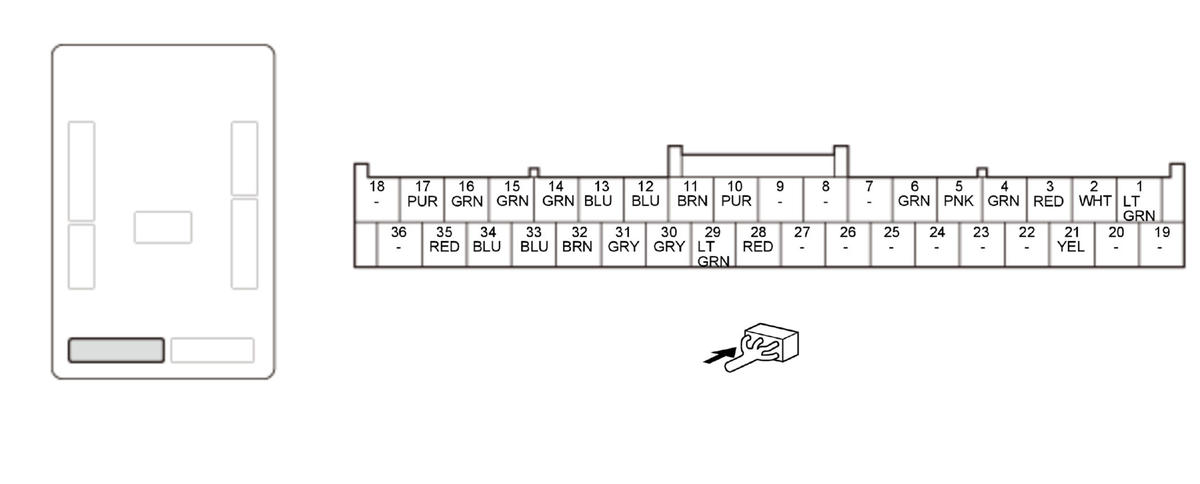

Body Control Module Connector B (36P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | Not used | --- | --- |
| 2 | Not used | --- | --- |
| 3 | Not used | --- | --- |
| 4 *4 | FR DEICER RLY CL- | Outputs FR DEICER RLY CL- signal | With heated windshield wiper area ON: less than 0.2 V |
| 5 | FUEL LID ACT RLY CL- | Outputs FUEL LID ACT RLY CL- signal | With fuel fill door release actuator operation: less than 0.2 V |
| 6 | RR WASHER RLY CL- | Outputs RR WASHER RLY CL- signal | With rear window washer ON: less than 0.2 VWith rear window washer OFF: about battery voltage |
| 7 | RL DOOR LOCK RLY CL- | Outputs RL DOOR LOCK RLY CL- signal | With left sliding door lock actuator in locking operation: less than 0.2 V |
| 8 | RL DOOR UNLOCK RLY CL- | Outputs RL DOOR UNLOCK RLY CL- signal | With left sliding door lock actuator in unlocking operation: less than 0.2 V |
| 9 *1 | VAC RLY CL- | Outputs VAC RLY CL- signal | HondaVAC motor operation: less than 0.2 V |
| 10 | BACK UP(WIPER) | Outputs BACK UP (WIPER) signal | With wiper HI or LO operation: about battery voltageIf none of the above conditions are met: less than 0.2 V |
| 11 | Not used | --- | --- |
| 12 | FR WASHER RLY CL- | Outputs FR WASHER RLY CL- signal | With windshield washer ON: less than 0.2 VWith windshield washer OFF: about battery voltage |
| 13 | Not used | --- | --- |
| 14 | Not used | --- | --- |
| 15 | RR DEF RLY CL- | Detects RR DEF RLY CL- signal | With rear window defogger ON: less than 0.2 V |
| 16 | +B SMART | Power source for body control module | About battery voltage at all times |
| 17 | L TURN | Outputs L TURN signal | With left turn signal lights are ON: about battery voltage |
| 18 | Not used | --- | --- |
| 19 | Not used | --- | --- |
| 20 | B-CAN_H | Communication line | --- |
| 21 | B-CAN_L | Communication line | --- |
| 22 | F-CAN A_H | Communication line | --- |
| 23 | F-CAN A_L | Communication line | --- |
| 24 | BACK UP H/L | BACK UP H/L signal | --- |
| 25 | Not used | --- | --- |
| 26 | Not used | --- | --- |
| 27 | DOOR LOCK RELAY CL- | Outputs DOOR LOCK RELAY signal | With door lock actuators in locking operation: less than 0.2 V |
| 28 | HORN RLY CL- | HORN RLY CL- signal | With horn no sound: about battery voltage With horn sound: less than 0.2 V |
*1: With HondaVAC
*2: Without power tailgate
*3: Without security horn
*4: With heated windshield wiper area
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 29 *2 | TRUNK ACT RLY CL- | Outputs TRUNK ACT RLY CL- signal | With tailgate release actuator operation: less than 0.2 V |
| 30 *3 | HORN SW | Detects HORN SW signal | With horn switch OFF: about battery voltage With horn switch ON: less than 0.2 V |
| 31 | DR DOOR UNLOCK RELAY CL- | Outputs DR DOOR UNLOCK RELAY CL- signal | With driver's door lock actuator in unlocking operation: less than 0.2 V |
| 32 | DOOR UNLOCK RELAY CL- | Outputs DOOR UNLOCK RELAY signal | With door lock actuators in unlocking operation: less than 0.2 V |
| 33 | Not used | --- | --- |
| 34 | R TURN | Outputs R TURN signal | With right turn signal lights are ON: about battery voltage |
| 35 | Not used | --- | --- |
| 36 | Not used | --- | --- |
*1: With HondaVAC
*2: Without power tailgate
*3: Without security horn
*4: With heated windshield wiper area

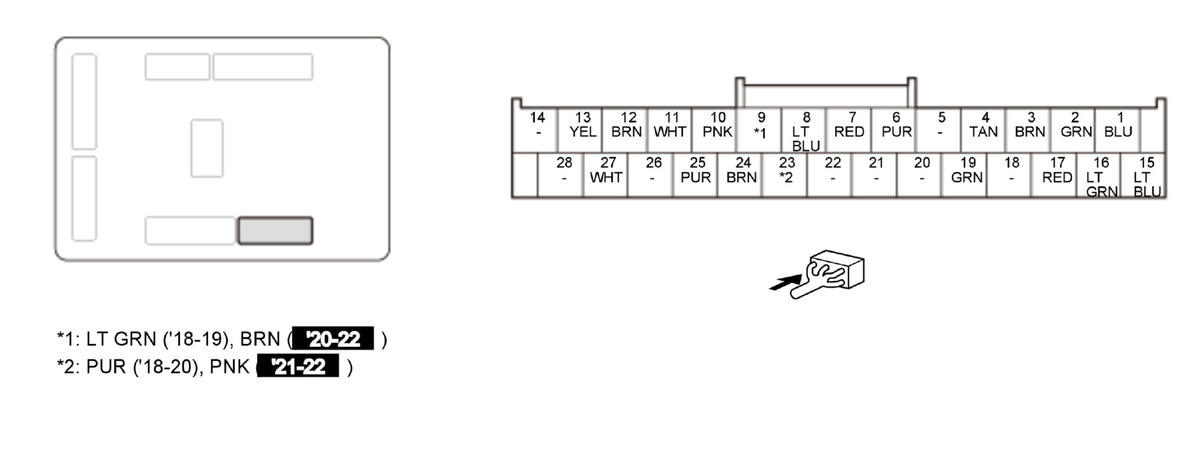

Body Control Module Connector C (28P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | ATP-P | Detects ATP-P signal | With the vehicle in the ON mode and P position/mode: less than 0.2 V With out of P position/mode and body control module is wakeup mode: about battery voltage With out of P position/mode and body control module is sleep mode: pulse |
| 2 | HAZARD SW | Detects HAZARD SW signal | With hazard warning switch OFF: about battery voltage With hazard warning switch ON: less than 0.2 V |
| 3 | COMBI SW GND(LT) | Ground for combination light switch | Less than 0.2 V at all times |
| 4 | TRUNK/TAIL GATE HANDLE SW | Detects TRUNK/TAIL GATE HANDLE SW signal | With tailgate outer handle switch ON: less than 0.2 V With tailgate outer handle switch OFF and body control module is wakeup mode: about battery voltage With tailgate outer handle switch OFF and body control module is sleep mode: pulse |
| 5 | Not used | --- | --- |
| 6 | FR FOG SW | Detects FR FOG SW signal | With fog light switch ON: less than 0.2 V With fog light switch OFF and body control module is wakeup mode: about battery voltage With fog light switch OFF and body control module is sleep mode: pulse |
| 7 | PASSING SW | Detects PASSING SW signal | With combination light switch PASSING: less than 0.2 V With combination light switch OFF and body control module is wakeup mode: about battery voltage With combination light switch OFF and body control module is sleep mode: pulse |
| 8 | H/L HI SW | Detects H/L HI SW signal | With combination light switch HI: less than 0.2 V With combination light switch OFF and body control module is wakeup mode: about battery voltage With combination light switch OFF and body control module is sleep mode: pulse |
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 9 | H/L ON SW | Detects H/L ON SW signal | With combination light switch ON: less than 0.2 V With combination light switch OFF and body control module is wakeup mode: about battery voltage With combination light switch OFF and body control module is sleep mode: pulse |
| 10 | H/L OFF SW | Detects H/L OFF SW signal | With combination light switch OFF: less than 0.2 V With combination light switch ON and body control module is wakeup mode: about battery voltage With combination light switch ON and body control module is sleep mode: pulse |
| 11 | PARKING LT SW | Detects PARKING LT SW signal | With combination light switch PARKING: less than 0.2 V With combination light switch OFF and body control module is wakeup mode: about battery voltage With combination light switch OFF and body control module is sleep mode: pulse |
| 12 | IG2 DRL | Detects IG2 DRL signal | With the vehicle in the ON mode: about battery voltage |
| 13 | LIN (FR WIPER) | Communication line | --- |
| 14 | Not used | --- | --- |
| 15 | RR L SILICON UNLOCK | Detects RR L SILICON UNLOCK signal | With left sliding door lock knob switch UNLOCK: less than 0.2 V With left sliding door lock knob switch LOCK and body control module is wakeup mode: about battery voltage With left sliding door lock knob switch LOCK and body control module is sleep mode: pulse |
| 16 | RR R SILICON UNLOCK | Detects RR R SILICON UNLOCK signal | With right sliding door lock knob switch UNLOCK: less than 0.2 V With right sliding door lock knob switch LOCK and body control module is wakeup mode: about battery voltage With right sliding door lock knob switch LOCK and body control module is sleep mode: pulse |
| 17 | SIL RR DR LOCK | Detects SIL RR DR signal | With left sliding door lock knob switch LOCK: less than 0.2 V With left sliding door lock knob switch UNLOCK and body control module is wakeup mode: about battery voltage With left sliding door lock knob switch UNLOCK and body control module is sleep mode: pulse |
| 18 | Not used | --- | --- |
| 19 | HOOD SW | Detects HOOD SW signal | With hood latch switch ON: less than 0.2 V With hood latch switch OFF and body control module is wakeup mode: about battery voltage With hood latch switch OFF and body control module is sleep mode: pulse |
| 20 | Not used | --- | --- |
| 21 | Not used | --- | --- |
| 22 | Not used | --- | --- |
| 23 | ACC | ACC power source | With the vehicle in the ACCESSORY or ON mode: about battery voltage |
| 24 | BACK LT | Detects BACK LT signal | With the vehicle in the ON mode and R position/mode: about battery voltage If none of the above conditions are met: less than 0.2 V |
| 25 | STOP SW | Detects STOP SW signal | With brake pedal pressed: about battery voltage With brake pedal released: less than 0.2 V |
| 26 | Not used | --- | --- |
| 27 | +B BACK UP | Power source for body control module | About battery voltage at all times |
| 28 | Not used | --- | --- |

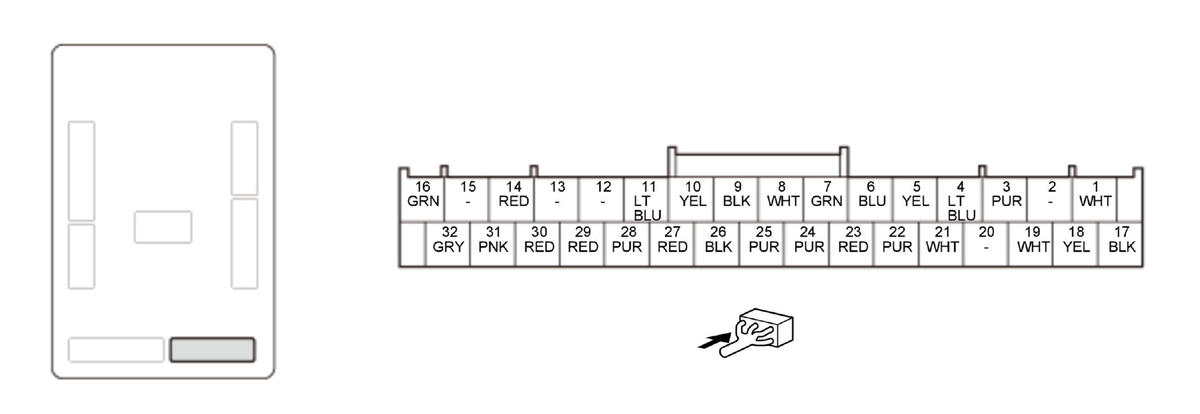

Body Control Module Connector D (40P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | Not used | --- | --- |
| 2 | FR WIPER INT SW | Detects FR WIPER INT SW signal | With windshield wiper switch INT or LO: less than 0.2 V With out of windshield wiper switch INT or LO and body control module is wakeup mode: about battery voltage With out of windshield wiper switch INT or LO and body control module is sleep mode: less than 0.2 V |
| 3 | FR WIPER HI SW | Detects FR WIPER HI SW signal | With windshield wiper switch HI or LO: less than 0.2 V With out of windshield wiper switch HI or LO and body control module is wakeup mode: about battery voltage With out of windshield wiper switch HI or LO and body control module is sleep mode: less than 0.2 V |
| 4 | FR WIPER MIST SW | Detects FR WIPER MIST SW signal | With windshield washer switch MIST: less than 0.2 V With out of windshield wiper switch MIST and body control module is wakeup mode: about battery voltage With out of windshield wiper switch MIST and body control module is sleep mode: less than 0.2 V |
| 5 | FR WASHER SW | Detects FR WASHER SW signal | With windshield washer switch ON: less than 0.2 V With windshield washer switch OFF and body control module is wakeup mode: about battery voltage With windshield washer switch OFF and body control module is sleep mode: less than 0.2 V |
| 6 | RR WIPER INT SW | Detects RR WIPER INT SW signal | With rear window wiper switch INT: less than 0.2 V With out of rear window wiper switch INT and body control module is wakeup mode: about battery voltage With out of rear window wiper switch INT and body control module is sleep mode: less than 0.2 V |
| 7 | RR WIPER SW | Detects RR WIPER SW signal | With rear window wiper switch ON: less than 0.2 V With out of rear window wiper switch ON and body control module is wakeup mode: about battery voltage With out of rear window wiper switch ON and body control module is sleep mode: less than 0.2 V |
| 8 | RR WASHER SW | Detects RR WASHER SW signal | With rear window washer switch INT: less than 0.2 V With out of rear window washer switch INT and body control module is wakeup mode: about battery voltage With out of rear window washer switch INT and body control module is sleep mode: less than 0.2 V |
| 9 | COMBI SW GND (WIP) | Ground for wiper/washer switch | Less than 0.2 V at all times |
| 10 | Not used | --- | --- |
| 11 | Not used | --- | --- |
*1: With LED headlight
*2: Without power tailgate
*3: With heated windshield wiper area
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 12 *3 | IG1 METER | Detects IG1 METER signal | With heated windshield wiper area switch ON: less than 0.2 V With heated windshield wiper area switch OFF and body control module is wakeup mode: about battery voltage With heated windshield wiper area switch OFF and body control module is sleep mode: less than 0.2 V |
| 13 | Not used | --- | --- |
| 14 | Not used | --- | --- |
| 15 | Not used | --- | --- |
| 16 *1 | H/L LO SIG | Communication line | --- |
| 17 | Not used | --- | --- |
| 18 | RL DOOR UNLOCK RLY CL- | Outputs RL DOOR UNLOCK RLY CL- signal | With fuel fill door opener switch ON: less than 0.2 V |
| 19 | Not used | --- | --- |
| 20 | Not used | --- | --- |
| 21 | Not used | --- | --- |
| 22 | FL DOOR SW | Detects FL DOOR SW signal | With driver's door switch ON: less than 0.2 V With driver's door switch OFF and body control module is wakeup mode: about battery voltage With driver's door switch OFF and body control module is sleep mode: pulse |
| 23 | FR DOOR SW | Detects FR DOOR SW signal | With front passenger's door switch ON: less than 0.2 V With front passenger's door switch OFF and body control module is wakeup mode: about battery voltage With front passenger's door switch OFF and body control module is sleep mode: pulse |
| 24 | RL DOOR SW | Detects RL DOOR SW signal | With left sliding door switch ON: less than 0.2 V With left sliding door switch OFF and body control module is wakeup mode: about battery voltage With left sliding door switch OFF and body control module is sleep mode: pulse |
| 25 | Not used | --- | --- |
| 26 | Not used | --- | --- |
| 27 | TAIL GATE SW | Detects TAIL GATE SW signal | With tailgate latch switch ON: less than 0.2 V With tailgate latch switch OFF and body control module is wakeup mode: about battery voltage With tailgate latch switch OFF and body control module is sleep mode: pulse |
| 28 | RR DOOR SW | Detects RR DOOR SW signal | With right sliding door switch ON: less than 0.2 V With right sliding door switch OFF and body control module is wakeup mode: about battery voltage With right sliding door switch OFF and body control module is sleep mode: pulse |
| 29 | Not used | --- | --- |
| 30 | Not used | --- | --- |
| 31 | Not used | --- | --- |
| 32 | Not used | --- | --- |
| 33 | Not used | --- | --- |
| 34 *2 | CDS | Detects CDS signal | With SRS unit collision detection: less than 0.2 V With SRS unit non-collision detection and body control module is wakeup mode: about battery voltage With body control module is sleep mode: less than 0.2 V |
| 35 | S-NET | Communication line | --- |
| 36 | K LINE | Communication line | --- |
| 37 | Not used | --- | --- |
| 38 | Not used | --- | --- |
| 39 | Not used | --- | --- |
| 40 | Not used | --- | --- |
*1: With LED headlight
*2: Without power tailgate
*3: With heated windshield wiper area

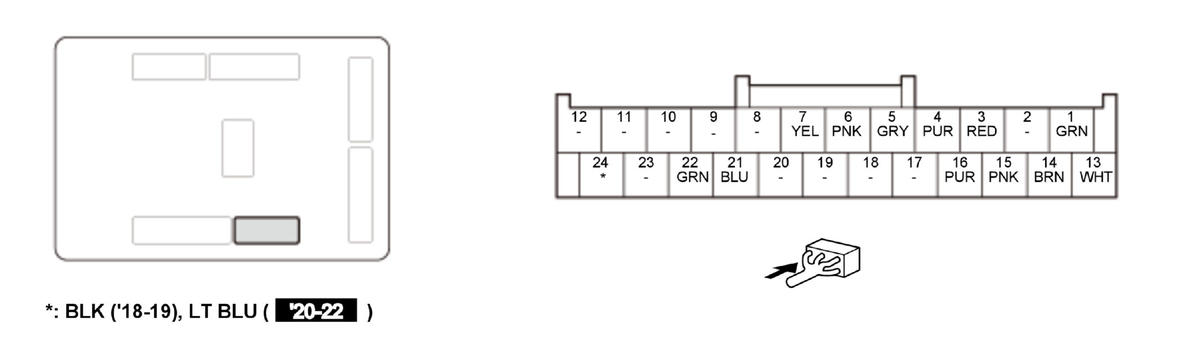

Body Control Module Connector E (24P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | IG1 ACG | IG1 power source | With the vehicle in the ON or START mode: about battery voltage |
| 2 | Not used | --- | --- |
| 3 | CARGO LT | Outputs CARGO LT signal | With cargo area light are ON: less than 0.2 V With cargo area light are OFF: about battery voltage |
| 4 *4 | SCTY 2 | Detects SCTY 2 signal | --- |
| 5 | R TURN SW | Detects R TURN SW signal | With right turn signal switch ON: less than 0.2 V With right turn signal switch OFF and body control module is wakeup mode: about battery voltage With right turn signal switch OFF and body control module is sleep mode: less than 0.2 V |
| 6 | L TURN SW | Detects L TURN SW signal | With left turn signal switch ON: less than 0.2 V With left turn signal switch OFF and body control module is wakeup mode: about battery voltage With left turn signal switch OFF and body control module is sleep mode: less than 0.2 V |
| 7 *3 | VAC SW | Outputs VAC SW signal | --- |
| 8 | Not used | --- | --- |
| 9 | Not used | --- | --- |
| 10 | Not used | --- | --- |
| 11 | Not used | --- | --- |
| 12 | Not used | --- | --- |
| 13 *3 | VAC IND | Outputs VAC IND signal | --- |
| 14 *1 | IG1 MICU (DC/DC) | IG1 power source | With the vehicle in the ON or START mode: about battery voltage |
| 15 | DR COURTESY LT- | Outputs DR COURTESY LT- signal | With driver's door courtesy light are ON: less than 0.2 V With driver's door courtesy light are OFF: about battery voltage |
| 16 | AS COURTESY LT- | Outputs AS COURTESY LT- signal | With front passenger's door courtesy light are ON: less than 0.2 V With front passenger's door courtesy light are OFF: about battery voltage |
| 17 | Not used | --- | --- |
| 18 | Not used | --- | --- |
| 19 | Not used | --- | --- |
| 20 | Not used | --- | --- |
| 21 *2 | FR WIPER INT VOL | Detects FR WIPER INT VOL signal | With the vehicle in the ON mode: about 0-5 V (depending on intermittent dwell time controller) |
| 22 | SMART BUZZER | Outputs SMART BUZZER signal | --- |
| 23 | Not used | --- | --- |
| 24 *3 | VAC TIME OUT | Outputs VAC TIME OUT signal | --- |
*1: With auto idle stop system
*2: With intermittent dwell time controller
*3: With HondaVAC
*4: With display audio

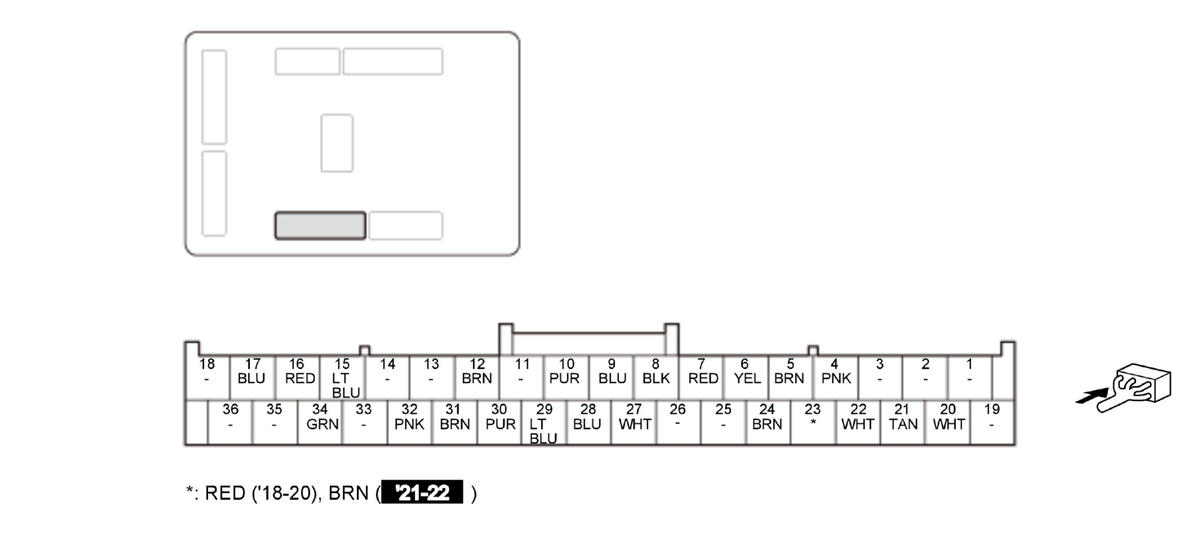

Body Control Module Connector F (36P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 * | MTR CONT | Outputs MTR CONT signal | --- |
| 2 | IG1 COIL+ | Outputs IG1 COIL+ signal | With the vehicle in the ON mode: about battery voltage With the vehicle in the OFF (LOCK) mode: less than 0.2 V |
| 3 | SWILL1 | Outputs SWILL1 signal | With engine start/stop switch light (RED) OFF: about battery voltage With engine start/stop switch light (RED) ON: less than 0.2 V |
| 4 | SWILL2 | Outputs SWILL2 signal | With engine start/stop switch light (WHITE) OFF: about battery voltage With engine start/stop switch light (WHITE) ON: less than 0.2 V |
| 5 | ESL PWR | Outputs ESL PWR signal | --- |
| 6 | STS | Outputs STS signal | With engine starting request: about battery voltage |
| 7 | Not used | --- | --- |
| 8 | Not used | --- | --- |
| 9 | Not used | --- | --- |
| 10 | EXT M+ | Outputs EXT M+ signal | --- |
| 11 | SSSW LF ANT+ | Outputs SSSW LF ANT+ signal | --- |
| 12 | EXT FR AS+ | Outputs EXT FR AS+ signal | --- |
| 13 | EXT FR DR+ | Outputs EXT FR DR+ signal | --- |
| 14 | EXT F+ | Outputs EXT F+ signal | --- |
| 15 | EXT RR R+ | Outputs EXT RR R+ signal | --- |
| 16 | EXT RR L+ | Outputs EXT RR L+ signal | --- |
| 17 | EXT R+ | Outputs EXT R+ signal | --- |
| 18 | Not used | --- | --- |
| 19 | Not used | --- | --- |
| 20 | Not used | --- | --- |
| 21 | L-LINE | Communication line | --- |
| 22 | Not used | --- | --- |
| 23 | Not used | --- | --- |
| 24 | Not used | --- | --- |
| 25 | Not used | --- | --- |
| 26 | Not used | --- | --- |
| 27 | Not used | --- | --- |
| 28 | EXT M- | Outputs EXT M- signal | --- |
| 29 | SSSW LF ANT- | Outputs SSSW LF ANT- signal | --- |
| 30 | EXT FR AS- | Outputs EXT FR AS- signal | --- |
| 31 | EXT FR DR- | Outputs EXT FR DR- signal | --- |
*: With electric steering lock
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 32 | EXT F- | Outputs EXT F- signal | --- |
| 33 | EXT RR R- | Outputs EXT RR R- signal | --- |
| 34 | EXT RR L- | Outputs EXT RR L- signal | --- |
| 35 | EXT R- | Outputs EXT R- signal | --- |
| 36 | Not used | --- | --- |
*: With electric steering lock

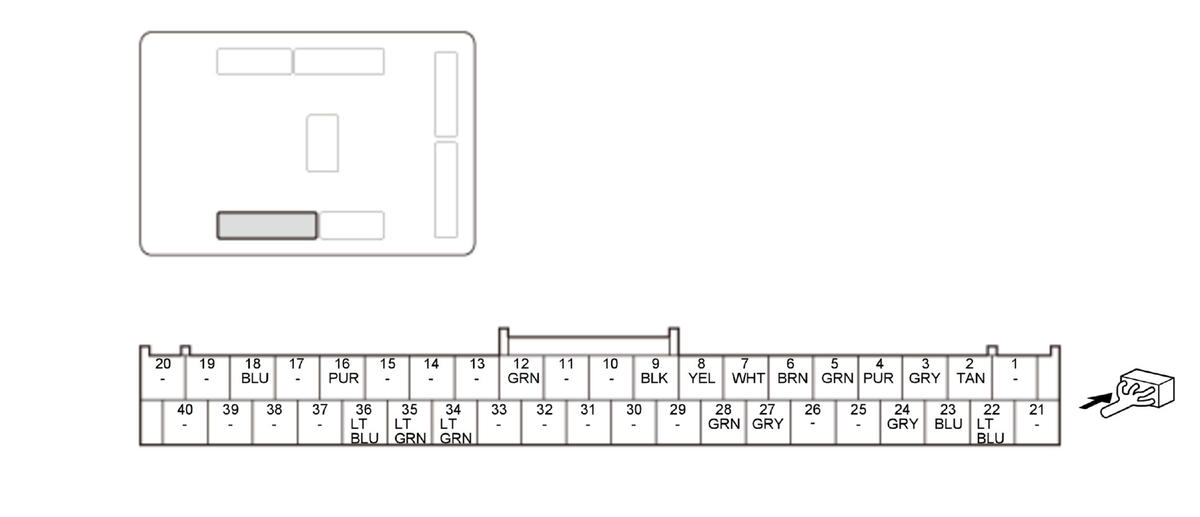

Body Control Module Connector G (32P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | DL FR AS | Detects DL FR AS signal | --- |
| 2 | Not used | --- | --- |
| 3 *2 | ESL SW B | Detects ESL SW B signal | --- |
| 4 *2 | ESL SW C | Detects ESL SW C signal | --- |
| 5 *2 | ESL SW D | Detects ESL SW D signal | --- |
| 6 *2 | MTR CUT1(CONT) | Detects MTR CUT1(CONT) signal | --- |
| 7 *2 | MTR CUT2(IG1) | Detects MTR CUT2 (IG1) signal | --- |
| 8 | TS RR R | Detects TS RR R signal | --- |
| 9 | SS2(-) | Detects SS2(-) signal | --- |
| 10 | IG1-B SIG | Detects IG1-B SIG signal | With the vehicle in the ON or START mode: about battery voltage |
| 11 | IG2 RLY S | Detects IG2 RLY S signal | With the vehicle in the ON mode: about battery voltage |
| 12 | Not used | --- | --- |
| 13 | Not used | --- | --- |
| 14 | VOUT RR R | Outputs VOUT RR R signal | --- |
| 15 | Not used | --- | --- |
| 16 | ACC CONT | Outputs ACC CONT signal | With the vehicle in the ACCESSORY or ON mode: about battery voltageWith the vehicle in the OFF (LOCK) mode: less than 0.2 V |
| 17 | RLY GND | Ground for IG1A/IG1B/IG2/ACC relay circuits | Less than 0.2 V at all times |
| 18 | SS1(+) | Detects SS1(+) signal | Engine start/stop switch pressed: about battery voltageEngine start/stop switch released: less than 0.2 V |
| 19 | DL FR DR | Detects DL FR DR signal | --- |
| 20 | Not used | --- | --- |
| 21 | TS T/G | Detects TS T/G signal | With tailgate outer handle lock switch ON: less than 0.2 V With tailgate outer handle lock switch OFF and body control module is wakeup mode: about battery voltage With tailgate outer handle lock switch OFF and body control module is sleep mode: pulse |
*1: With hands free access power tailgate
*2: With electric steering lock
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 22 | TS FR DR | Detects TS FR DR signal | --- |
| 23 | H-BRAKE SW | Detects H-BRAKE SW signal | --- |
| 24 *1 | HFA OUPUT | Detects HFA OUPUT signal | --- |
| 25 | TS FR AS | Detects TS FR AS signal | --- |
| 26 | TS RR L | Detects TS RR L signal | --- |
| 27 | IG1-A SIG | Detects IG1-A SIG signal | With the vehicle in the ON or START mode: about battery voltage |
| 28 | IGN TRX | Communication line | --- |
| 29 | VOUT RR L | Outputs VOUT RR L signal | --- |
| 30 | VOUT FR AS | Outputs VOUT FR AS signal | --- |
| 31 | VOUT FR DR | Outputs VOUT FR DR signal | --- |
| 32 | IG2 COIL+ | Outputs IG2 COIL+ signal | With the vehicle in the ON mode: about battery voltage With the vehicle in the OFF (LOCK) mode: less than 0.2 V |
*1: With hands free access power tailgate
*2: With electric steering lock
