HomeLink Unit Connector for Inputs and Outputs (2021 2022 2023)

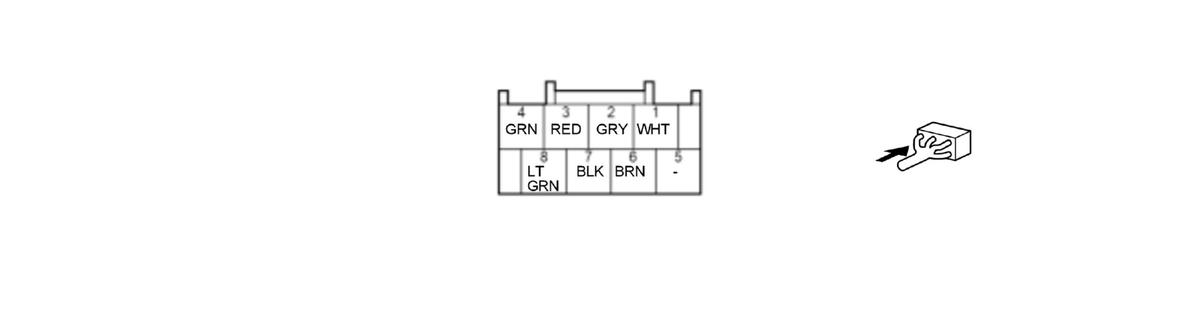

HomeLink Unit 8P Connector (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | +B BACK UP | Power source for HomeLink unit | About battery voltage at all times |
| 2 | ILLUMI+ ROOF | Detects ILLUMI+ ROOF signal | With parking lights are OFF: less than 0.2 V With parking lights are ON: about battery voltage |
| 3 * | OEC- | Detects OEC- signal | --- |
| 4 * | OEC+ | Power source for automatic dimming outside mirror | --- |
| 5 | Not used | --- | --- |
| 6 | BACK LT | Detects BACK LT signal | With the vehicle in the ON mode and R position/mode: about battery voltage If none of the above conditions are met: less than 0.2 V |
| 7 | GND | Ground for HomeLink unit | Less than 0.2 V at all times |
| 8 | IG2 | IG2 power source | With the vehicle in the ON mode: about battery voltage |
*: With automatic dimming outside mirror
