Power Window Master Switch Connector for Inputs and Outputs

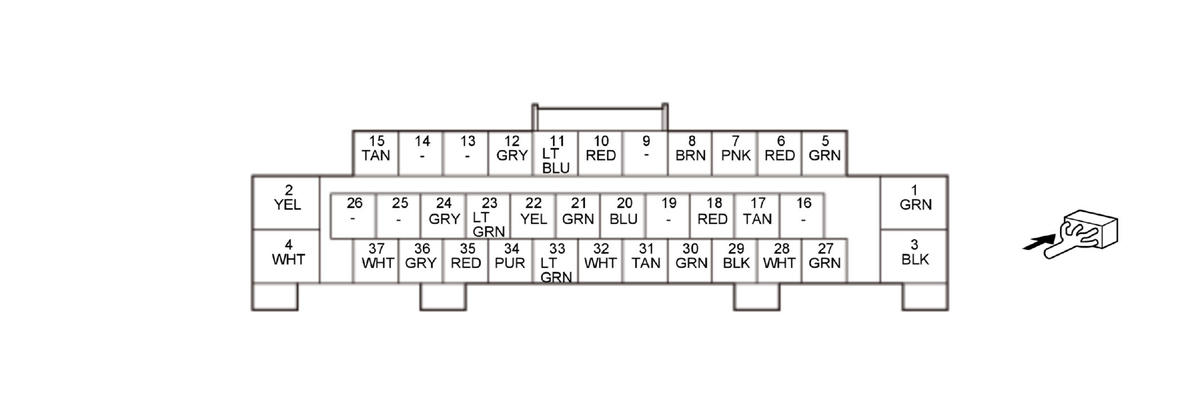

Power Window Master Switch 37P Connector (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	P/W DR MTR DOWN	Drives driver's power window motor	With driver's power window motor DOWN operation: about battery voltage If none of the above conditions are met: less than 0.2 V
2	P/W DR MTR UP	Drives driver's power window motor	With driver's power window motor UP operation: about battery voltage If none of the above conditions are met: less than 0.2 V
3	PGND	Ground for power window master switch	Less than 0.2 V at all times
4	+B P/W DR	Power source for power window master switch	About battery voltage at all times
5 *2	DR MEMORY SEAT SW POS1	Detects DR MEMORY SEAT SW POS1 signal	With driving position memory switch POSITION 1 ON: less than 0.2 V With driving position memory switch POSITION 1 OFF: about battery voltage
6 *2	DR MEMORY SEAT SW POS2	Detects DR MEMORY SEAT SW POS2 signal	With driving position memory switch POSITION 2 ON: less than 0.2 V With driving position memory switch POSITION 2 OFF: about battery voltage
7	KEY SW LOCK	Detects KEY SW LOCK signal	With driver's door key cylinder switch UNLOCK: about battery voltage With driver's door key cylinder switch LOCK: less than 0.2 V
8	KEY SW UNLOCK	Detects KEY SW UNLOCK signal	With driver's door key cylinder switch LOCK: about battery voltage With driver's door key cylinder switch UNLOCK: less than 0.2 V
9	Not used	---	---
10 *1	MIRROR L COM	Detects MIRROR L COM signal	With the vehicle in the ON mode and right power mirror DOWN or LEFT function: about battery voltage
11 *1	AS MIRROR LR	Detects AS MIRROR LR signal	With the vehicle in the ON mode and right power mirror DOWN or RIGHT function: about battery voltage
12 *1	DR MIRROR UD	Detects DR MIRROR UD signal	With the vehicle in the ON mode and power mirror UP or LEFT function: about battery voltage
13	Not used	---	---
14	Not used	---	---
15 *3	H/MIRROR DR	Outputs H/MIRROR DR signal	With mirror defogger ON: about battery voltage
16	Not used	---	---
17 *2	DR MEMORY SEAT SW MEMORY	Detects DR MEMORY SEAT SW MEMORY signal	With driving position memory switch SET ON: less than 0.2 V With driving position memory switch SET OFF: about battery voltage
18	IG2	IG2 power source	With the vehicle in the ON mode: about battery voltage
19	Not used	---	---
20	DR SILCON UNLOCK	Detects DR SILCON UNLOCK signal	With driver's door lock knob switch LOCK: about battery voltage With driver's door lock knob switch UNLOCK: less than 0.2 V
21	DR SILCON LOCK	Detects DR SILCON LOCK signal	With driver's door lock knob switch UNLOCK: about battery voltage With driver's door lock knob switch LOCK: less than 0.2 V
22 *2	DR MEMORY SEAT SW IND1	Outputs DR MEMORY SEAT SW IND1 signal	Indicator 1 ON: pulse (depending on indicator brightness) Indicator 1 OFF: less than 0.2 V

*1: Without DPMS

*2: With DPMS

*3: With mirror defogger

Terminal number	Terminal name	Description	Signal
23	RETRA MIRROR SW	Outputs RETRA MIRROR SW signal	With the vehicle in the ON mode and power mirror retract switch in RETRACT position: less than 0.2 V With the vehicle in the ON mode, and power mirror retract switch in EXTEND position: about battery voltage
24 *2	DR MEMORY SEAT SW IND2	Outputs DR MEMORY SEAT SW IND2 signal	Indicator 2 ON: pulse (depending on indicator brightness) Indicator 2 OFF: less than 0.2 V
25	Not used	---	---
26	Not used	---	---
27	DR RETRA OPEN	Drives retract actuator	With the vehicle in the ON mode, and power mirror EXTEND operation: about battery voltage If none of the above conditions are met: less than 0.2 V
28	DR RETRA CLOSE	Drives retract actuator	With the vehicle in the ON mode, and power mirror RETRACT operation: about battery voltage If none of the above conditions are met: less than 0.2 V
29	P/W DR MTR SGND	Ground for power window master switch	Less than 0.2 V at all times
30	P/W SW ILLUMI	Outputs P/W SW ILLUMI signal	With combination light switch PARKING: about battery voltage With combination light switch OFF: less than 0.2 V
31	B-CAN_L	Communication line	---
32	B-CAN_H	Communication line	---
33	P/W DR MTR PLSA	Detects P/W DR MTR PLSA signal	---
34	P/W DR MTR VCC	Outputs P/W DR MTR VCC signal	With door multiplex control unit is wakeup mode and driver's power window motor operation: about battery voltage If none of the above conditions are met: less than 0.2 V
35	P/W DR MTR PLSB	Detects P/W DR MTR PLSB signal	---
36	LIN(P/W)	Communication line	---
37	+B BACK UP	Power source for power window master switch	About battery voltage at all times

*1: Without DPMS

*2: With DPMS

*3: With mirror defogger
