HomeLink Unit Connector for Inputs and Outputs (2018 2019 2020)

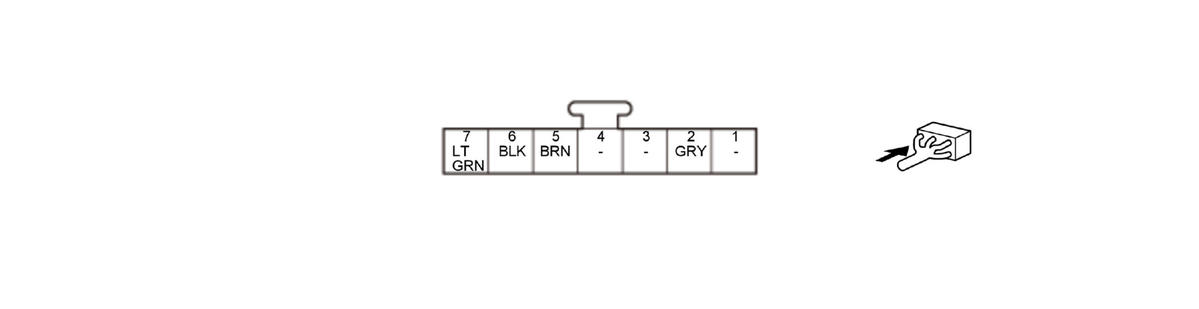

HomeLink Unit 7P Connector (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | Not used | --- | --- |
| 2 | ILLUMI+ ROOF | Detects ILLUMI+ ROOF signal | With parking lights are OFF: less than 0.2 V With parking lights are ON: about battery voltage |
| 3 | Not used | --- | --- |
| 4 | Not used | --- | --- |
| 5 | BACK LT | Detects BACK LT signal | With the vehicle in the ON mode and R position/mode: about battery voltage If none of the above conditions are met: less than 0.2 V |
| 6 | GND | Ground for HomeLink unit | Less than 0.2 V at all times |
| 7 | IG2 | IG2 power source | With the vehicle in the ON mode: about battery voltage |
