Power Mirror Control Unit Connector for Inputs and Outputs

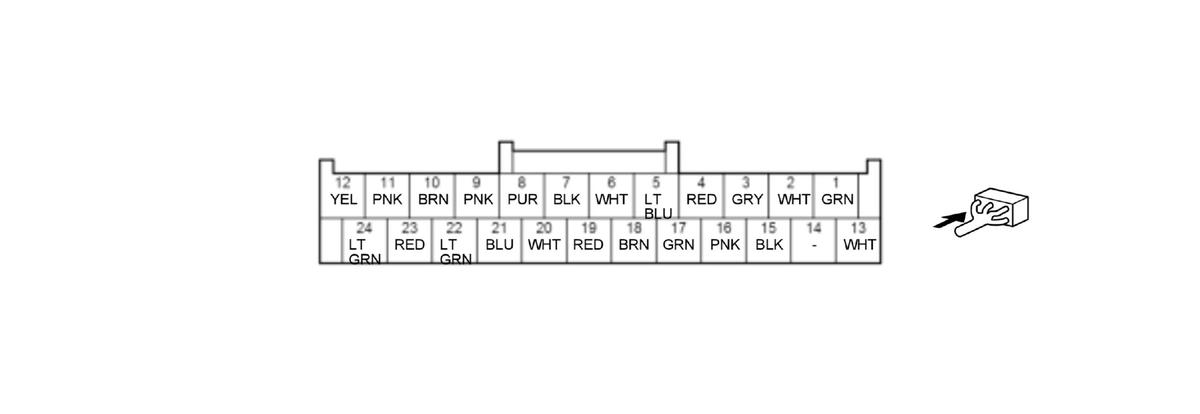

Power Mirror Control Unit 24P Connector (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | IG1 METER | IG1 power source | With the vehicle in the ON or START mode: about battery voltage |
| 2 | R/C MIRR MTR (R-MVCC) | Outputs R/C MIRR MTR (R-MVCC) signal | When power mirror control unit is wakeup mode: about 5 V |
| 3 | DR MIRROR UD | Detects DR MIRROR UD signal | With the vehicle in the ON mode: about 0 V or 5 V (depending on power mirror switch position) |
| 4 | MIRROR L COM | Detects MIRROR L COM signal | With power mirror selector switch in R position: less than 0.2 V |
| 5 | AS MIRROR LR | Detects AS MIRROR LR signal | With power mirror selector switch in R position: less than 0.2 V |
| 6 | MIRROR SEL | Detects MIRROR SEL signal | With power mirror selector switch in L position: less than 0.2 V |
| 7 | R/C MIRROR MTR (R-SGND) | Detects R/C MIRROR MTR (R-SGND) signal | Less than 0.2 V at all times |
| 8 | SEV | Detects SEV signal | About 0-5 V (depending on power mirror vertical position) |
| 9 | SEH | Detects SEH signal | About 0-5 V (depending on power mirror horizontal position) |
| 10 | R/C MIRR MTR (R-UD) | Drives right power mirror actuator (UP) | With right power mirror actuator tilt UP: about battery voltage With right power mirror actuator tilt DOWN: less than 0.2 V |
| 11 | MIRROR L LR | Detects MIRROR L LR signal | With power mirror selector switch in L position: less than 0.2 V |
| 12 | DR MIRROR UD | Detects DR MIRROR UD signal | With power mirror selector switch in L position: less than 0.2 V |
| 13 | +B BACK UP | Power source for power mirror control unit | About battery voltage at all times |
| 14 | Not used | --- | --- |
| 15 | P/W DR MTR SGND | Ground for power mirror control unit | Less than 0.2 V at all times |
| 16 | MIRROR SER | Detects MIRROR SER signal | With power mirror selector switch in R position: less than 0.2 V |
| 17 | AS MIRROR HLSE | Detects AS MIRROR HLSE signal | About 0-5 V (depending on power mirror horizontal position) |
| 18 | R/C MIRR MTR (R-MV) | Detects R/C MIRR MTR (R-MV) signal | About 0-5 V (depending on power mirror vertical position) |
| 19 | MIRROR R LR | Drives right power mirror actuator (RIGHT) | With right power mirror actuator swing RIGHT: about battery voltage With right power mirror actuator swing LEFT: less than 0.2 V |
| 20 | MIRROR R COM | Drives right power mirror actuator (DOWN/LEFT) | With right power mirror actuator swing RIGHT or tilt UP: less than 0.2 V With right power mirror actuator swing LEFT or tilt DOWN: about battery voltage |
| 21 | MH | Drives left power mirror actuator (RIGHT) | With left power mirror actuator swing RIGHT: about battery voltage With left power mirror actuator swing LEFT: less than 0.2 V |
| 22 | DR MIRROR COM | Drives left power mirror actuator (UP/LEFT) | With left power mirror actuator swing RIGHT or tilt DOWN: less than 0.2 V With left power mirror actuator swing LEFT or tilt UP: about battery voltage |
| 23 | MV | Drives left power mirror actuator (DOWN) | With left power mirror actuator tilt DOWN: about battery voltage With left power mirror actuator tilt UP: less than 0.2 V |
| 24 | LIN (P/W) | Communication line | --- |
