Audio and Visual System Component Location Index (2025)

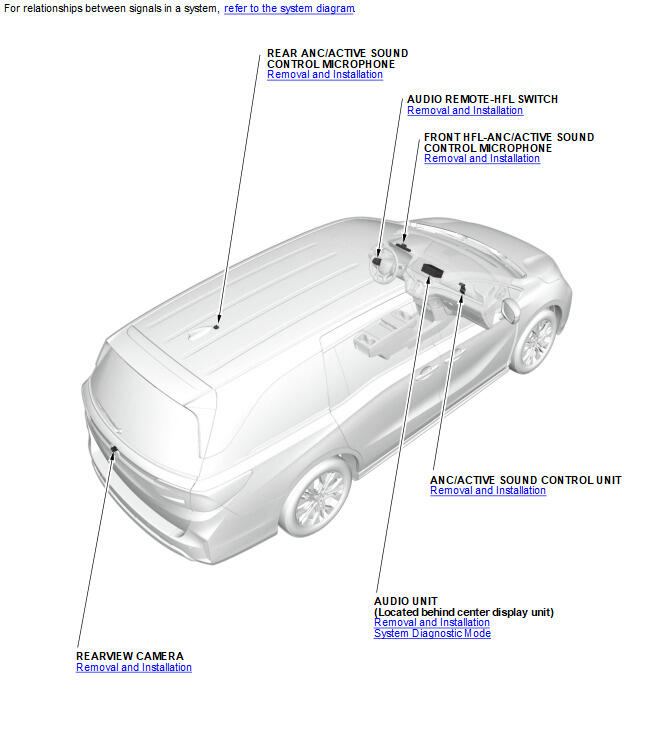

GHH641988Courtesy of HONDA, U.S.A., INC.

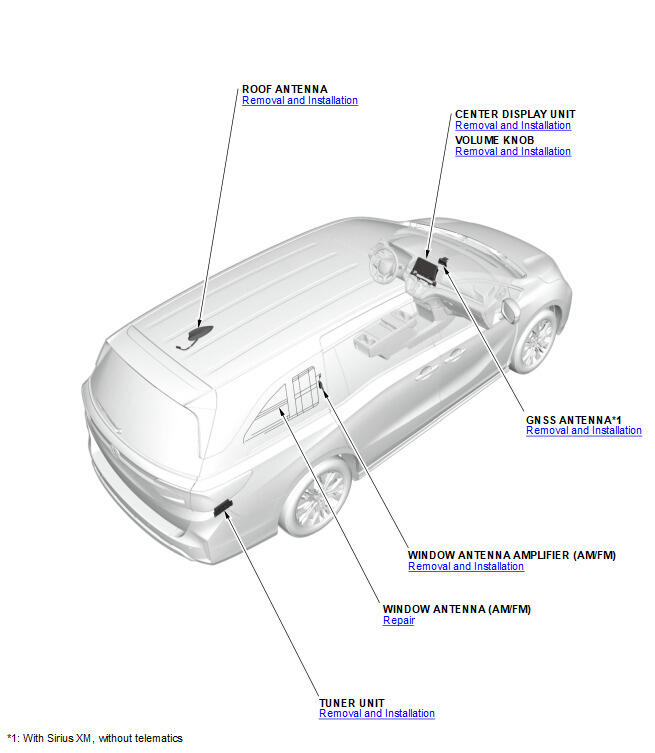

GHH641989Courtesy of HONDA, U.S.A., INC.

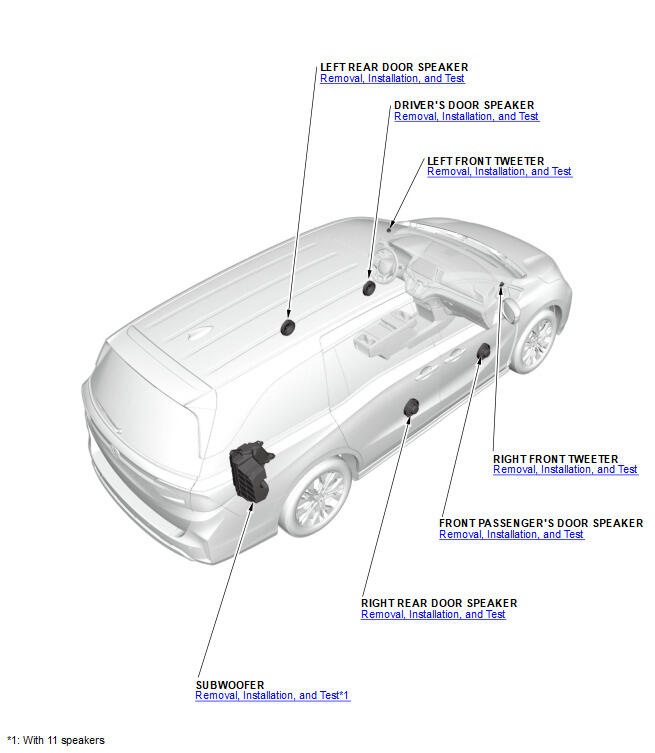

GHH641990Courtesy of HONDA, U.S.A., INC.

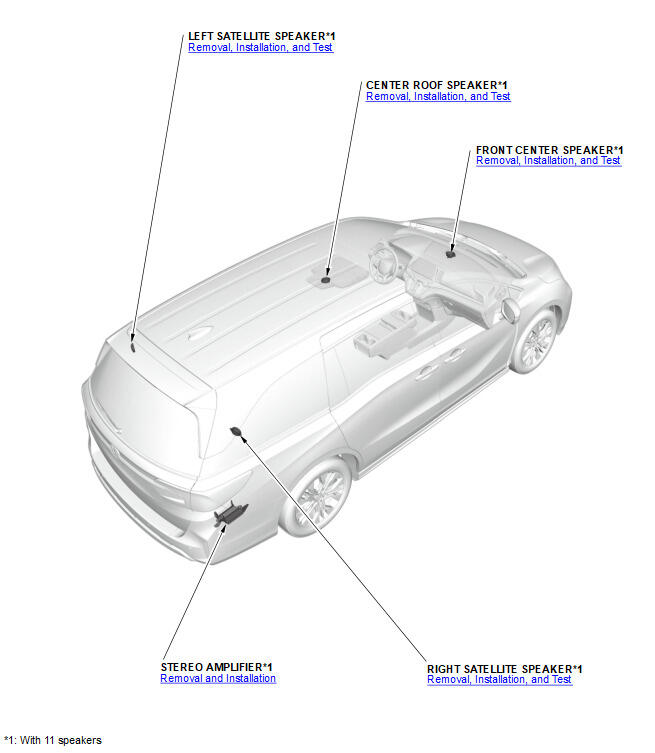

GHH641991Courtesy of HONDA, U.S.A., INC.

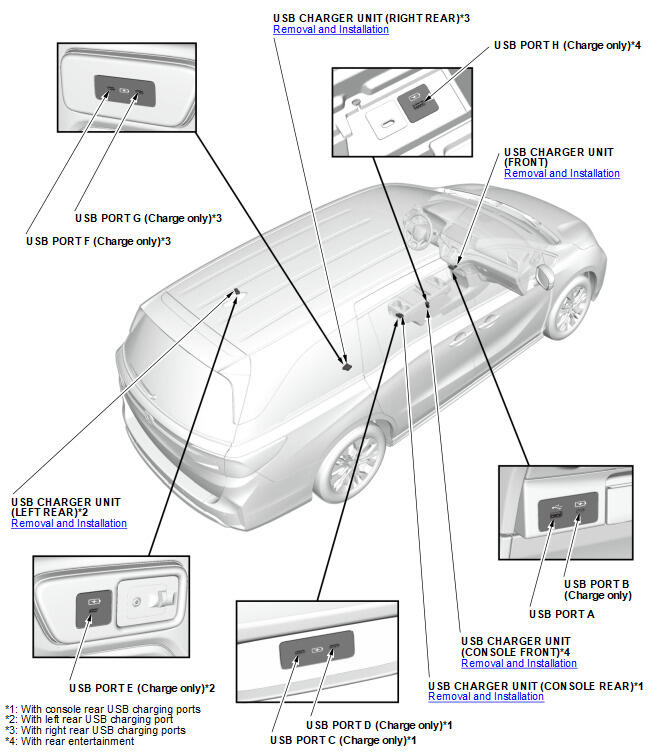

GHH641992Courtesy of HONDA, U.S.A., INC.
