Auxiliary Jack Assembly Connector for Inputs and Outputs

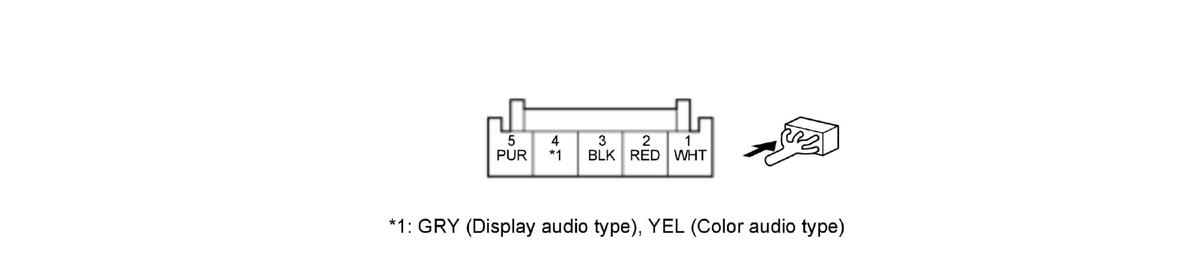

Auxiliary Jack Assembly 5P Connector (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | AUX R CH | Outputs auxiliary sound signal |
| 2 | AUX L CH | Outputs auxiliary sound signal |
| 3 | AUX SGND | Ground for auxiliary sound signal |
| 4 | SH AUX *1 | Shield for terminals No. 1, No. 2, and No. 3 |
| AUX GND *2 | Ground for auxiliary jack assembly connection signal | |
| 5 | AUX DET | Connection signal for auxiliary jack assembly |
*1: Display audio type
*2: Color audio type
