BD Player Unit Connector for Inputs and Outputs
| Connector Index |
| BD Player Unit Connector A (12P) |
| BD Player Unit Connector B (2P) |
| BD Player Unit Connector C (2P) |

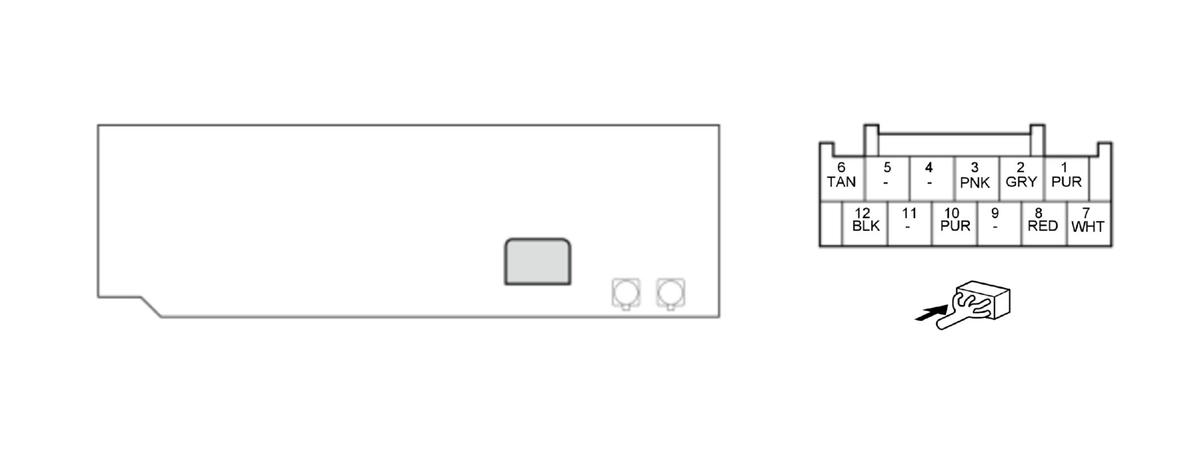

BD Player Unit Connector A (12P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| A1 |
MOST ECL 5 |
Inputs ECL signal |
| A2 |
ILLUMI+ |
Detects illumination on signal |
| A3 |
SCTY IN |
Security signal |
| A4 |
Not used |
--- |
| A5 |
Not used |
--- |
| A6 |
+B RADIO |
Continuous power source |
| A7 |
MOST ECL 1 |
Outputs ECL signal |
| A8 |
ILL-(LED) |
Inputs illumination control signal |
| A9 |
Not used |
--- |
| A10 |
SCTY 6 |
Security signal |
| A11 |
Not used |
--- |
| A12 |
GND |
Ground for BD player unit (G406) |

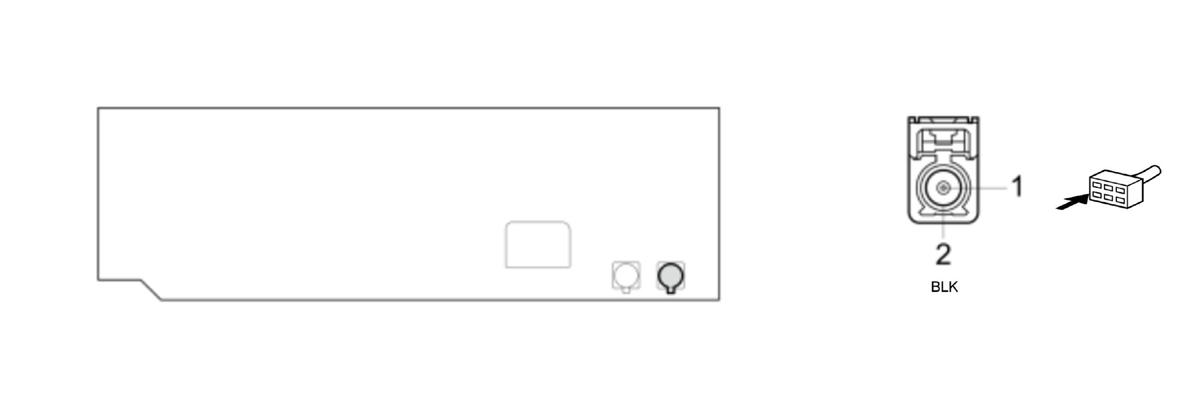

BD Player Unit Connector B (2P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| B1 |
MOST TX+ |
Outputs MOST communication signal |
| B2 |
MOST TX- |
Shield for terminal No. 1 |

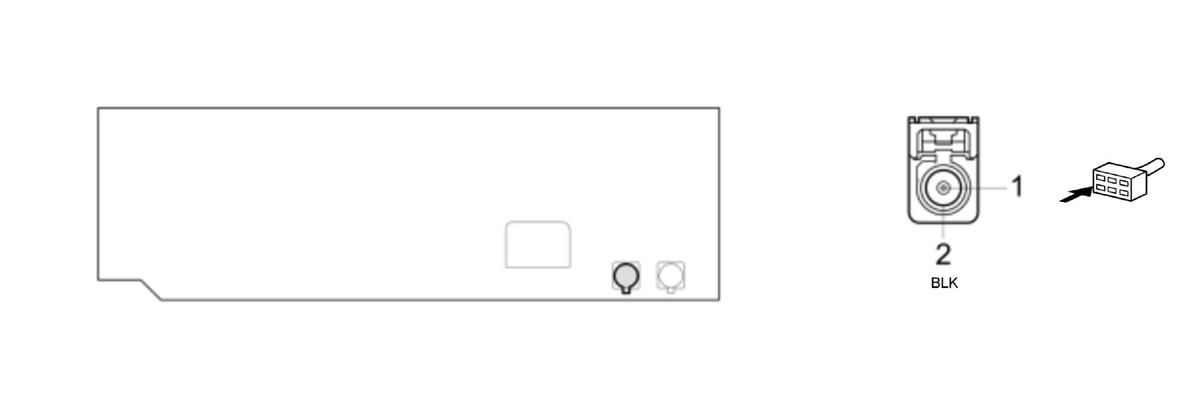

BD Player Unit Connector C (2P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| C1 |
MOST RX+ |
Inputs MOST communication signal |
| C2 |
MOST RX- |
Shield for terminal No. 1 |
