Center Display Unit Connector for Inputs and Outputs (2025)
| Connector Index |
| Center Display Unit Connector A (5P) |
| Center Display Unit Connector B (3P) |
Center Display Unit Connector A (5P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| A1 |
+B AUDIO |
Continuous power source |
| A2 |
Not used |
--- |
| A3 |
Not used |
--- |
| A4 |
DISP CONT |
Inputs signal for center display unit switching on/off |
| A5 |
PGND |
Ground for center display unit (G405) |

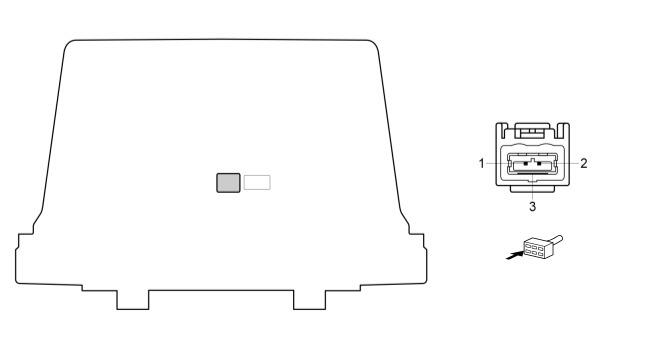

Center Display Unit Connector B (3P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| B1 |
LVDS1+ |
Communication signal for audio unit |
| B2 |
LVDS1- |
Communication signal for audio unit |
| B3 |
LVDS1 SH |
Shield for terminals No. 1 and No. 2 |
