Infotainment Control Unit Connector for Inputs and Outputs
| Connector Index |
|---|
| Infotainment Control Unit Connector A (20P) |
| Infotainment Control Unit Connector B (3P) |
| Infotainment Control Unit Connector C (5P) |
| Infotainment Control Unit Connector D (2P) |
| Infotainment Control Unit Connector E (2P) |
| Infotainment Control Unit Connector F (2P) |
| Infotainment Control Unit Connector G (12P) |
| Infotainment Control Unit Connector H (5P) |
| Infotainment Control Unit Connector J (5P) (With Telematics) |

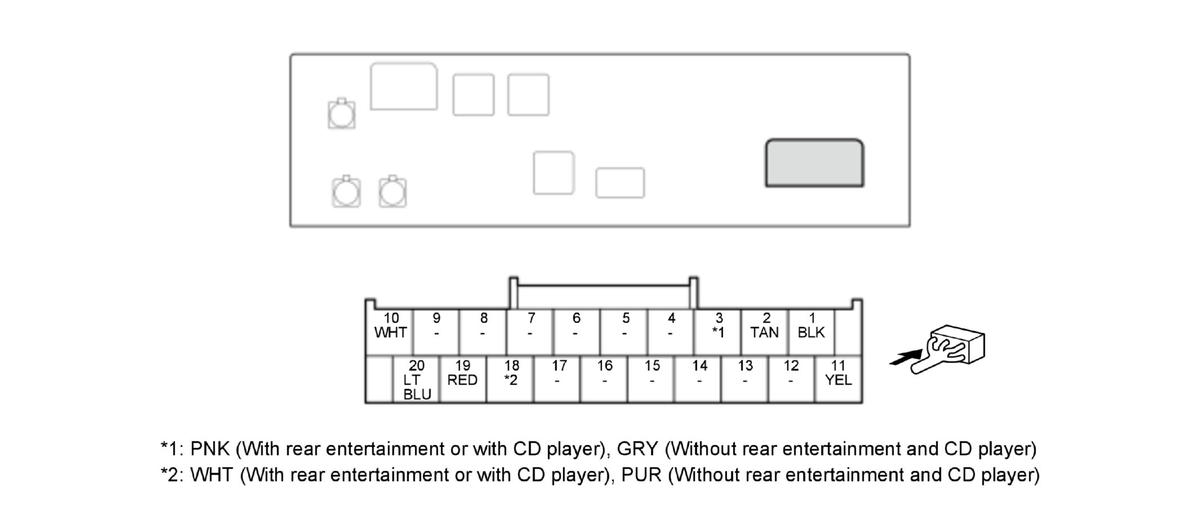

Infotainment Control Unit Connector A (20P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| A1 | GND | Ground for infotainment control unit (G405) |
| A2 | +B RADIO | Continuous power source |
| A3 | SCTY IN *1SCTY 02 *2 | Security signal |
| A4 | Not used | --- |
| A5 | Not used | --- |
| A6 | Not used | --- |
| A7 | Not used | --- |
| A8 | Not used | --- |
| A9 | Not used | --- |
| A10 | DISP CONT | Outputs signal for center display unit switching on/off |
| A11 *3 | BSM SW | Detects LaneWatch on/off signal from LaneWatch switch |
| A12 | Not used | --- |
| A13 | Not used | --- |
| A14 | Not used | --- |
| A15 | Not used | --- |
| A16 | Not used | --- |
| A17 | Not used | --- |
*1: With rear entertainment or with CD player
*2: Without rear entertainment and CD player
*3: With LaneWatch
| Cavity | Terminal Name | Description |
|---|---|---|
| A18 | MOST ECL 1 *1MOST ECL 3 *2 | Inputs ECL signal |
| A19 | MOST ECL 1 | Outputs ECL signal |
| A20 | K LINE | Detects scan tool signal (serial data) |
*1: With rear entertainment or with CD player
*2: Without rear entertainment and CD player
*3: With LaneWatch

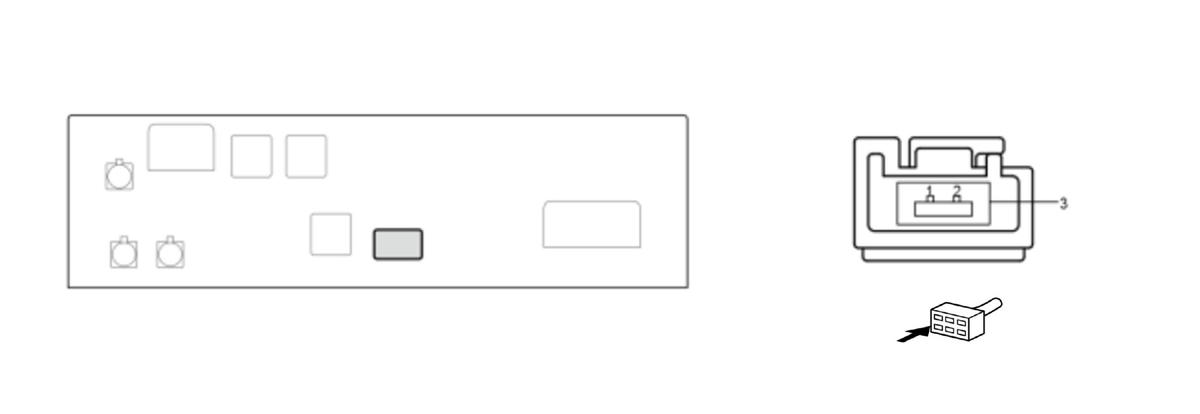

Infotainment Control Unit Connector B (3P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| B1 | LVDS+ | Communication signal for center display unit |
| B2 | LVDS- | Communication signal for center display unit |
| B3 | LVDS SH | Shield for terminals No. 1 and No. 2 |

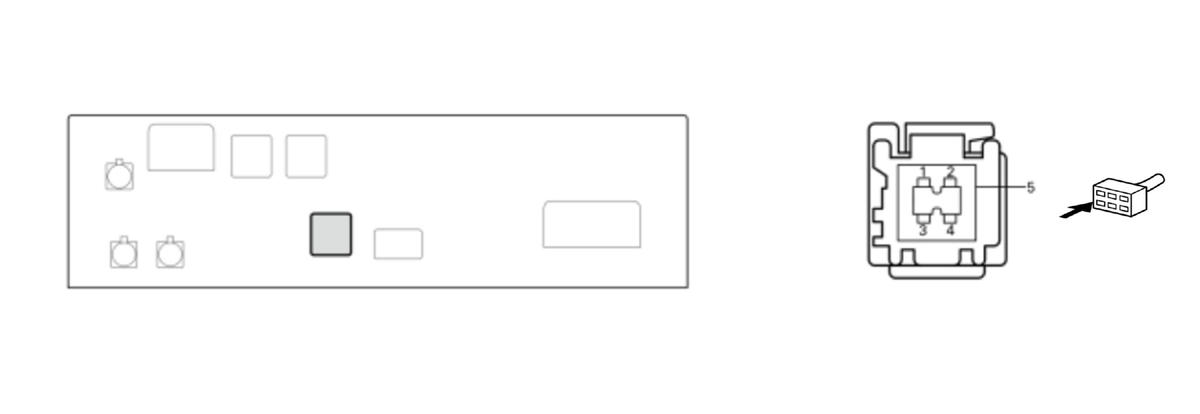

Infotainment Control Unit Connector C (5P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| C1 | USB1 GND | Ground for USB port A |
| C2 | USB1 VBUS | Outputs power source for USB port A |
| C3 | USB1 DATA+ | Communication signal |
| C4 | USB1 DATA- | Communication signal |
| C5 | USB1 SH | Shield for terminals No. 1, No. 2, No. 3, and No. 4 |

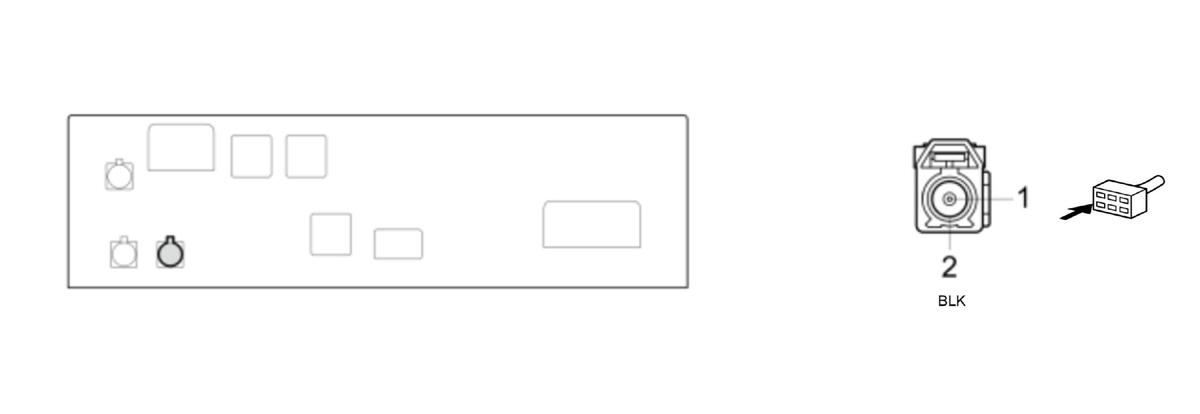

Infotainment Control Unit Connector D (2P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| D1 | MOST RX+ | Inputs MOST communication signal |
| D2 | MOST RX- | Shield for terminal No. 1 |

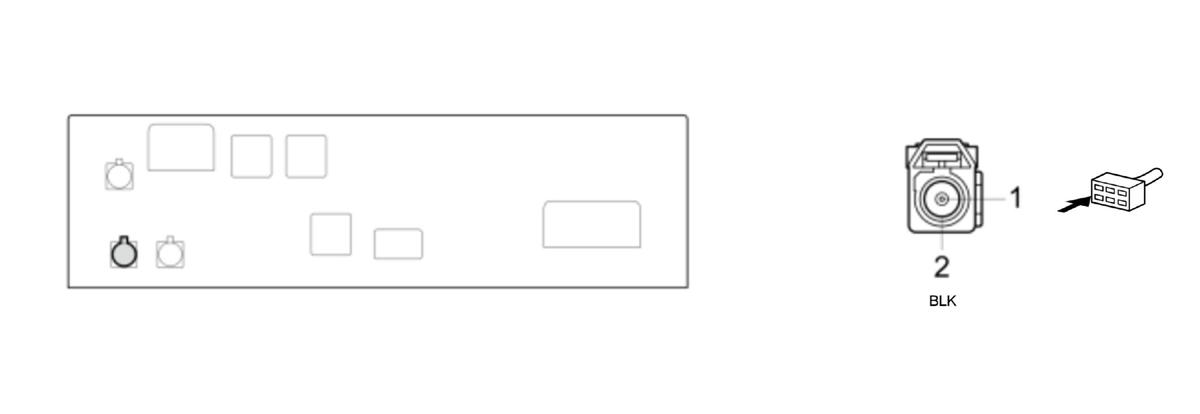

Infotainment Control Unit Connector E (2P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| E1 | MOST TX+ | Outputs MOST communication signal |
| E2 | MOST TX- | Shield for terminal No. 1 |

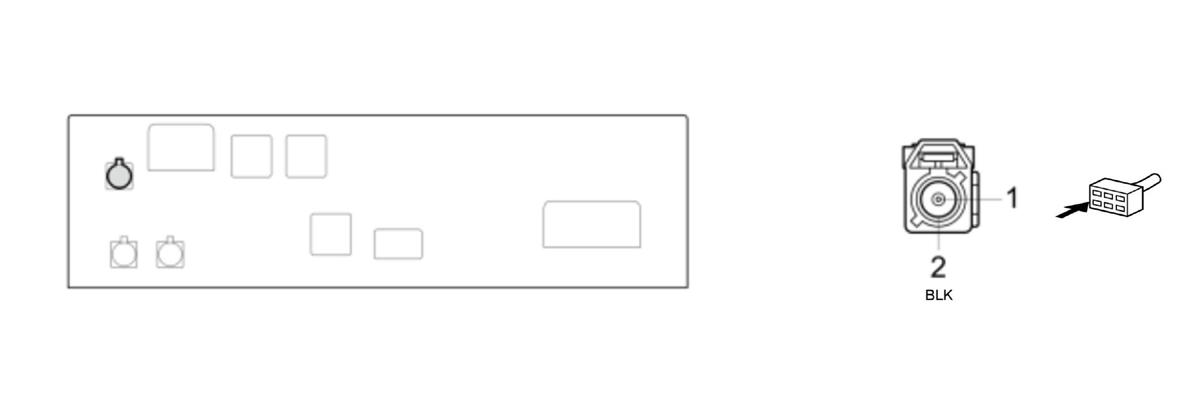

Infotainment Control Unit Connector F (2P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| F1 | GPS ANT(NAVI) | Inputs GPS signal |
| F2 | SH(GPS ANT(NAVI)) | Shield for terminal No. 1 |

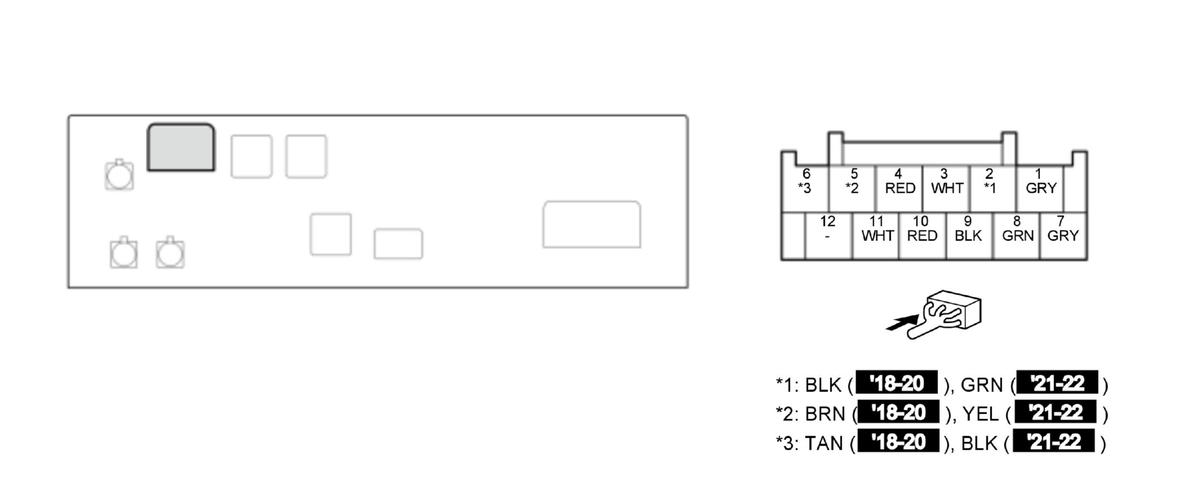

Infotainment Control Unit Connector G (12P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| G1 | SH CAM | Shield for terminals No. 2, No. 3, No. 4, No. 5 *2, and No. 6 *2 |
| G2 | CAM GND | Ground for rearview camera |
| G3 | CAM VCC *1RR CAM VCC *2 | Power source for rearview camera |
| G4 | CAM VID | Inputs NTSC video signal from rearview camera |
| G5 | CAM BIT0 | Outputs mode select signal for rearview camera |
| G6 | CAM BIT1 | Outputs mode select signal for rearview camera |
| G7 *3 | SH LWC CAM | Shield for terminals No. 8, No. 9, No. 10, and No. 11 |
| G8 *3 | LWC CAM VGND | Ground for LaneWatch camera |
| G9 *3 | LWC CAM VCC | Power source for LaneWatch camera |
| G10 *3 | LWC CAM VID | Inputs video signal from LaneWatch camera |
| G11 *3 | AS BSM BUS TX | Communication signal for LaneWatch camera |
| G12 | Not used | --- |
*1:'18-20
*2:'21-23
*3: With LaneWatch

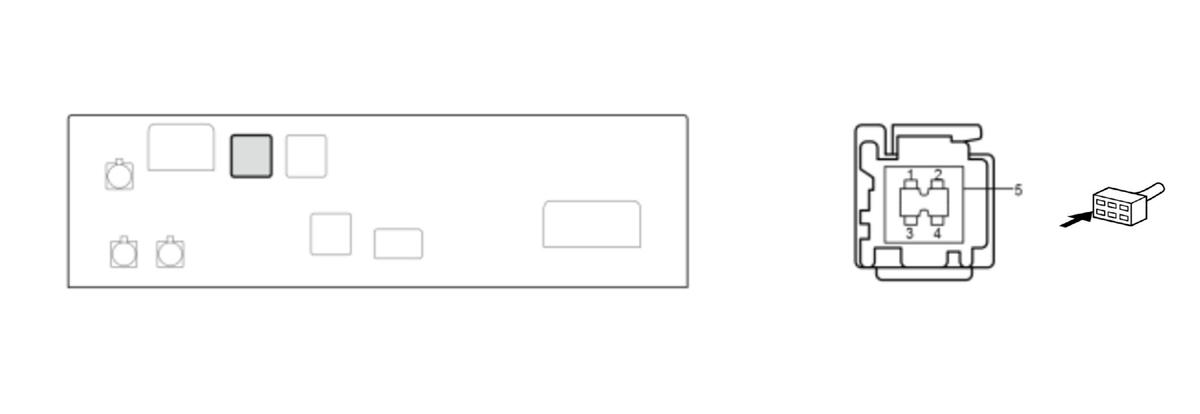

Infotainment Control Unit Connector H (5P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| H1 * | USB2 GND | Ground for USB |
| H2 * | USB2 VBUS | Outputs power source for USB |
| H3 * | USB2 DATA+ | Communication signal |
| H4 * | USB2 DATA- | Communication signal |
| H5 * | USB2 SH | Shield for terminals No. 1, No. 2, No. 3, and No. 4 |
*:'18-20 Canada models

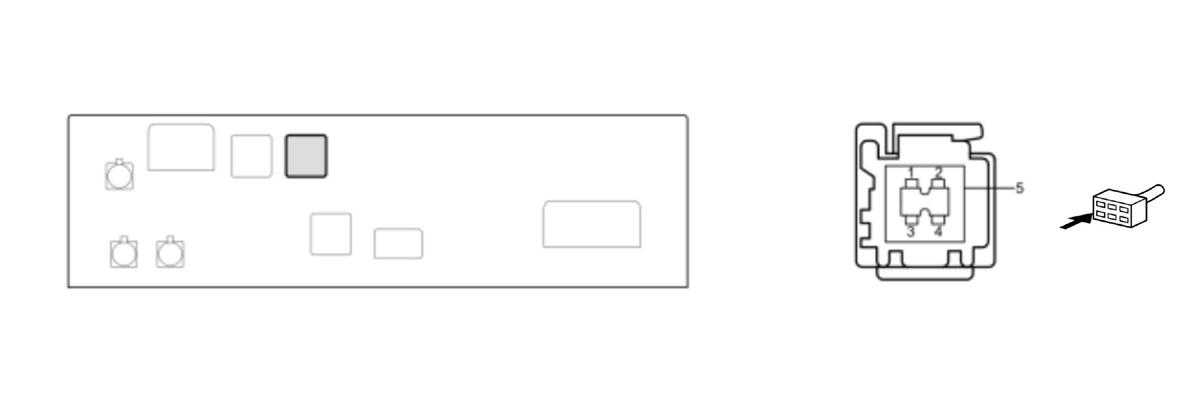

Infotainment Control Unit Connector J (5P) (female terminals) (With Telematics)
| Cavity | Terminal Name | Description |
|---|---|---|
| J1 | USB3 GND | Ground for USB |
| J2 | USB3 VBUS | Outputs power source for USB |
| J3 | USB3 DATA+ | Communication signal |
| J4 | USB3 DATA- | Communication signal |
| J5 | USB3 SH | Shield for terminals No. 1, No. 2, No. 3, and No. 4 |
