Near Field Communication Unit Connector for Inputs and Outputs

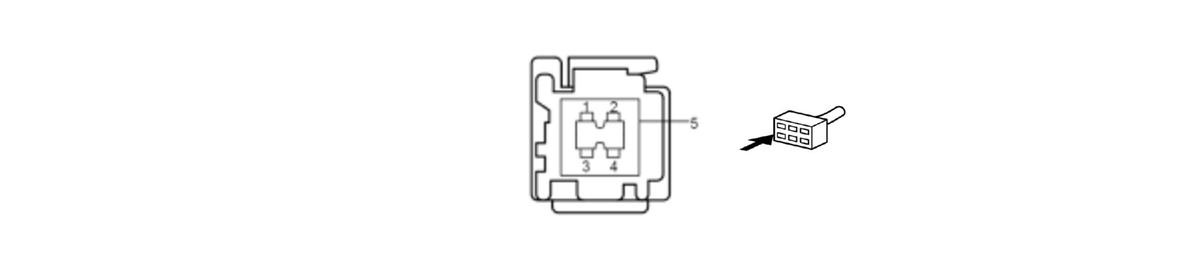

Near Field Communication Unit 5P Connector (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| 1 |
USB2 GND |
Ground for USB |
| 2 |
USB2 VBUS |
Outputs power source for USB |
| 3 |
USB2 DATA+ |
Communication signal |
| 4 |
USB2 DATA- |
Communication signal |
| 5 |
USB2 SH |
Shield for terminals No. 1, No. 2, No. 3, and No. 4 |
