Telematics Control Unit Connector for Inputs and Outputs (2025)
| Connector Index |
| Telematics Control Unit Connector A (32P) |
| Telematics Control Unit Connector B (5P) |

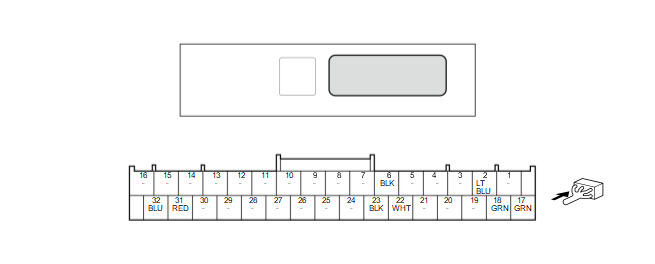

Telematics Control Unit Connector A (32P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| A1 |
Not used |
--- |
| A2 |
ACC(DC/DC) |
Power source for accessories |
| A3 |
Not used |
--- |
| A4 |
Not used |
--- |
| A5 |
Not used |
--- |
| A6 |
GND |
Ground for telematics control unit (G406) |
| A7 |
Not used |
--- |
| A8 |
Not used |
--- |
| A9 |
Not used |
--- |
| A10 |
Not used |
--- |
| A11 |
Not used |
--- |
| A12 |
Not used |
--- |
| A13 |
Not used |
--- |
| A14 |
Not used |
--- |
| A15 |
Not used |
--- |
| A16 |
Not used |
--- |
| A17 |
+B BACKUP2 MAIN |
Continuous power source |
| A18 |
IG1 METER(DC/DC) |
IG1 power source |
| A19 |
Not used |
--- |
| A20 |
Not used |
--- |
| A21 |
Not used |
--- |
| A22 |
YB-CAN B_L |
Communication signal |
| A23 |
YB-CAN B_H |
Communication signal |
| A24 |
Not used |
--- |
| A25 |
Not used |
--- |
| A26 |
Not used |
--- |
| A27 |
Not used |
--- |
| Cavity |
Terminal Name |
Description |
| A28 |
Not used |
--- |
| A29 |
Not used |
--- |
| A30 |
Not used |
--- |
| A31 |
YF-CAN_L |
Communication signal |
| A32 |
YF-CAN_H |
Communication signal |

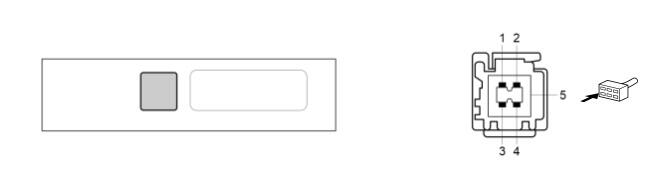

Telematics Control Unit Connector B (5P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| B1 |
TEL USB GND |
Ground for USB |
| B2 |
TEL USB VBUS |
Inputs power source for USB |
| B3 |
TEL USB DATA+ |
Communication signal |
| B4 |
TEL USB DATA- |
Communication signal |
| B5 |
TEL USB SH |
Shield for terminals No. 1, No. 2, No. 3, and No. 4 |
