Climate Control System Component Location Index

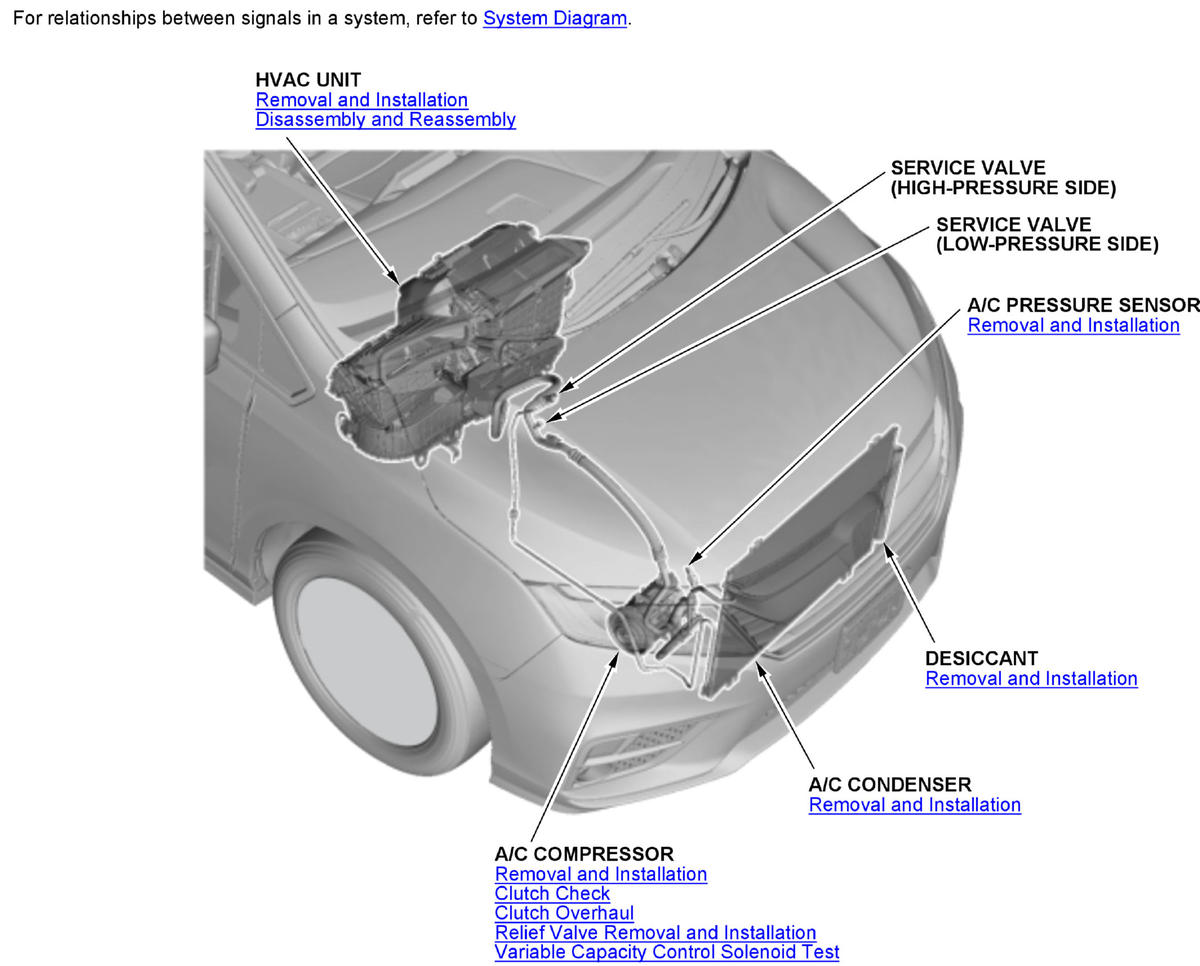

GHH445394Courtesy of HONDA, U.S.A., INC.

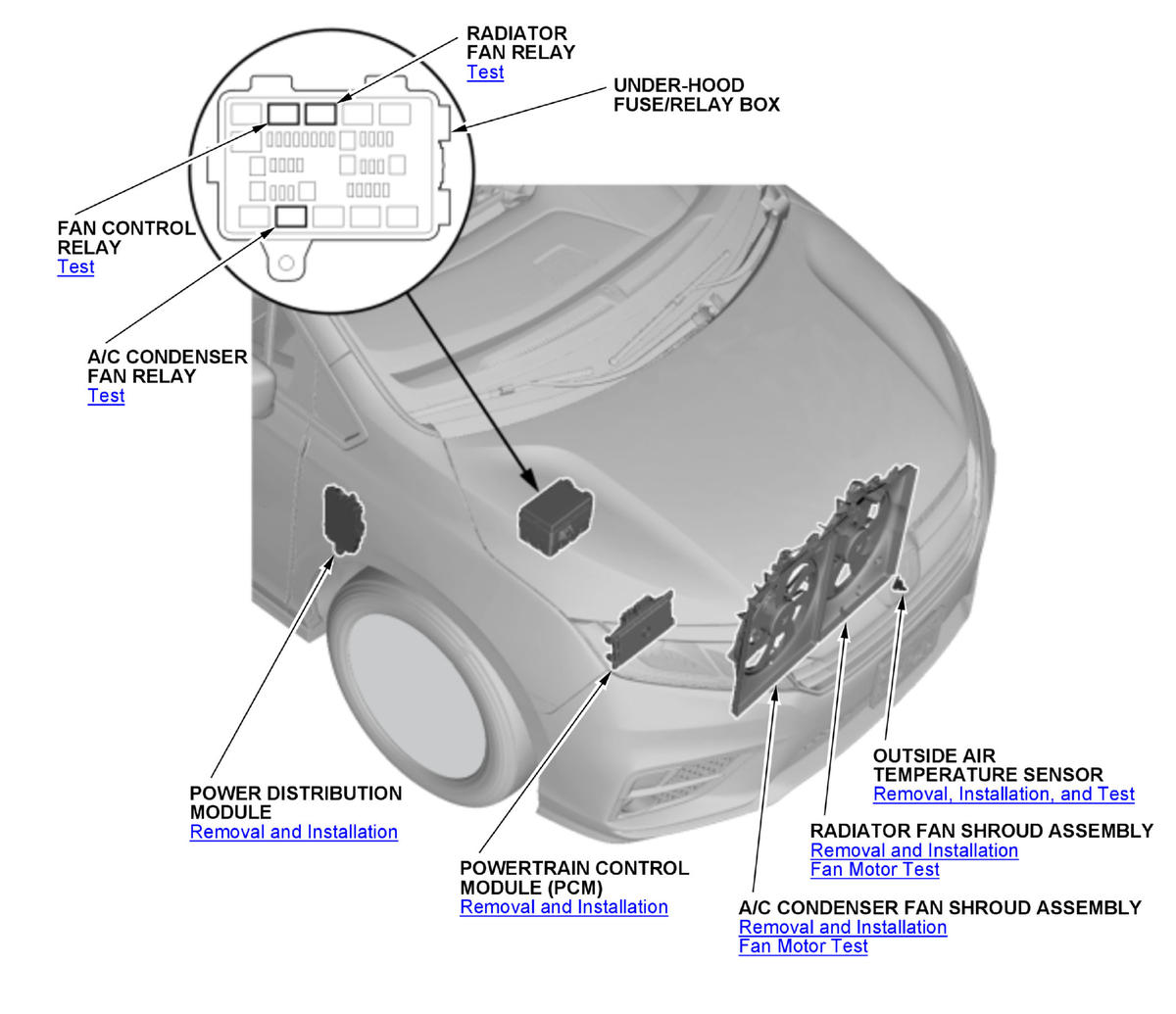

GHH445395Courtesy of HONDA, U.S.A., INC.

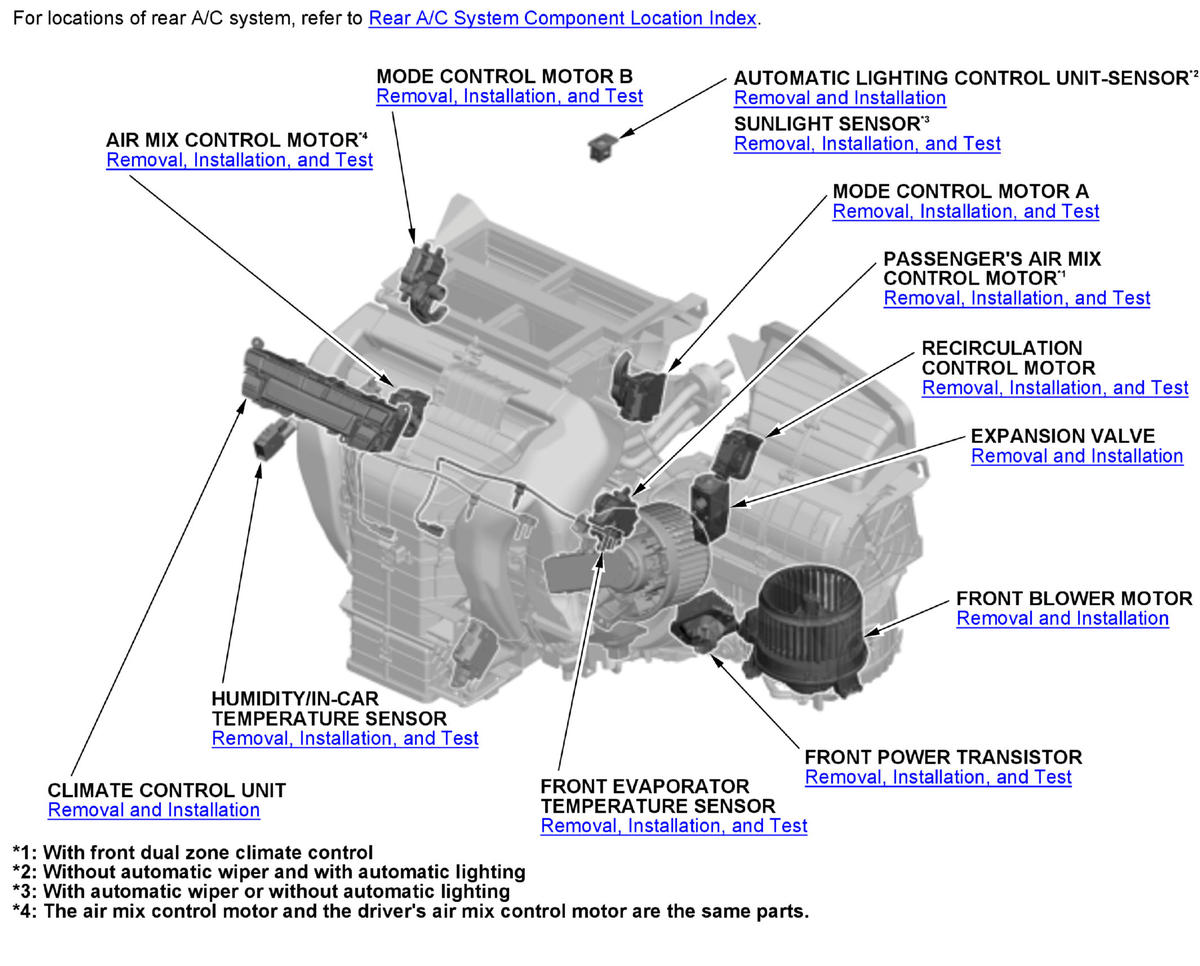

GHH445396Courtesy of HONDA, U.S.A., INC.

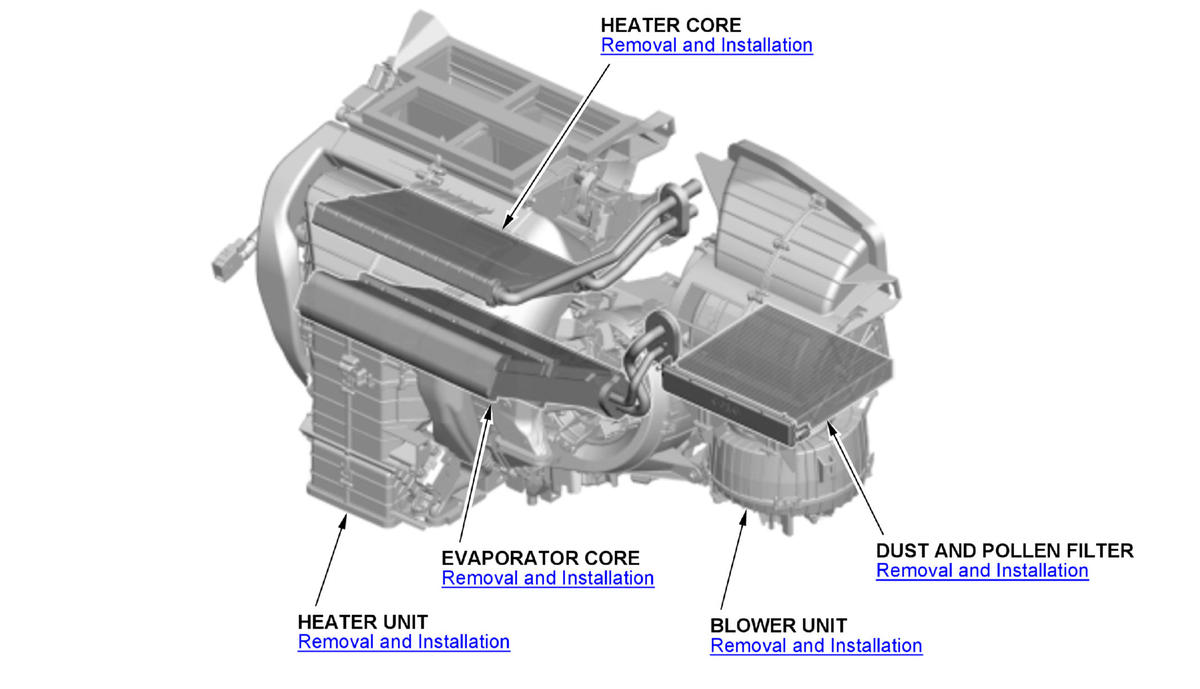

GHH445397Courtesy of HONDA, U.S.A., INC.
