Fuse/Relay Box Connector Locations

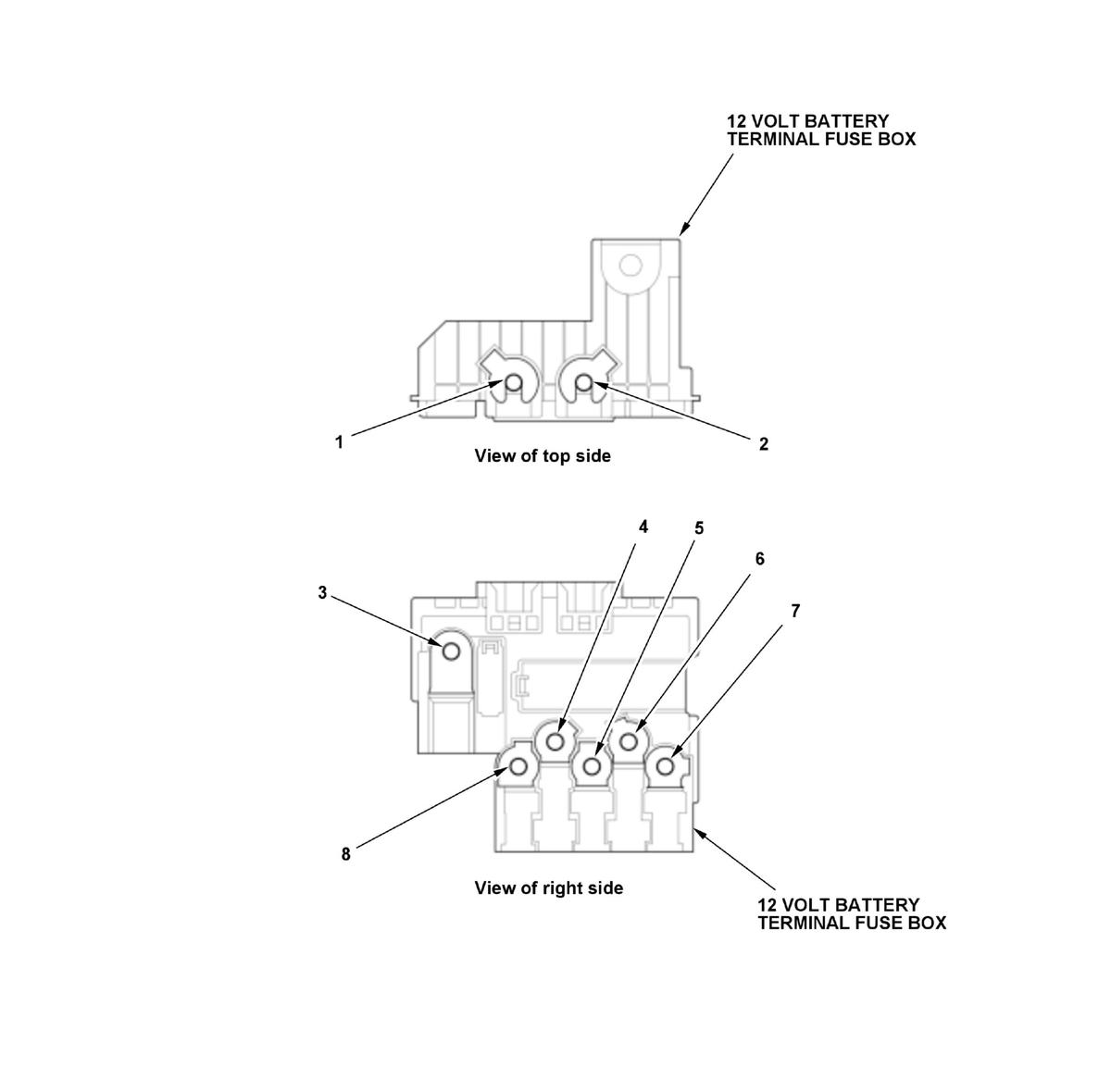

12 Volt Battery Terminal Fuse Box
| Socket | Ref | Terminal | Connects to | Notes |
|---|---|---|---|---|
| T1 | 1 | --- | Engine wire harness | |
| T2 | 2 | --- | Starter cable | |
| T3 | 3 | --- | Left engine compartment wire harness | |
| T4 | 8 | --- | Left engine compartment wire harness | |
| T5 | 4 | --- | Left engine compartment wire harness | |
| T6 | 5 | --- | Left engine compartment wire harness | |
| T7 | 6 | --- | Left engine compartment wire harness | |
| T8 | 7 | --- | Left engine compartment wire harness |

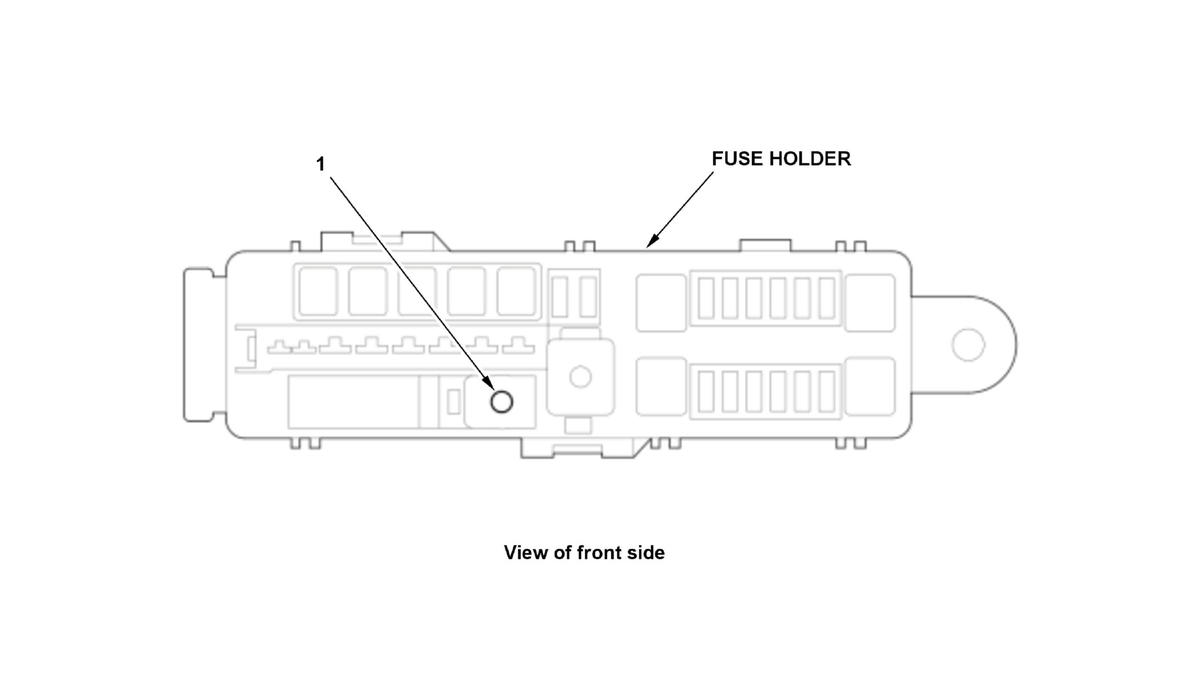

Fuse Holder
| Socket | Ref | Terminal | Connects to | Notes |
|---|---|---|---|---|
| T13 | 1 | --- | Left engine compartment wire harness |

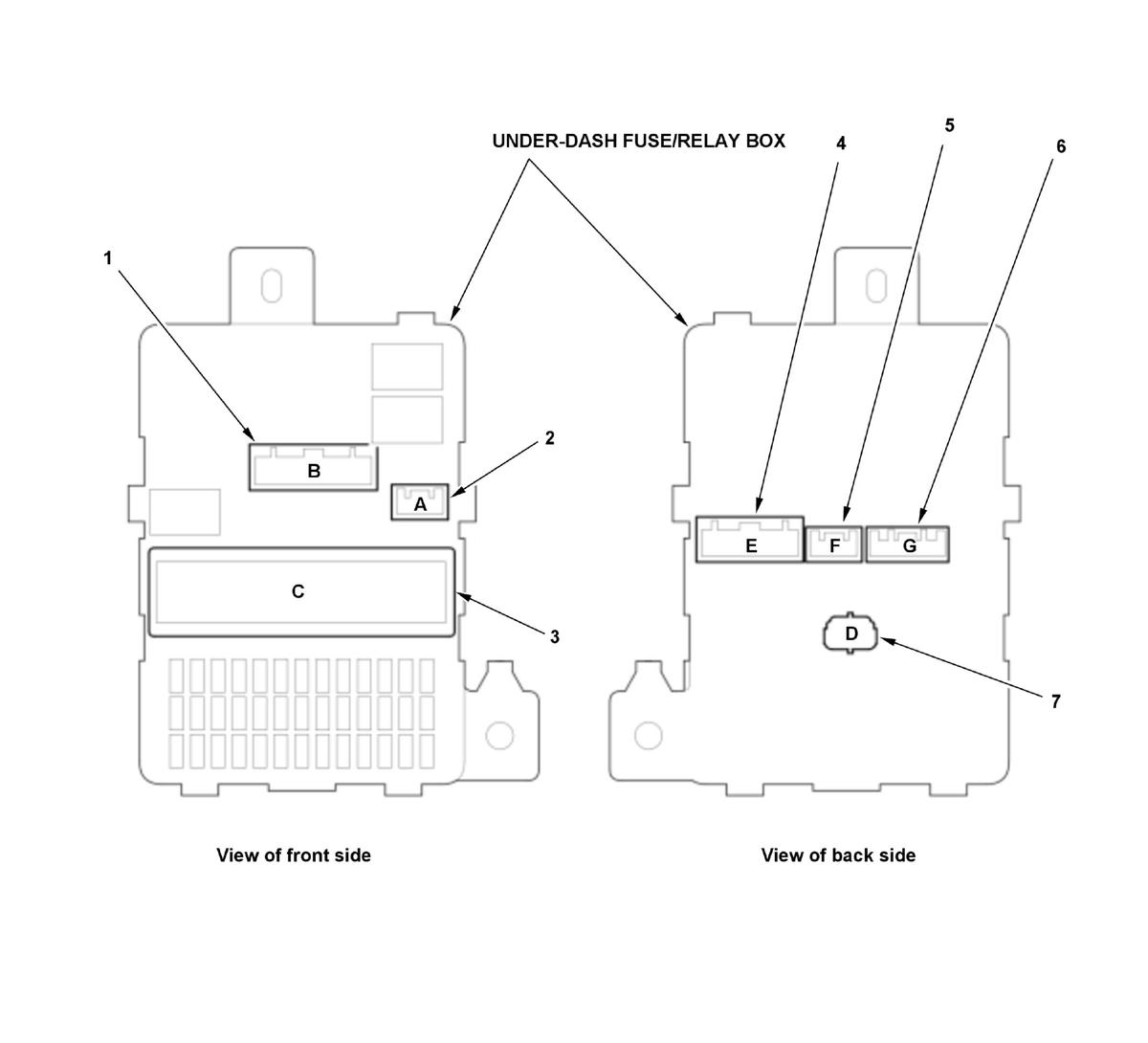

Under-Dash Fuse/Relay Box
| Socket | Ref | Terminal | Connects to | Notes |
|---|---|---|---|---|
| A (optional connector) | 2 | 4 | Not used | |
| B | 1 | 22 | Floor wire harness | |
| C | 3 | 27 | Left engine compartment wire harness | |
| D | 7 | 4 | Dashboard wire harness | |
| E | 4 | 18 | Dashboard wire harness | |
| F | 5 | 12 | Dashboard wire harness | |
| G | 6 | 20 | Dashboard wire harness |
