EPS Control Unit Connector for Inputs and Outputs

Connector Index
EPS Control Unit Connector A (2P)
EPS Control Unit Connector B (6P)
EPS Control Unit Connector C (4P)

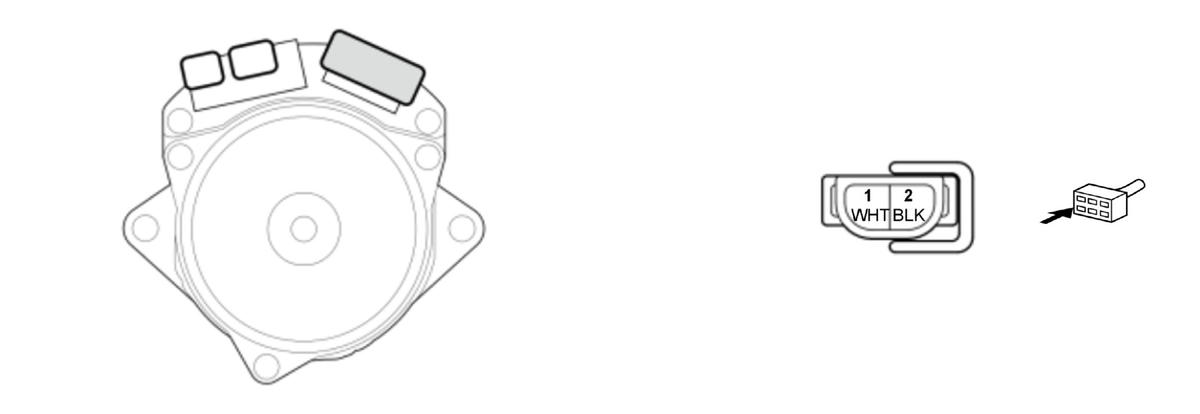

EPS Control Unit Connector A (2P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal sign	Description
1	+B EPS	Power source for the actuator EPS motor
2	GND	Ground for the EPS control unit

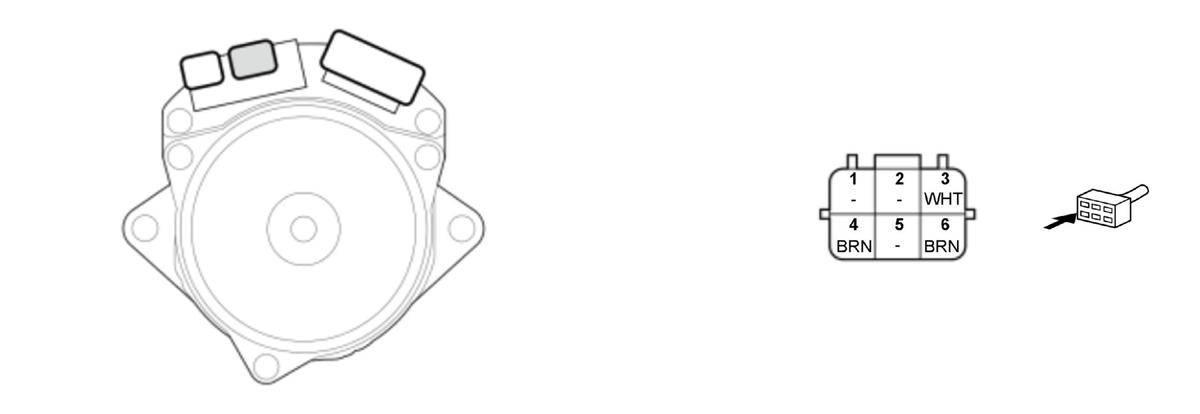

EPS Control Unit Connector B (6P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal sign	Description
1	Not used	---
2	Not used	---
3	F-CAN A H	F-CAN communication circuit
4	F-CAN A L	F-CAN communication circuit
5	Not used	---
6	IG1 VSA/ABS 1IG1 VSA (DC/DC) 2	Power source for activating the system

*1: Without auto idle stop system

*2: With auto idle stop system

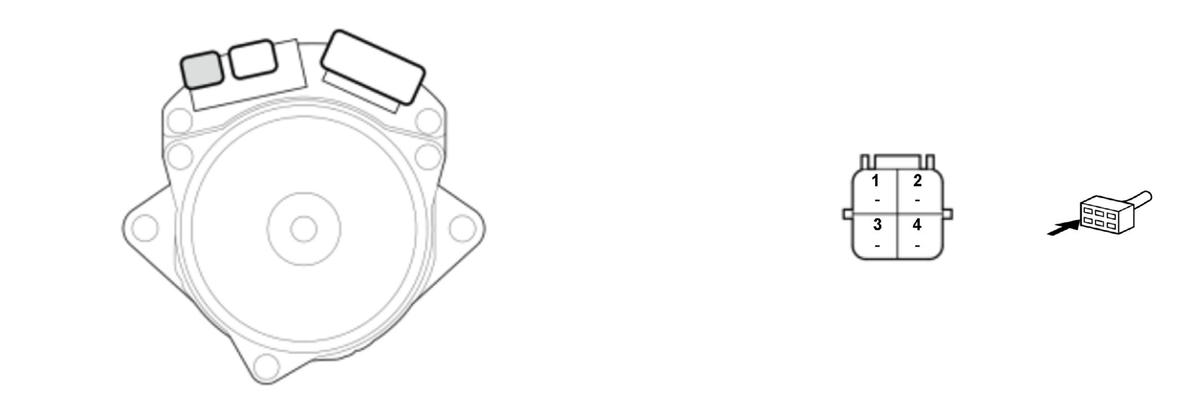

EPS Control Unit Connector C (4P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal sign	Description
1	TSV	Power source for torque sensor
2	TSS	Detects torque sensor sub signal
3	TSE	Ground for the torque sensor
4	TSM	Detects torque sensor main signal
