Without HDS
- Power Window Control Unit - Reset
1. Turn the vehicle to the ON mode.
2. Move the power window all the way down with the power window DOWN switch.

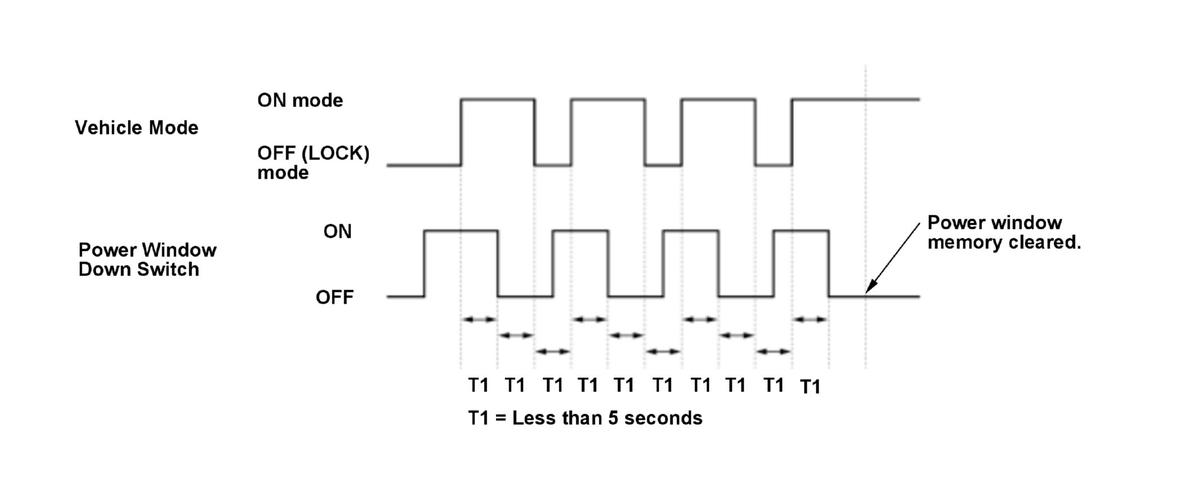

NOTE:Steps 3-6 must be done within 5 seconds of each other.
3. Turn the vehicle to the OFF (LOCK) mode.
4. Press and hold the power window DOWN switch.
5. Turn the vehicle to the ON mode.
6. Release the power window DOWN switch.
7. Repeat step 3-6 three more times.
8. Turn the vehicle to the OFF (LOCK) mode.
9. Wait at least 2 seconds.
10. Turn the vehicle to the ON mode.
11. Confirm that AUTO UP and AUTO DOWN do not work. If AUTO UP and DOWN work, go back to step 2.
12. Move the power window all the way down with the power window DOWN switch of the seat to be reset.
13. Pull up and hold the power window UP switch of the seat to be reset until the window reaches the fully closed position, then continue to hold the switch for at least 1 second.
14. Confirm that the power window control unit is reset by using the power window AUTO UP and AUTO DOWN functions:
- If the window still does not work in AUTO, repeat the procedure several times, paying close attention to the 5 seconds time limit between steps.
- If the window still does not work, refer to the power window master switch input test , front passenger's power window switch input test , and/or rear power window switch input test* .
*: With all power windows AUTO UP/DOWN function
