Retainer Replacement
A disconnected quick-connect fitting can be reconnected, but the retainer on the mating line cannot be reused once it has been removed from the line.
NOTE: Use the same manufacturer retainer and the same size retainer when replacing the retainer.
| Location | Manufacturer | Retainer color | Piping diameter | Remarks |

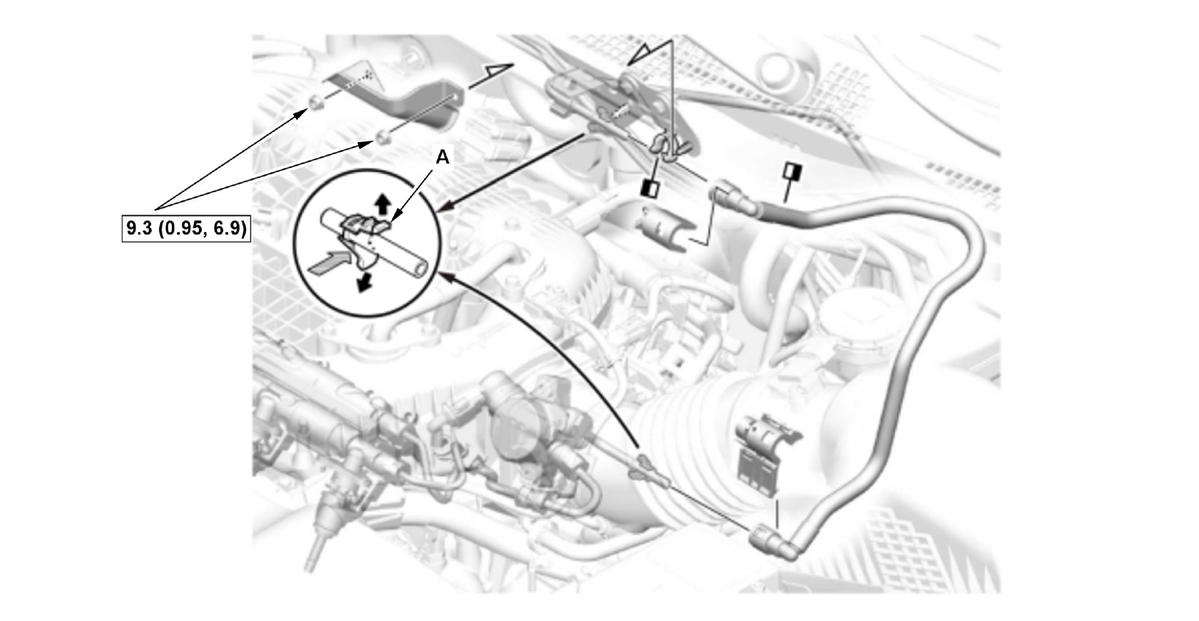

| Fuel feed pipe (high pressure fuel pump) (A) | Sumitomo Riko | Blue green | 8.0 mm (0.315 in) | |

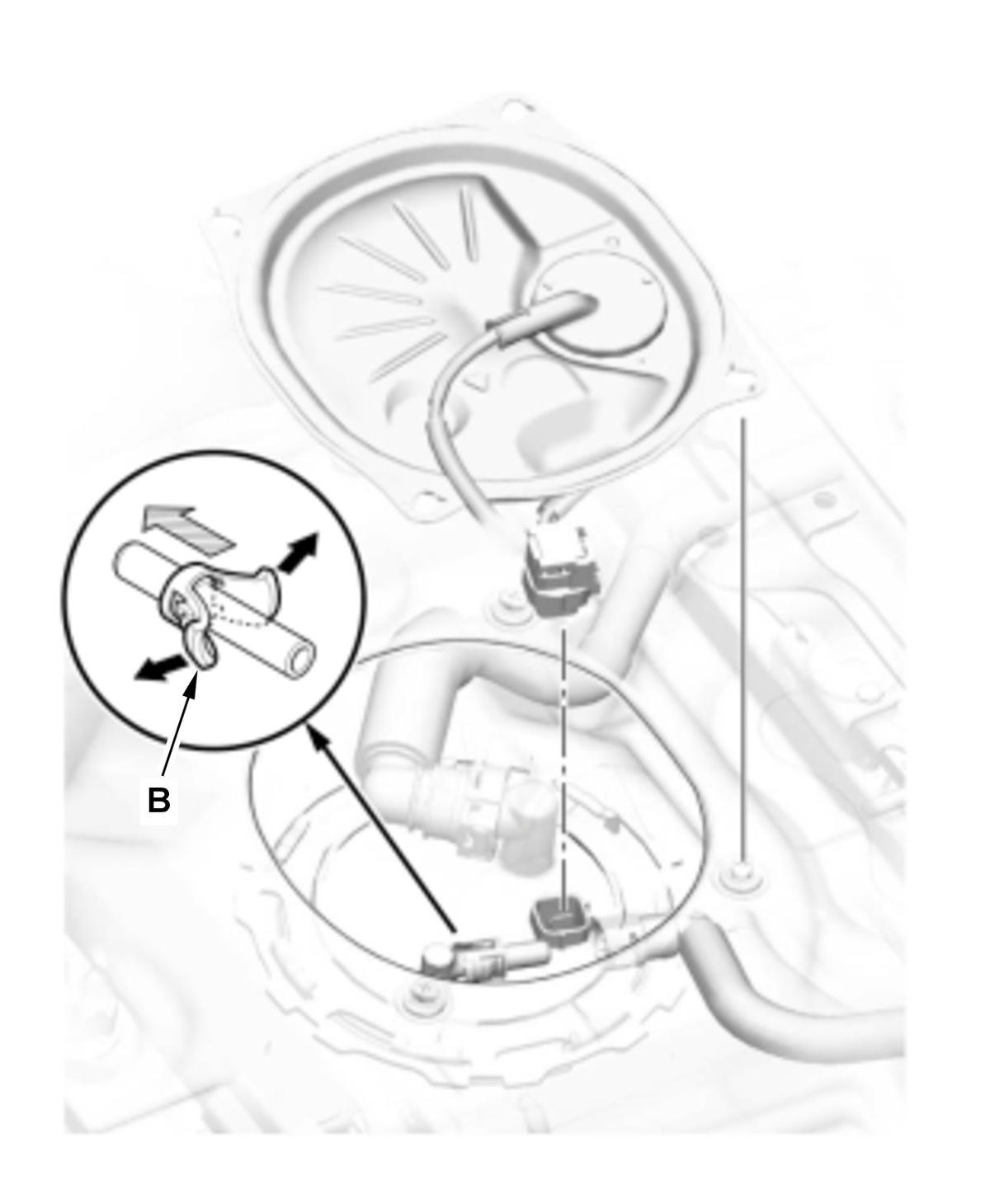

| Fuel tank unit (B) | Sanoh | White | 9.5 mm (0.374 in) | |

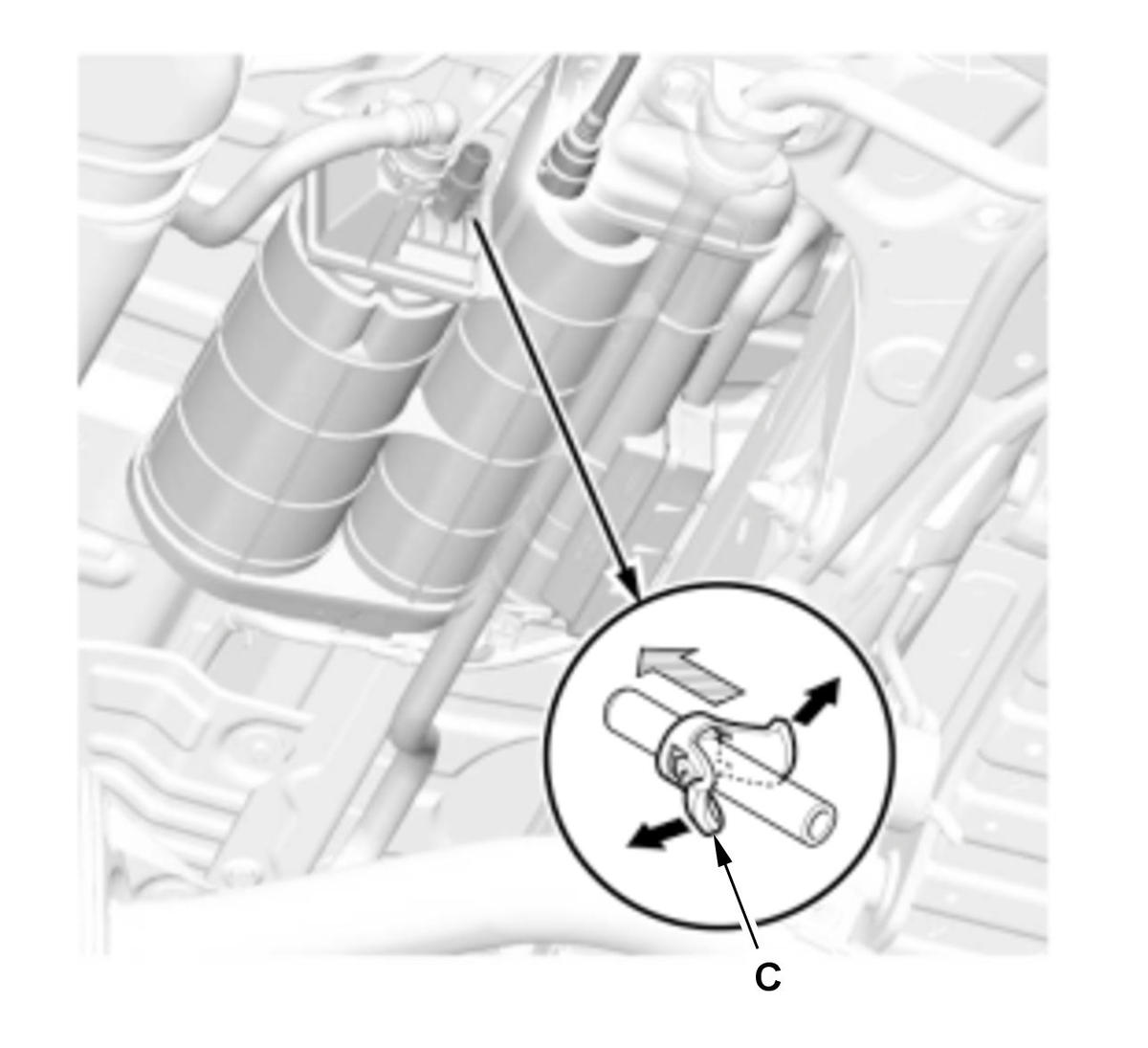

| EVAP canister (C) | Sanoh | White | 16.0 mm (0.630 in) | KA, KC |
