Operating Condition

Courtesy of HONDA, U.S.A., INC.

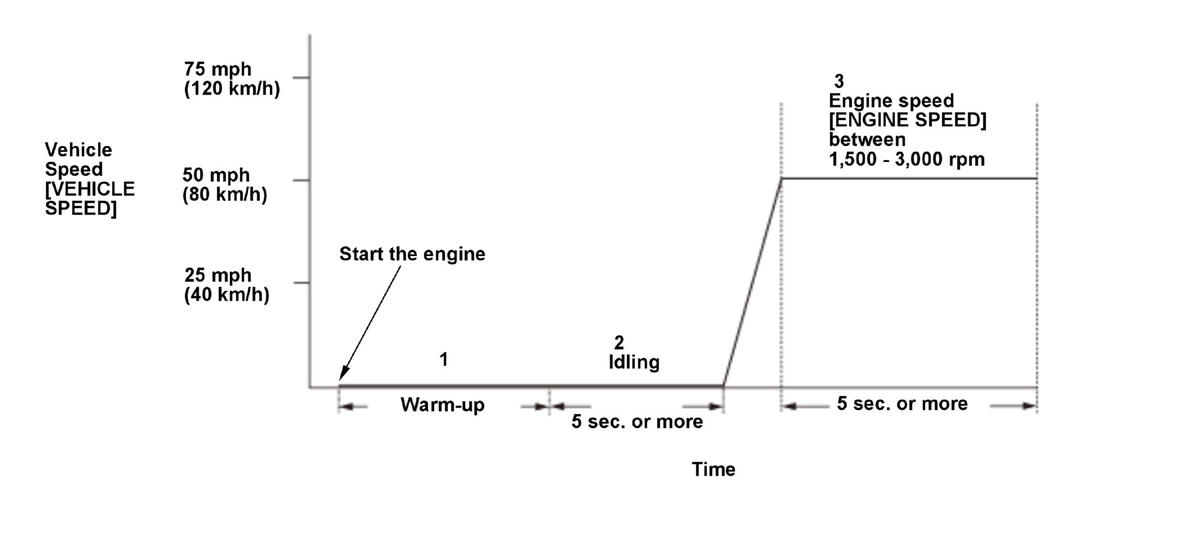

• Start the engine, and let it idle until the radiator fan comes on.
• Let the engine idle for at least 5 seconds.
• When the diagnosis does not finish at idle, drive immediately at a steady engine speed [ENGINE SPEED] between 1, 500 - 3, 000 rpm for at least 5 seconds.

• When freeze data or on-board snapshot is stored, drive the vehicle under those conditions instead of Driving Pattern step 3.
• Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.

With the HDS

None.
