Exploded View

NOTE:

• For these operations, refer to the complete procedure as needed.
  1. -

     Rack end removal and installation

  2. -

     Tie-rod end ball joint boot replacement

  3. -

     EPS motor/control unit removal and installation

• Check for deterioration and damage to each part during removal.

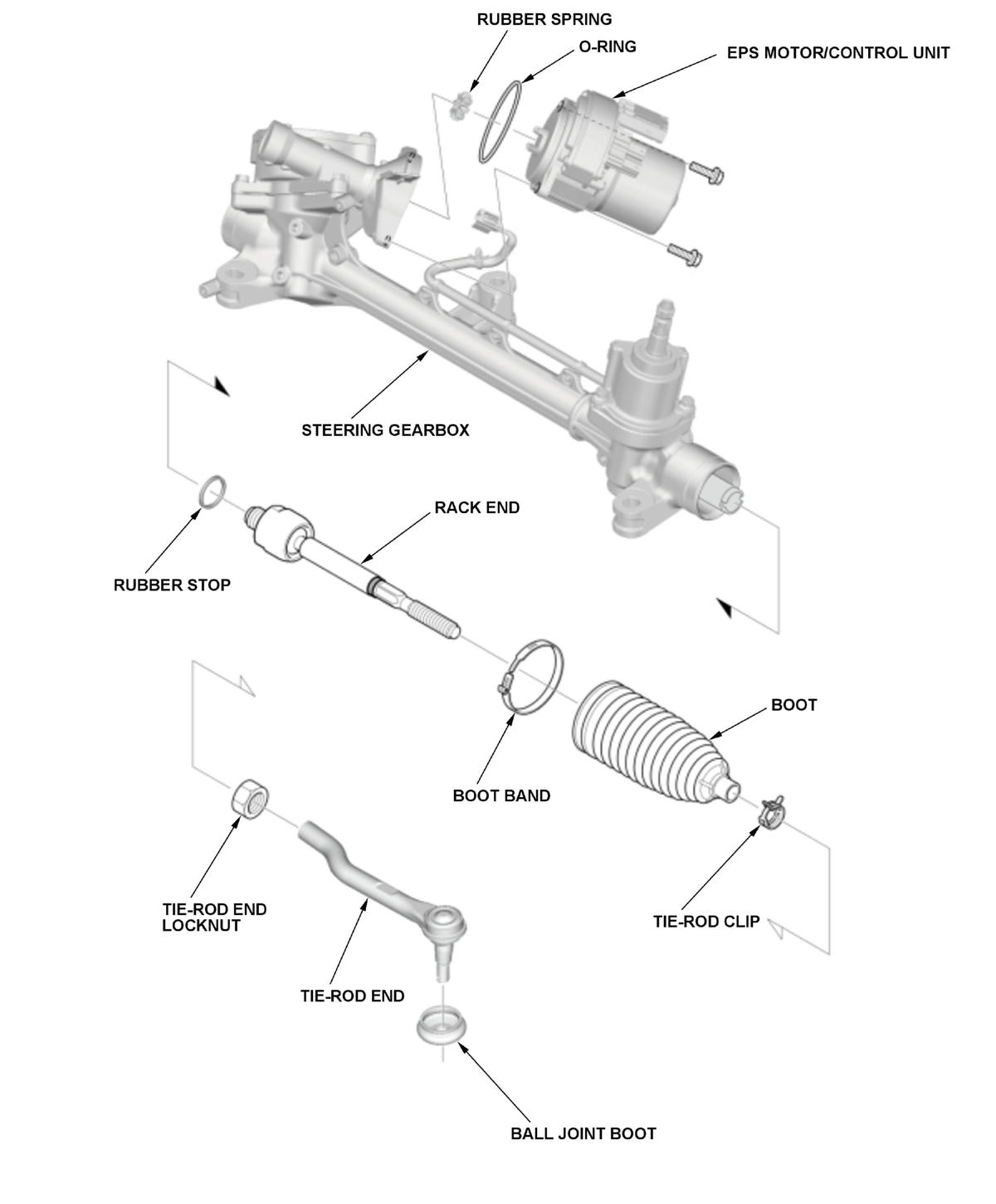

1. Steering Gearbox

   Exploded view

   Courtesy of HONDA, U.S.A., INC.
