Security System / Keyless Entry System - Service, Testing And Troubleshooting
>>
Description & Operation
>>
Keyless Access System Description - System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

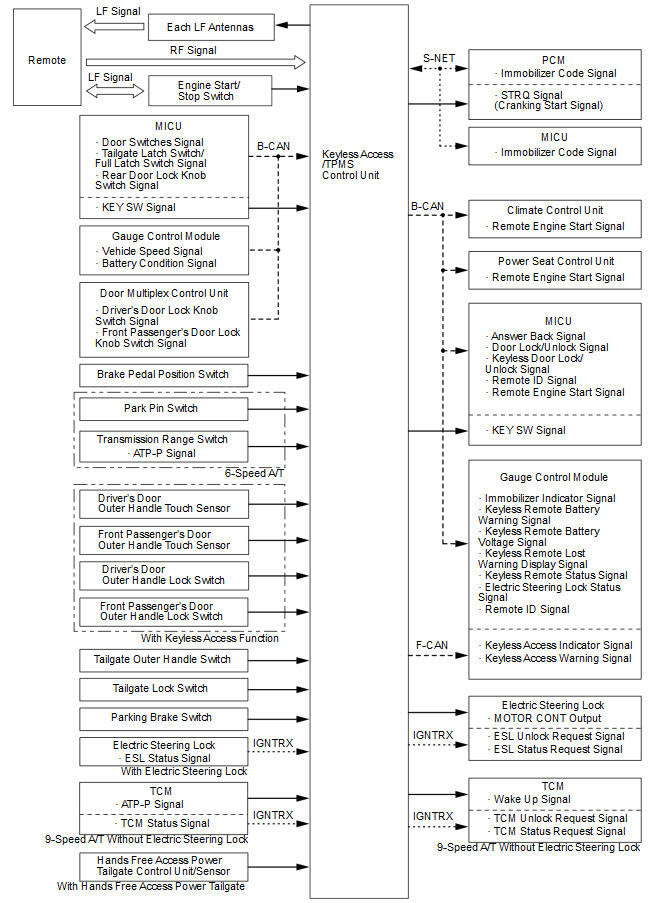

Keyless Access System Description - System Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
