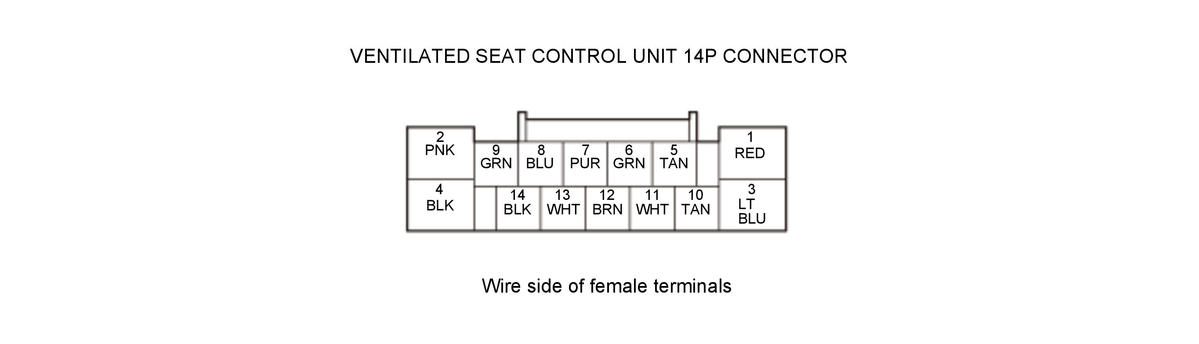

Ventilated Seat Control Unit Connector For Inputs And Outputs
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | DR HT | Drives driver's seat heater | With driver's seat heater operation: pulse (depending on driver's seat temperature) If none of above conditions are met: less than 0.2 V |
| 2 | +B H/SEAT UNIT | Power source for ventilated seat control unit | With vehicle in ON mode: about battery voltage |
| 3 | PS HT | Drives passenger's seat heater | With front passenger's seat heater operation: pulse (depending on front passenger's seat temperature) If none of above conditions are met: less than 0.2 V |
| 4 | GND | Ground for ventilated seat control unit | Less than 0.2 V at all times |
| 5 | PS FAN | PS FAN signal | When front passenger's seat blower motor operation: pulse (depending on front passenger's seat blower motor operation level) |
| 6 | PS TH- | PS TH- signal | Less than 0.2 V at all times |
| 7 | DR TH- | DR TH- signal | Less than 0.2 V at all times |
| 8 | DR FAN | DR-FAN signal | - - - |
| 9 | IG1 METER (DC/DC) | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 10 | B-CAN_L | Communication line | - - - |
| 11 | B-CAN_H | Communication line | - - - |
| 12 | PS TH+ | PS TH+ signal | With vehicle in ON mode: about 0.4 - 4.9 V (depending on front passenger's seat temperature) |
| 13 | DR TH+ | DR TH+ signal | With vehicle in ON mode: about 0.4 - 4.9 V (depending on driver's seat temperature) |
| 14 | GND | Ground for ventilated seat control unit | - - - |
