Windows / Glass - Testing & Troubleshooting: Description: Control/Function

Basic Control/Function

• Manual Up/Down Function

  The 1-step operation of the power window switch moves the window up or down. This is available during the vehicle in the ON mode or the vehicle OFF operation.

• Auto Up/Down Function (Front Windows Only)

  The 2-step operation of the power window switch moves the window up or down. This is available during the vehicle in the ON mode or the vehicle OFF operation.

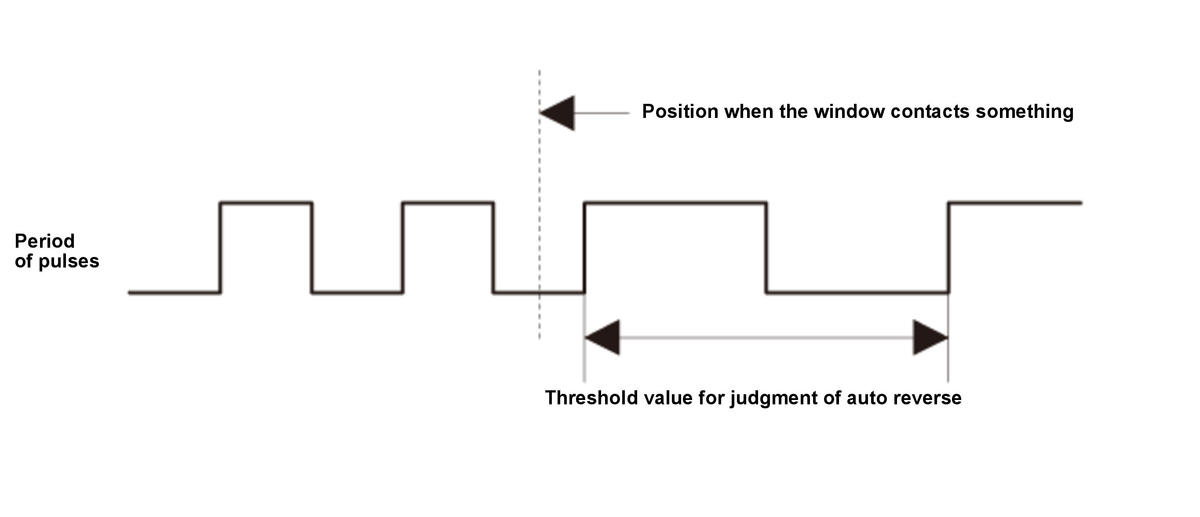

Auto Reverse Power Window Function

When some object is detected during the AUTO UP operation, the window stops closing and reverses about 70 mm (2.76 in). If the window is less than halfway opened (about 220 mm (8.66 in)) it will reverse to half open position (about 220 mm (8.66 in)) In manual operation, this function is active only during the vehicle OFF operation. This function is activated based on the calculation of the rotation speed and load change of the motor's pulse A.

Courtesy of HONDA, U.S.A., INC.

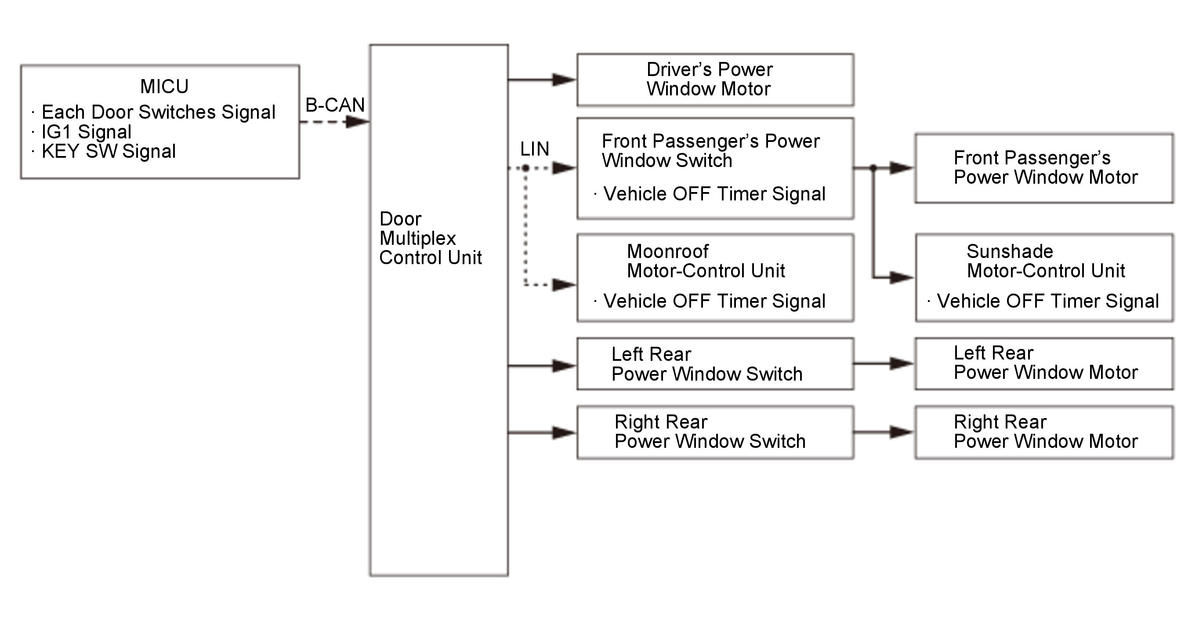

Vehicle OFF Operation

For about 10 minutes after the vehicle is turned to the OFF (LOCK) mode, the window's open/close operation with the power window switches is available.

Courtesy of HONDA, U.S.A., INC.

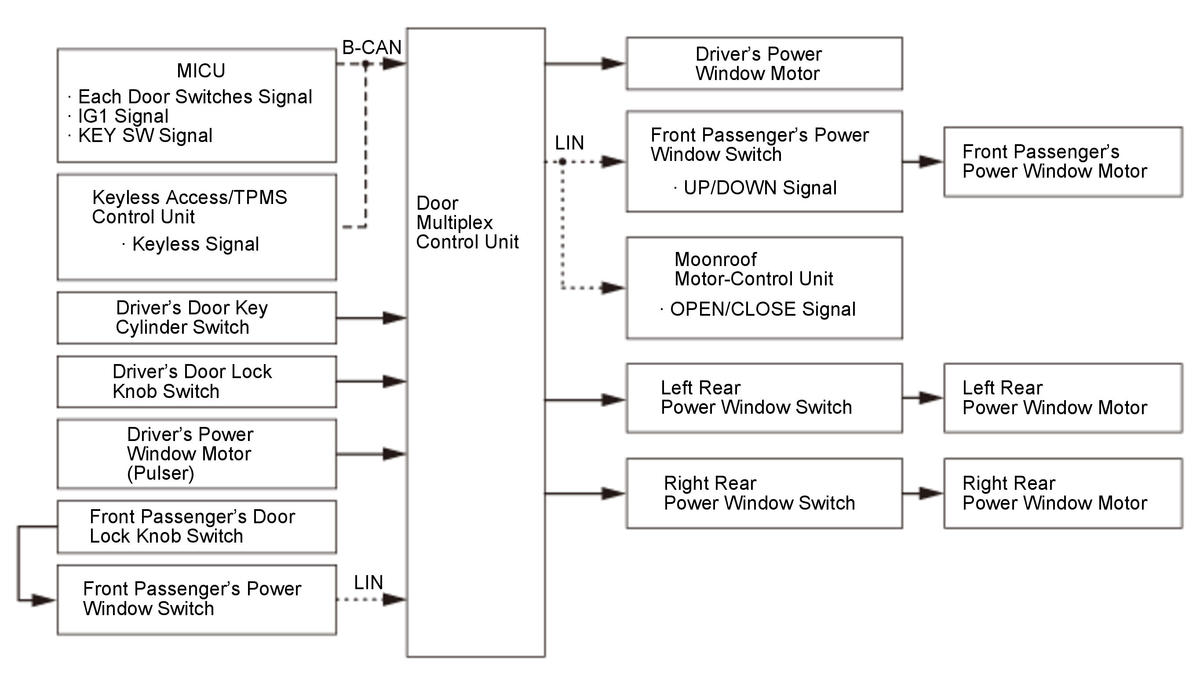

Keyless/Key Cylinder Operation

By turning the key a second time and holding it with the key inserted into the driver's door key cylinder, the windows and moonroof close (or open) (turning the key clockwise to open, turning the key counterclockwise to close). The windows and moonroof stop moving when the key is returned to the neutral position.

By pressing and holding the UNLOCK button of the remote a second time, the windows and moonroof open. The windows and moonroof stop moving when the UNLOCK button is released. The windows do not close with the LOCK button.

Courtesy of HONDA, U.S.A., INC.
