Removal and Installation

  1. Accelerator Pedal Module - Remove

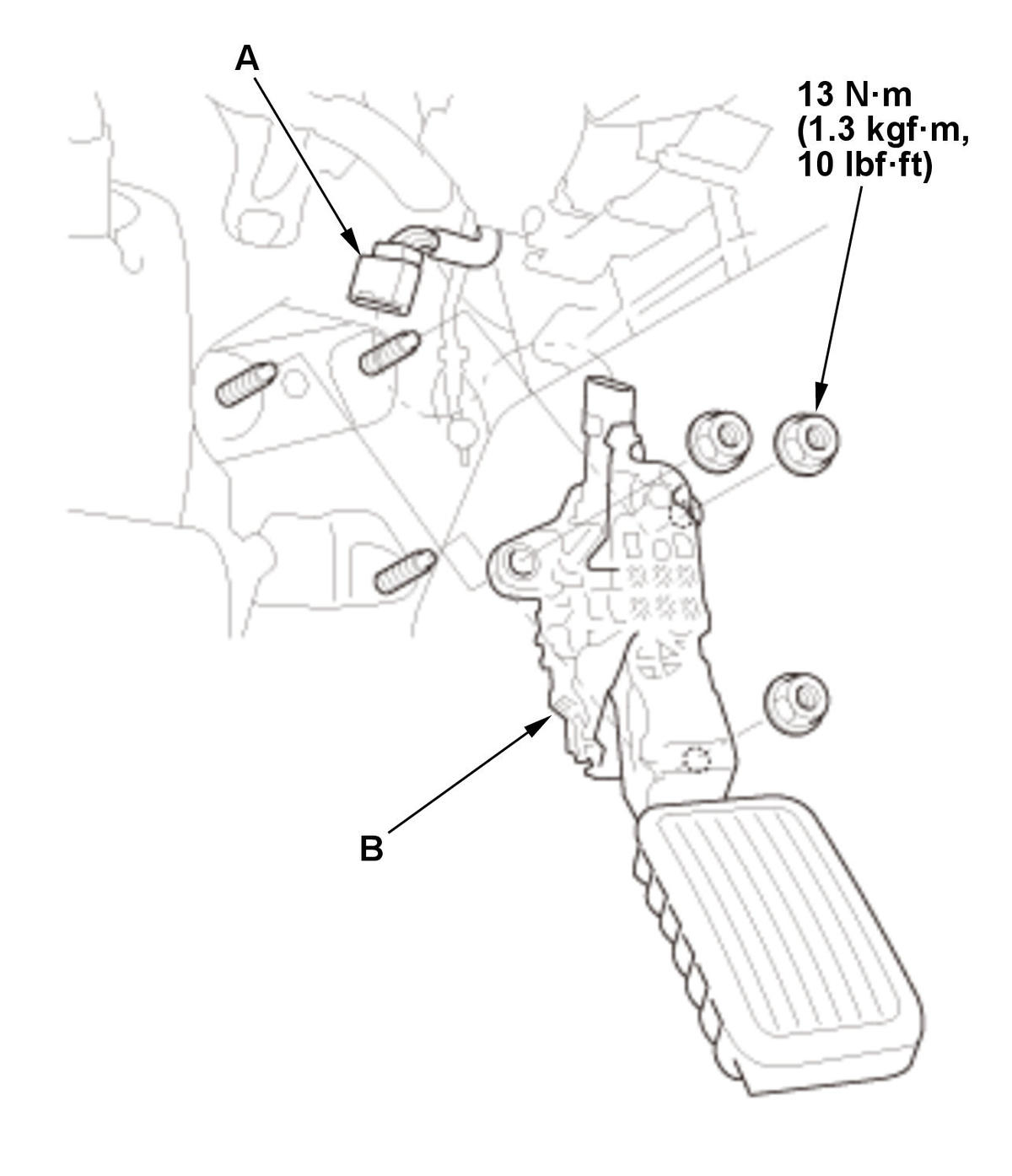

    Fig 1: Accelerator Pedal Module With Torque Specifications
    GHH308444Courtesy of HONDA, U.S.A., INC.
    1. Disconnect the connector (A).

    2. Remove the accelerator pedal module (B).

    NOTE:  The APP sensor is not available separately. Do not disassemble the accelerator pedal module.
  2. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
