Removal and Installation

  1. Vehicle - Lift
  2. Rear wheels - Remove (AWD model)
  3. Exhaust Pipe and Muffler - Remove (AWD model)
  4. Propeller Shaft - Remove (AWD model)
  5. EVAP Canister Assembly - Remove

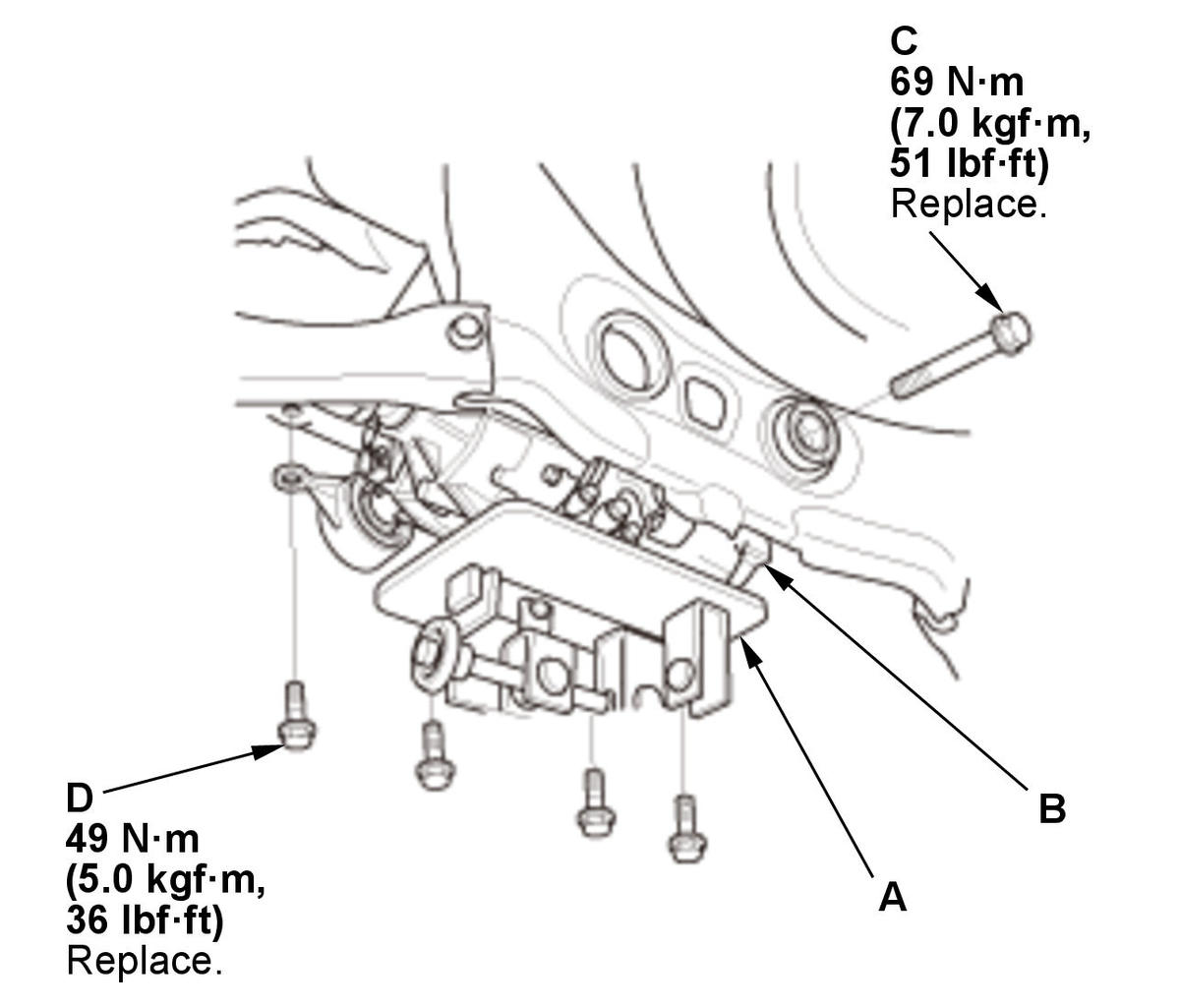

    Fig 1: EVAP Canister Assembly With Torque Specifications
    GHH308478Courtesy of HONDA, U.S.A., INC.
    1. AWD model: Place a transmission jack (A) under the rear differential (B).

    2. AWD model: Remove the rear differential rear mount bolt (C) and the rear differential front mounting bracket bolts (D).

    3. AWD model: Lower the transmission jack and rear differential about 1.18 in (30 mm).

    NOTE:  Be careful not to damage the connecting parts.

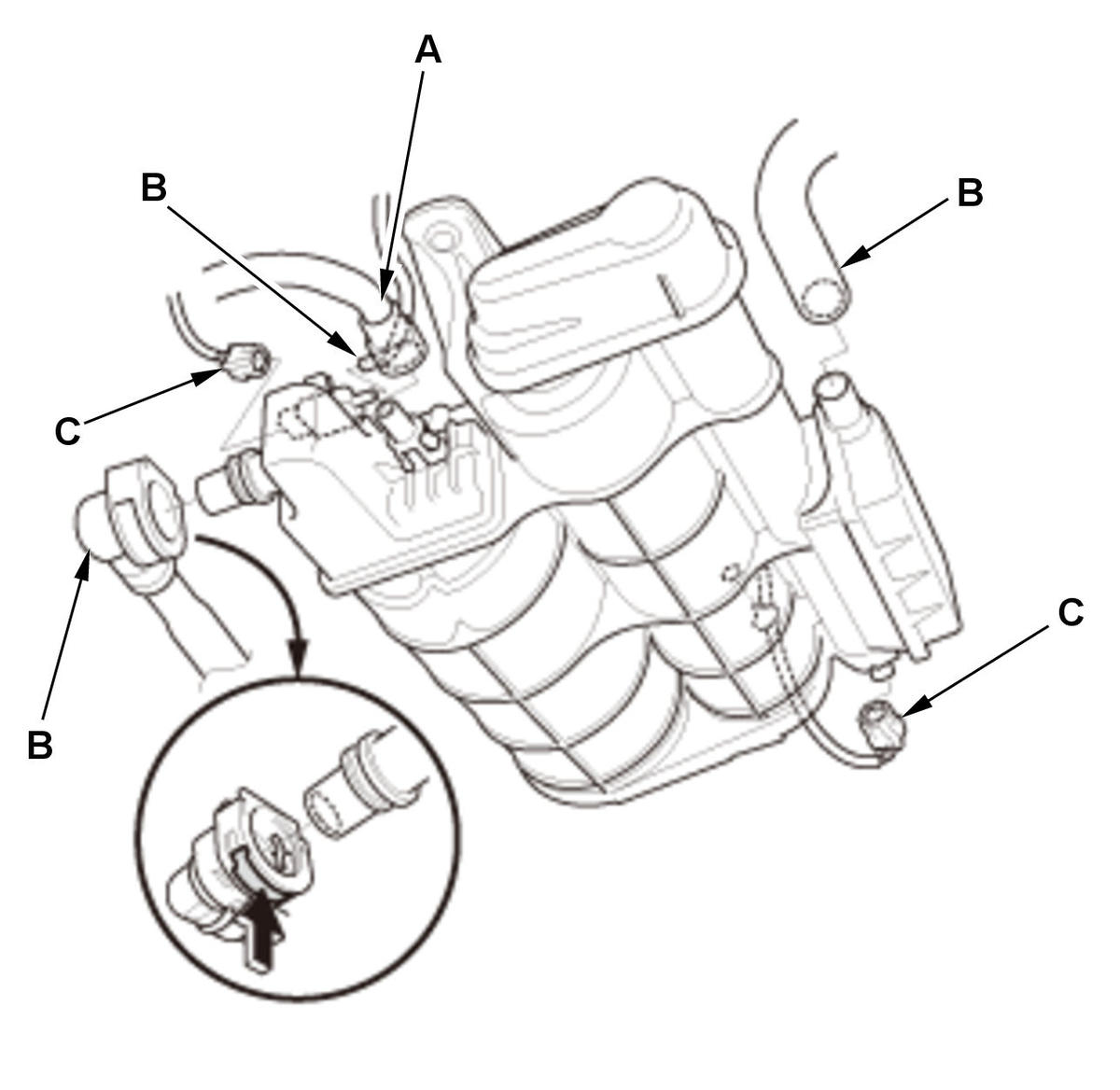

    GHH308479Courtesy of HONDA, U.S.A., INC.
    		 4. Disconnect the quick-connect fitting

    (A) and the hoses (B).

    5. Disconnect the connectors (C).

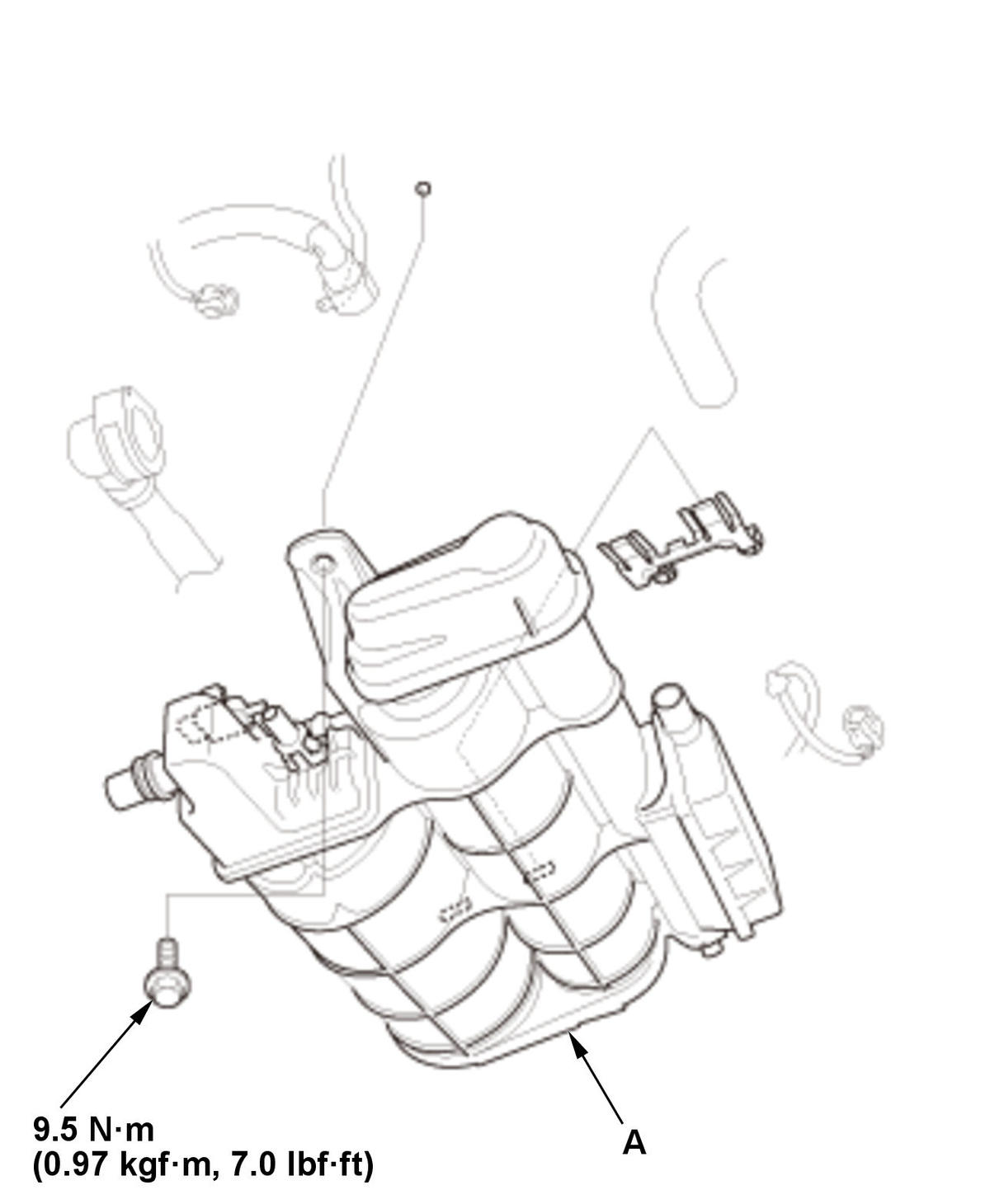

    GHH308480Courtesy of HONDA, U.S.A., INC.
    		 6. Remove the EVAP canister assembly (A) from the front side.
  6. EVAP Canister - Disassembly

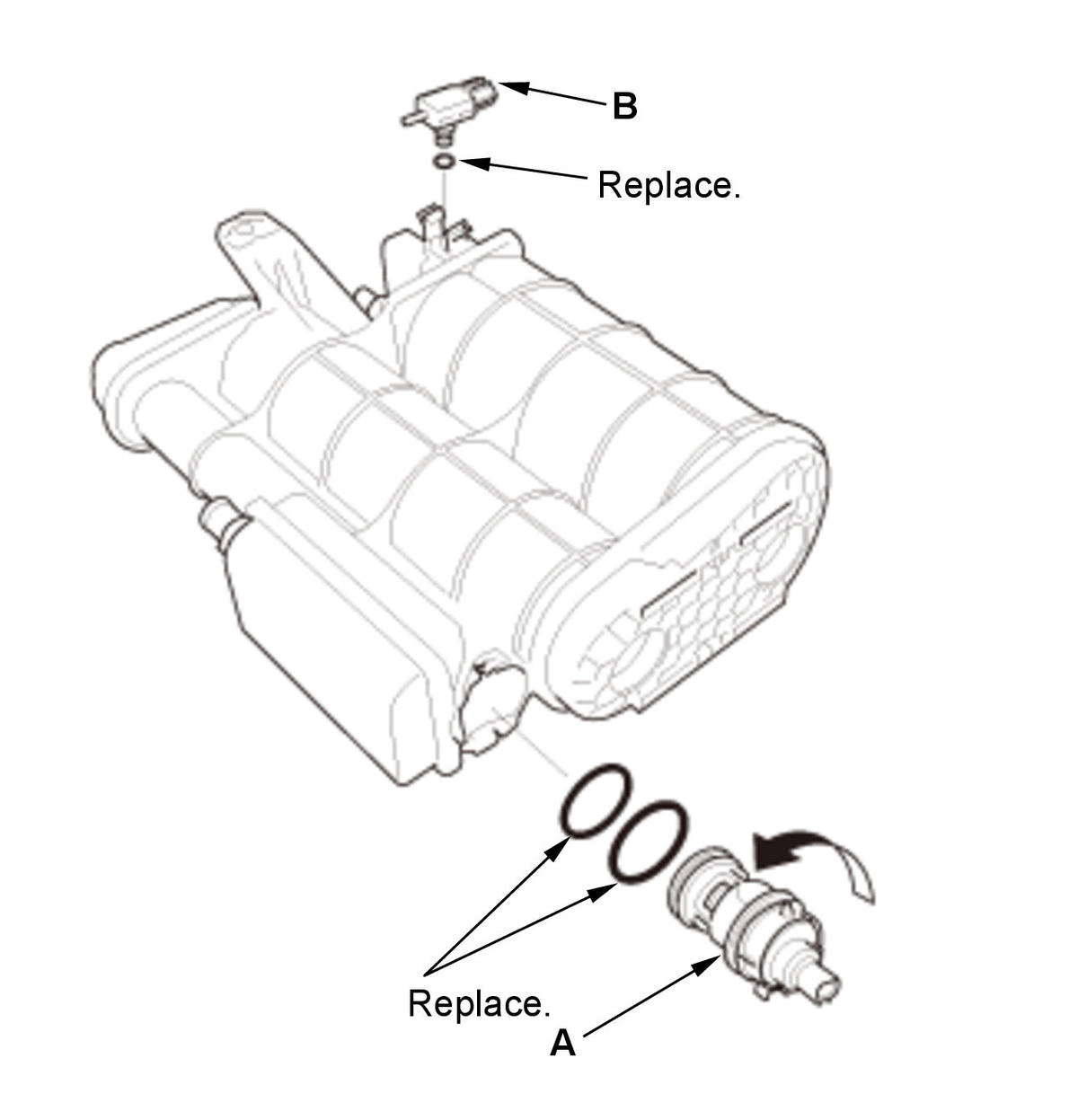

    GHH308481Courtesy of HONDA, U.S.A., INC.
    		 1. Remove the EVAP canister vent shut valve (A).

    2. Remove the FTP sensor

    (B).
  7. All Removed Parts - Install
    1. Install the parts in the reverse order of removal with new O-rings.
