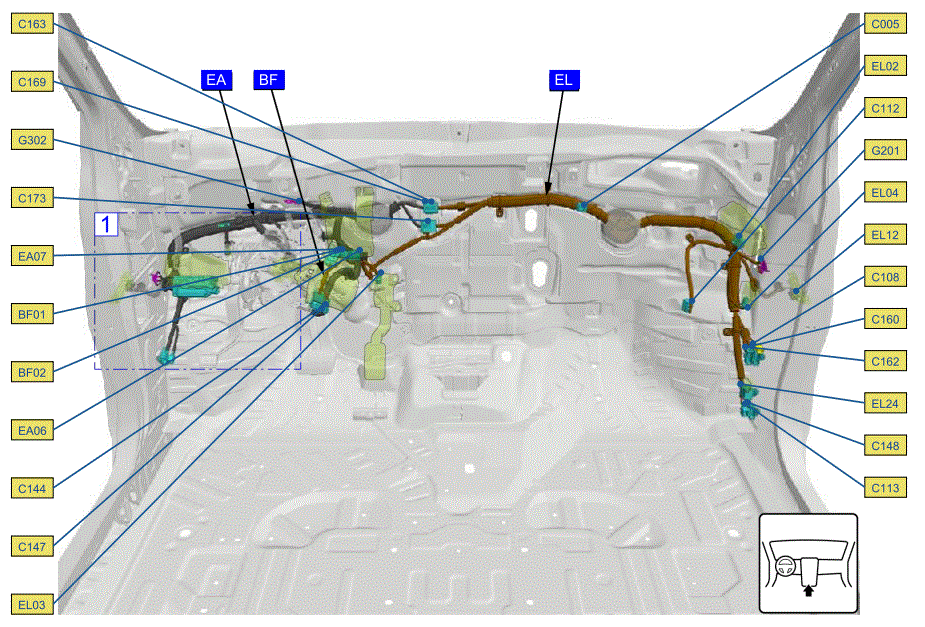

C148 Connector Location
BF: EPS Subharness
| Ref. No. | Connector Name | Male/Female | Connector Type | Notes |
| BF01 | EPS Control Unit Connector B (8P) | Female | Component Connector | |
| BF02 | EPS Control Unit Connector A (2P) | Female | Component Connector | |
| C144 | C144 | In-line Connector | ||
| C147 | C147 | In-line Connector |
EA: Left Engine Compartment Wire Harness
| Ref. No. | Connector Name | Male/Female | Connector Type | Notes |
| EA06 | DC-DC Converter Connector B (5P) | Female | Component Connector | |
| EA07 | DC-DC Converter Connector A (3P) | Female | Component Connector | |
| EA08 | Diode C 2P Connector | Female | Component Connector | |
| EA09 | Driver's Under-Dash Fuse/Relay Box Connector E (36P) | Female | Component Connector | |
| EA10 | Driver's Under-Dash Fuse/Relay Box Connector F (18P) | Female | Component Connector | |
| EA14 | Left-Front LF Antenna/Initiator 2P Connector | Female | Component Connector | |
| EA17 | Parking Brake Switch 1P Connector | Female | Component Connector | |
| EA18 | Brake Pedal Position Switch 4P Connector | Component Connector | ||
| C109 | C109 | Female | In-line Connector | |
| C126 | C126 | In-line Connector | ||
| C136 | C136 | In-line Connector | ||
| C141 | C141 | In-line Connector | ||
| C144 | C144 | In-line Connector | ||
| C147 | C147 | In-line Connector | ||
| C163 | C163 | In-line Connector | ||
| C169 | C169 | In-line Connector | ||
| C173 | C173 | In-line Connector | ||
| G301 | G301 | In-line Connector | ||
| G302 | G302 | In-line Connector |
EL: Right Engine Compartment Wire Harness
| Ref. No. | Connector Name | Male/Female | Connector Type | Notes |
| EL02 | Engine Mount Control Unit 16P Connector | Female | Component Connector | |
| EL03 | APP Sensor 6P Connector | Female | Component Connector | |
| EL04 | Headlight Leveling Control Unit 12P Connector | Female | Component Connector | |
| EL12 | Right-Front LF Antenna/Initiator 2P Connector | Female | Component Connector | |
| EL24 | Right Front Relay Holder | Component Connector | ||
| C108 | C108 | In-line Connector | ||
| C112 | C112 | In-line Connector | ||
| C113 | C113 | In-line Connector | ||
| C148 | C148 | In-line Connector | ||
| C160 | C160 | In-line Connector | ||
| C162 | C162 | In-line Connector | ||
| C163 | C163 | In-line Connector | ||
| C169 | C169 | In-line Connector | ||
| C173 | C173 | In-line Connector | ||
| C005 | C005 | Junction Connector | ||
| G201 | G201 | Ground |
