Keyless Buzzer Circuit
- Open wire check (GND line)
-1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Disconnect the following connector.

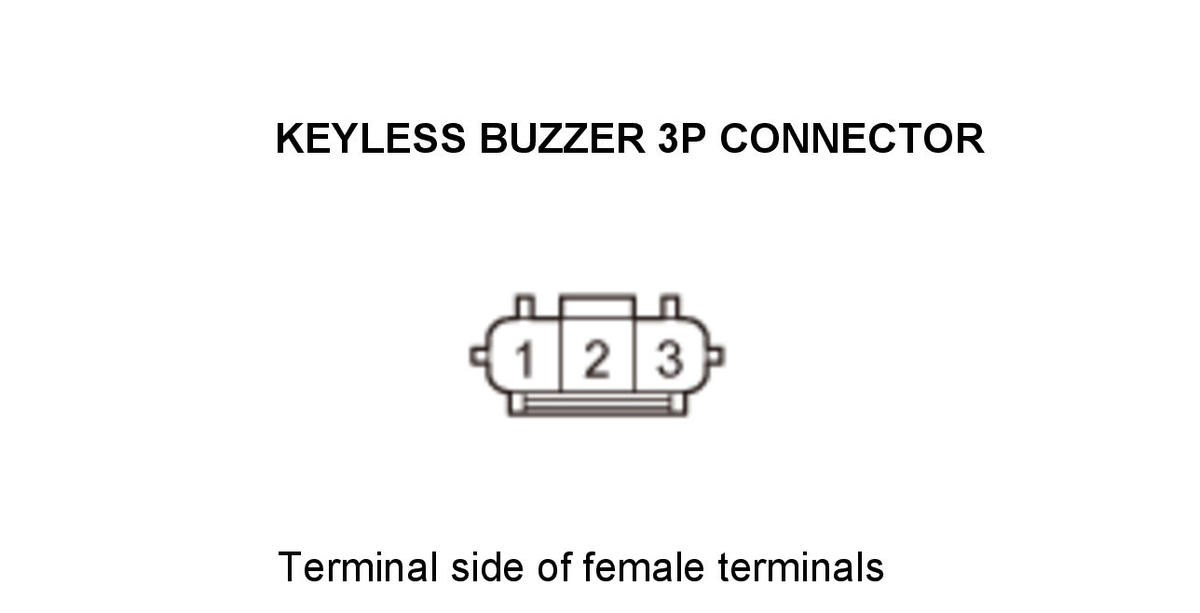

Keyless buzzer 3P connector - 3. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode
Keyless buzzer 3P connector: disconnectedTest point 1 Keyless/power tailgate outside buzzer 3P connector No. 3 Test point 2 Body ground Is there continuity?
YES
The GND wire is OK. Go to step 2.
NO
Repair an open or high resistance in the ground wire or poor ground (G602).
- Open wire check (EXT BUZ line)
-1. Disconnect the following connector.
Under-dash fuse/relay box connector Q (10P) - 2. Connect terminals A and B with a jumper wire.
Terminal A Keyless buzzer 3P connector No. 2 Terminal B Body ground - 3. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode
Keyless buzzer 3P connector: disconnected
Under-dash fuse/relay box connector Q (10P): disconnectedTest point 1 Under-dash fuse/relay box connector Q (10P) No. 9 Test point 2 Body ground Is there continuity?
YES
The EXT BUZ wire is not open. Go to step 3.
NO
Repair an open or high resistance in the wire.
- Shorted wire check (EXT BUZ line)
-1. Remove the jumper wire from the keyless buzzer 3P connector.
- 2. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode
Keyless buzzer 3P connector: disconnected
Under-dash fuse/relay box connector Q (10P): disconnectedTest point 1 Under-dash fuse/relay box connector Q (10P) No. 9 Test point 2 Body ground Is there continuity?
YES
Repair a short to ground in the wire.
NO
The EXT BUZ wire is OK. Go to step 4.
- Keyless buzzer check (substitution)
-1. Substitute a known-good keyless buzzer.
- 2. Check the keyless buzzer function.
Does the keyless buzzer sound?
YES
Replace the Keyless Buzzer - Removal and Installation .
NO
Faulty MICU, Replace the Under-Dash Fuse/Relay Box - Removal and Installation .
