Rear Entertainment System (Res) Auxiliary Jack Assembly Connector For Inputs And Outputs (2019 2020 2021)

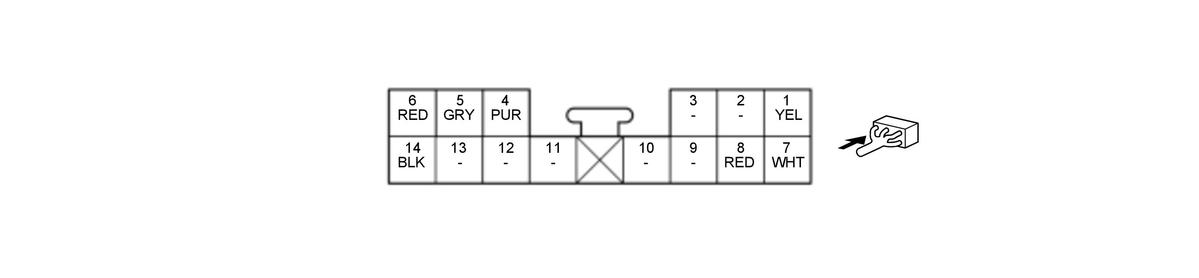

RES auxiliary jack assembly 14P connector (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | CON CHECK1- | Ground for RES auxiliary jack assembly connection signal |
| 2 | Not used | - - - |
| 3 | Not used | - - - |
| 4 | CON CHECK1+ | Detects connection for RES auxiliary jack assembly |
| 5 | ILLUMI+ | Detects parking light on signal |
| 6 | ILLUMI-(LED) | Detects illumination control signal |
| 7 | HP R | Inputs sound signal for headphone |
| 8 | HP L | Inputs sound signal for headphone |
| 9 | Not used | - - - |
| 10 | Not used | - - - |
| 11 | Not used | - - - |
| 12 | Not used | - - - |
| 13 | Not used | - - - |
| 14 | HP GND | Ground for sound signal |
