Intake Manifold (2019 2020 2021): Removal

NOTE:  Refer to the Exploded View if needed during this procedure.

1. Air Cleaner - Remove
2. Intake Air Duct - Remove
3. EVAP Canister Purge Hose and Connector (EVAP Canister Purge Valve) - Disconnect
4. Throttle Body - Move

   NOTE:  Do not disconnect the water bypass hoses.

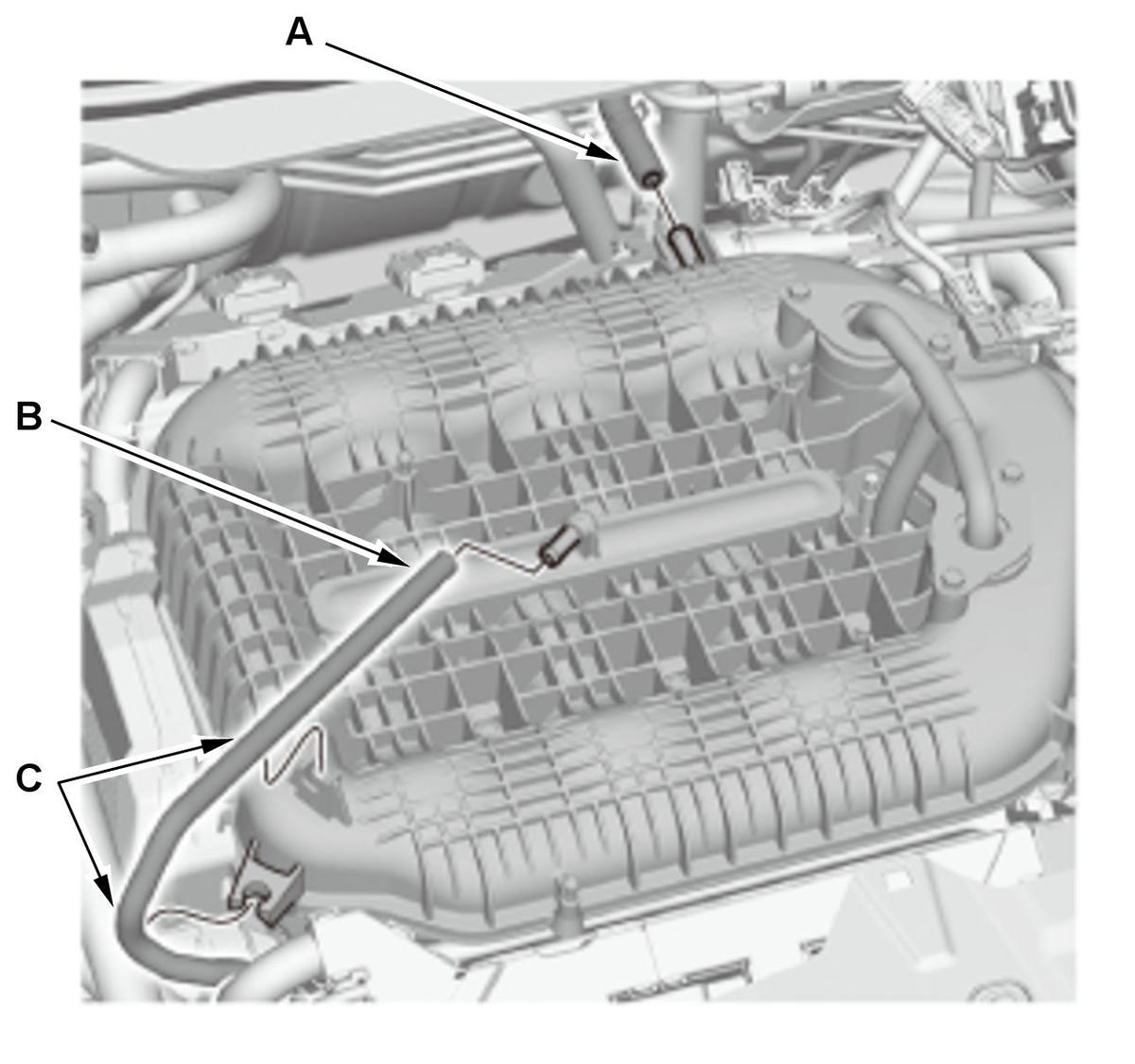

5. Brake Booster Vacuum Hose and PCV Hose - Disconnect

   Courtesy of HONDA, U.S.A., INC.

   1. Disconnect the brake booster vacuum hose (A) and the PCV hose (B). 2. Remove the hose clamps (C).

6. EGR Pipe B - Remove
7. Intake Manifold - Remove

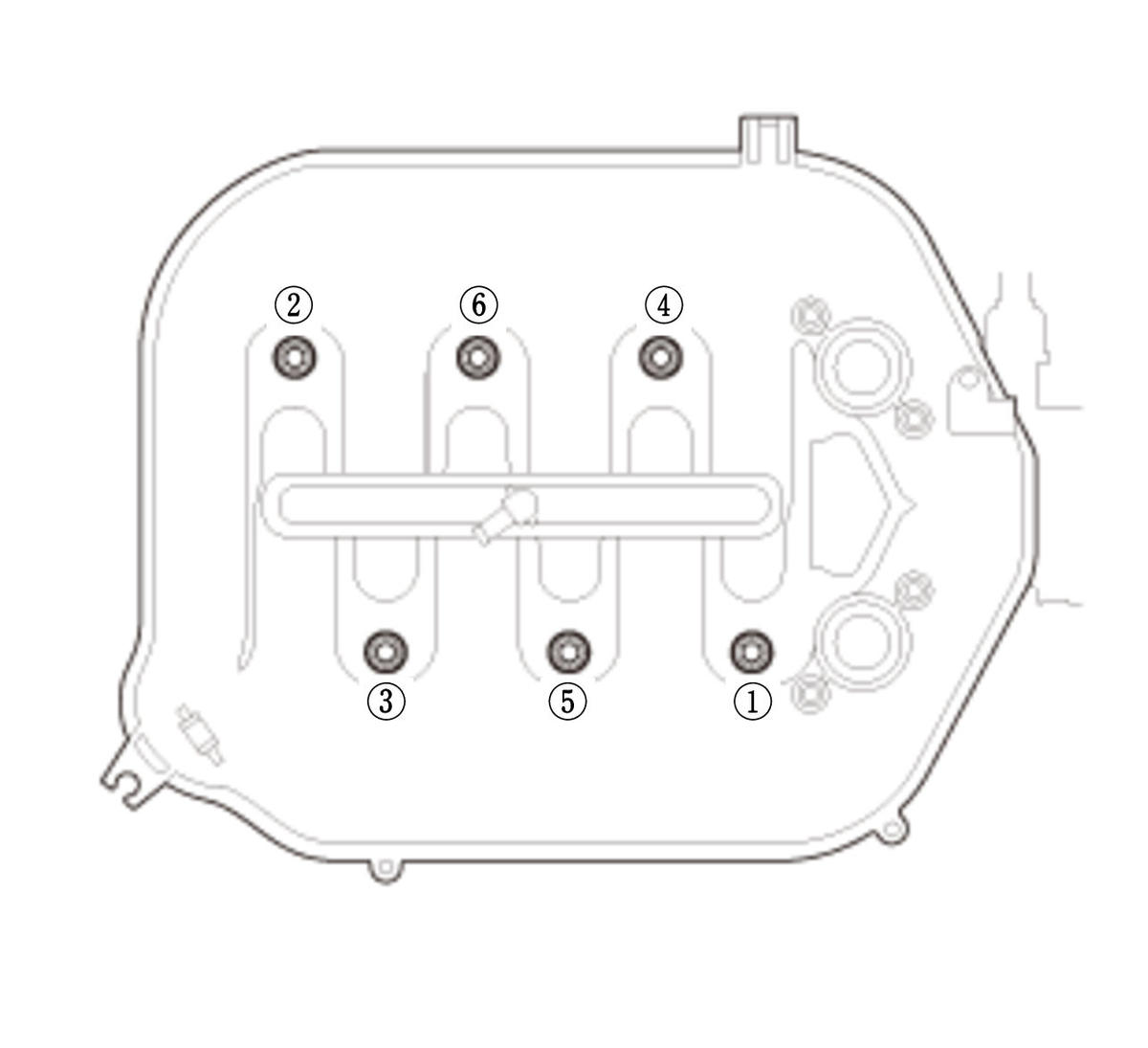

   Fig 1: Intake Manifold Loosening Sequence

   Courtesy of HONDA, U.S.A., INC.

   1. Remove the intake manifold mounting bolts and nuts sequentially in three steps. 2. Remove the intake manifold.

8. Intake Manifold Base - Remove

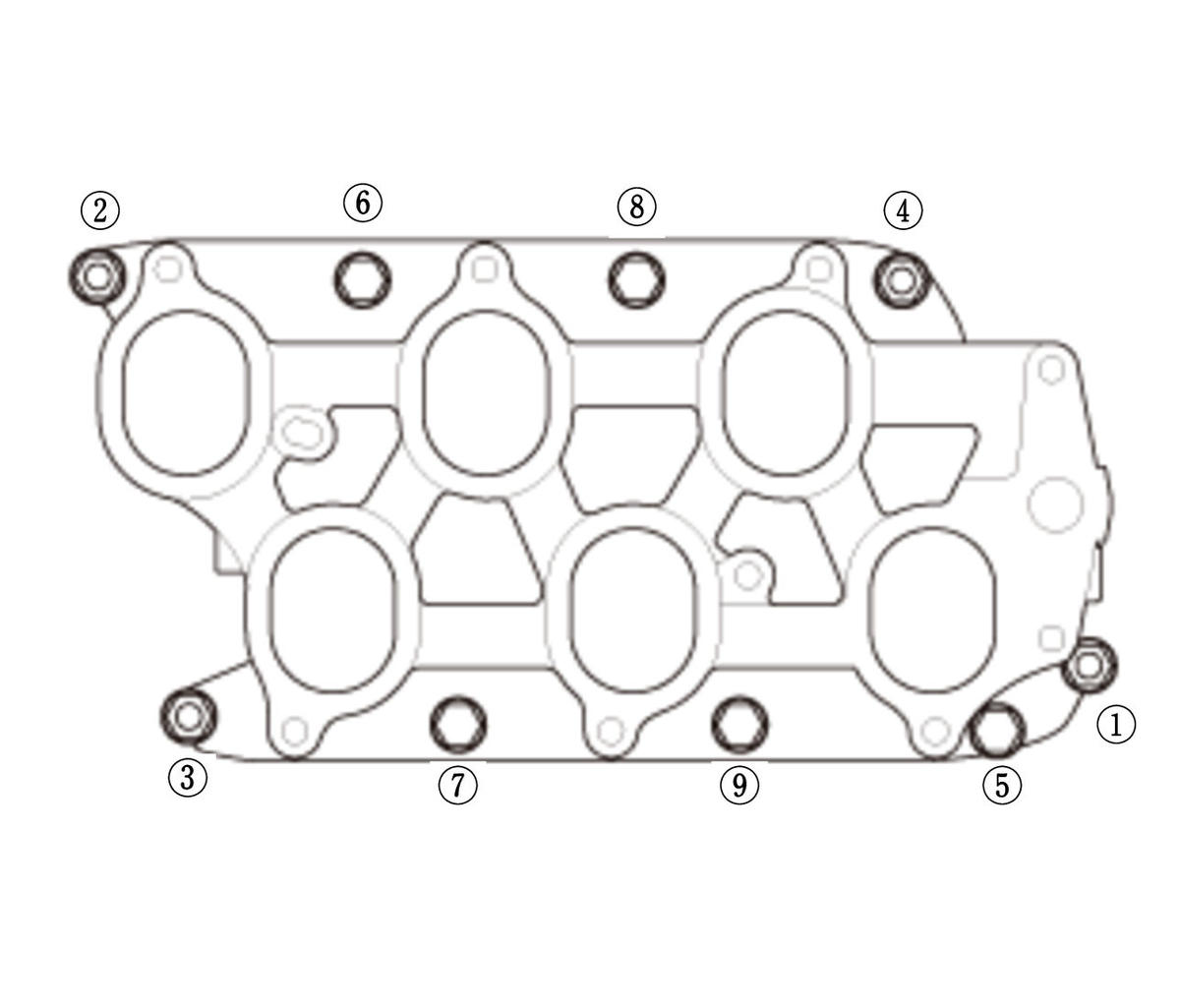

   Fig 2: Intake Manifold Base Loosening Sequence

   Courtesy of HONDA, U.S.A., INC.

   1. Remove the intake manifold base mounting bolts and nuts sequentially in three steps. 2. Remove the intake manifold base.
