DTC : P050B: General Description

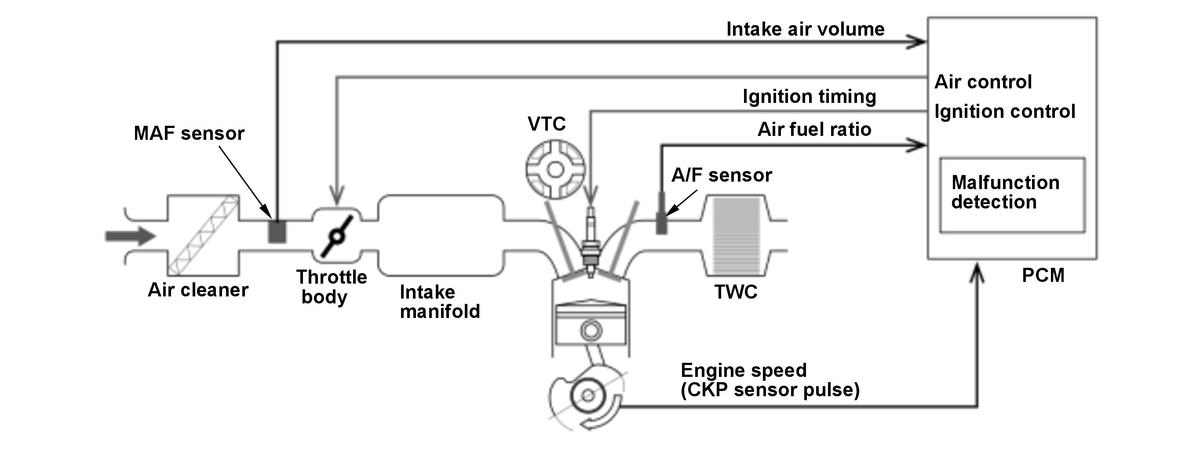

GHH306695Courtesy of HONDA, U.S.A., INC.

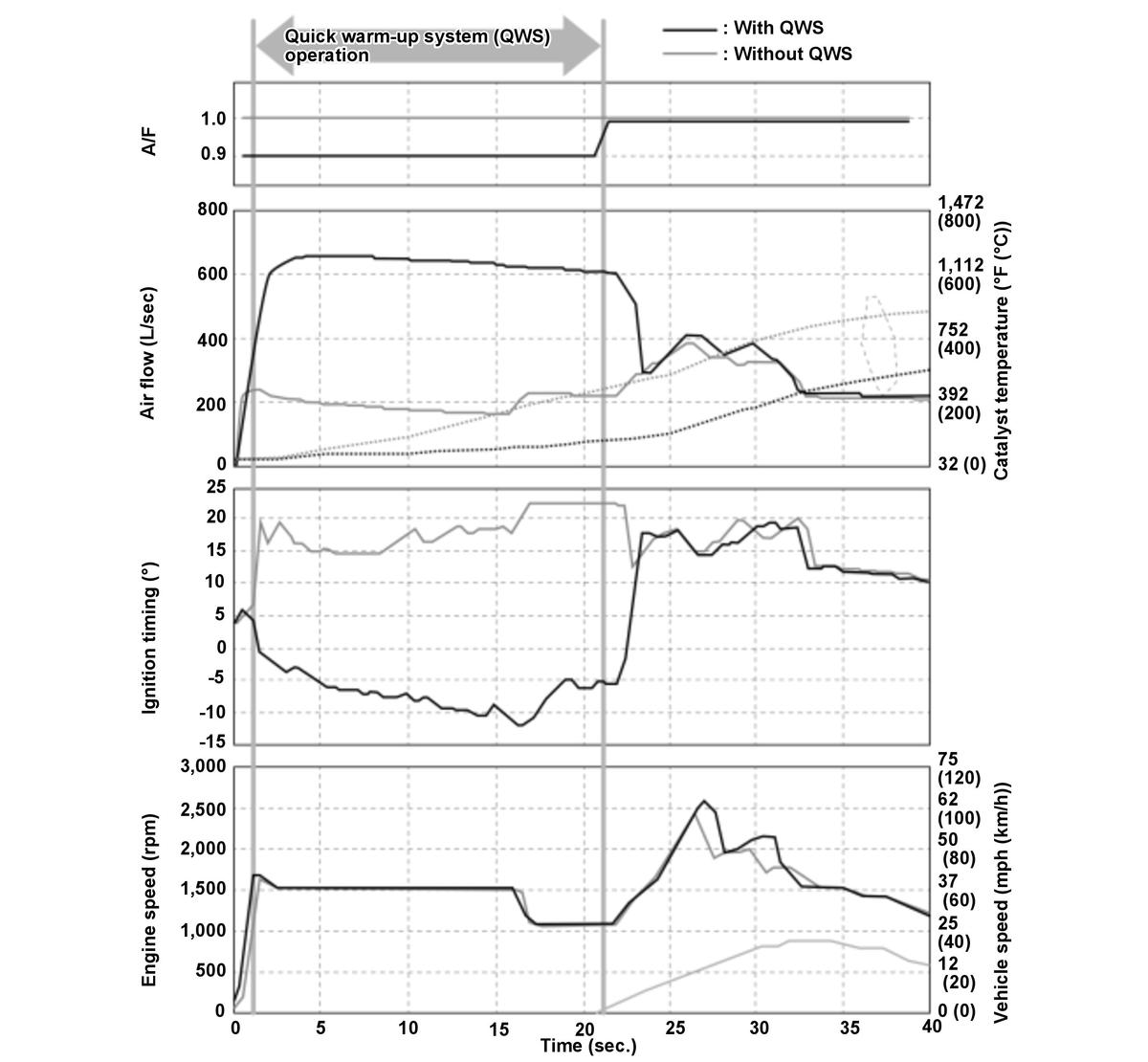

GHH306696Courtesy of HONDA, U.S.A., INC.

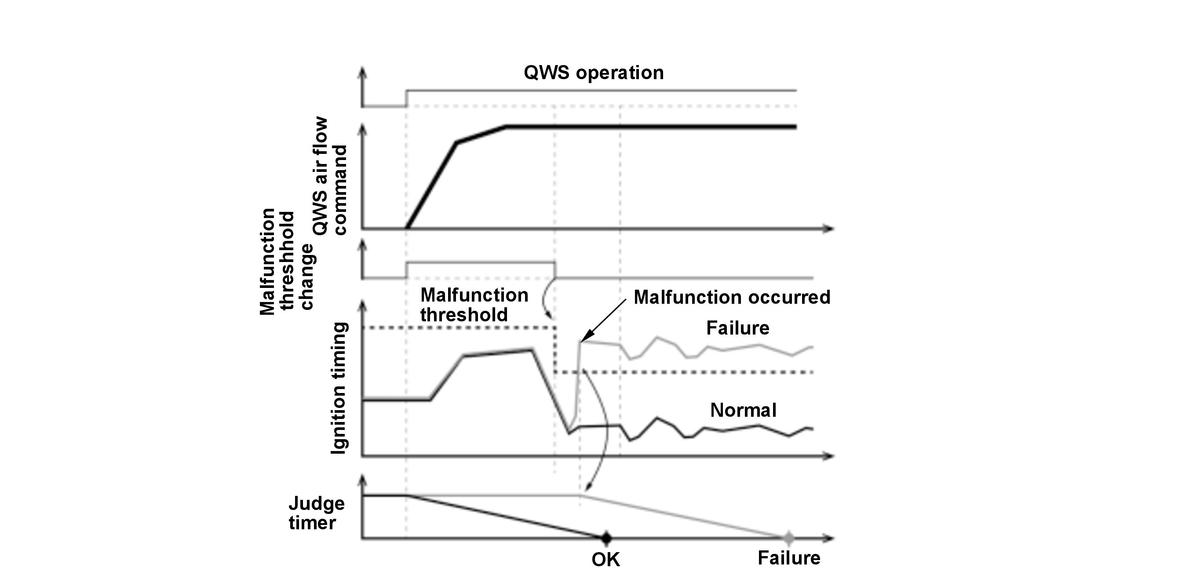

GHH306697Courtesy of HONDA, U.S.A., INC.

The quick warm-up system increases air flow and retards ignition timing to accelerate the warm-up of the catalyst on cold engine start. If the ignition timing is excessively advanced, the powertrain control module (PCM) detects a malfunction and stores a DTC.
