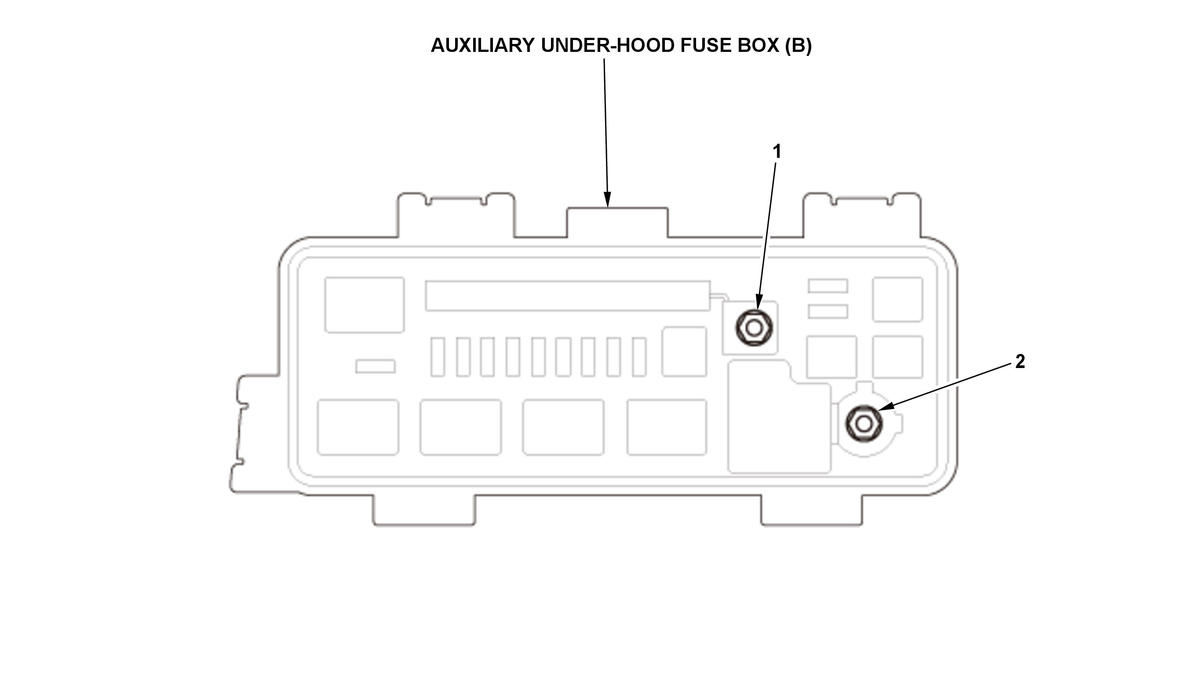

Auxiliary Under-Hood Fuse/Relay Box (B)
Courtesy of HONDA, U.S.A., INC. Auxiliary Under-Hood Fuse/Relay Box (B) Legend
| Socket |
Ref |
Terminals |
Connects to |
Notes |
| T2 |
1 |
- - - |
Left engine compartment wire harness |
|
| T3 |
2 |
- - - |
Left engine compartment wire harness |
* |
| *: With auto idle stop system or with second row seat heater |
