Removal and Installation

Right Rear Inner Fender - Remove

1. Remove the right rear inner fender as needed - Refer to: Rear Inner Fender Removal and Installation, .

Right-Rear LF Antenna/Initiator - Remove

Courtesy of HONDA, U.S.A., INC.

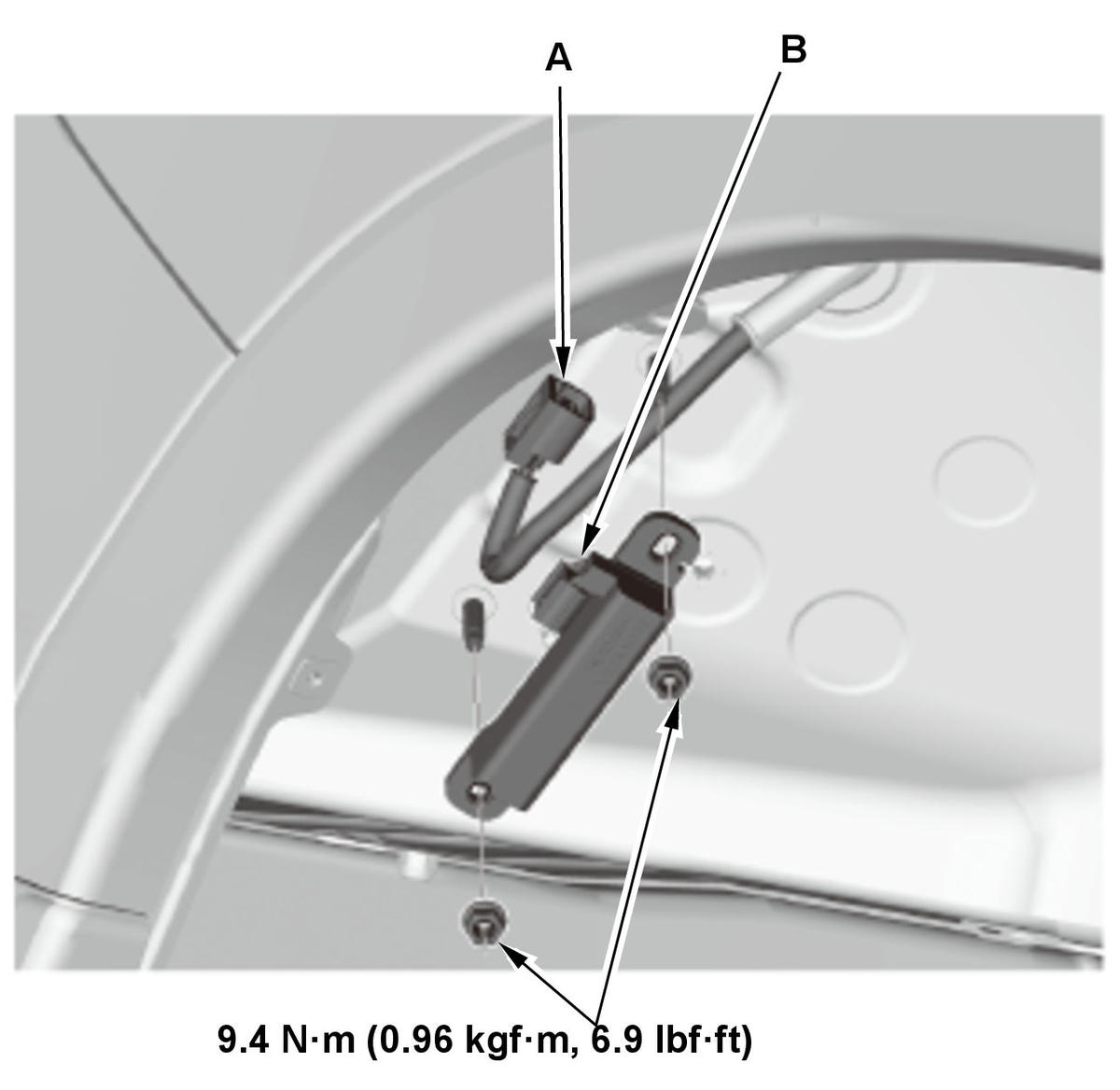

1. Disconnect the connector (A).

2. Remove the right-rear LF antenna/initiator (B).

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
