ANC/Active Sound Control Microphone Connector For Inputs And Outputs (2016 2017 2018)
NOTE: The front ANC/active sound control microphone, front HFL-ANC/active sound control microphone, and the front HFL-navigation-ANC/active sound control microphone are the same parts.

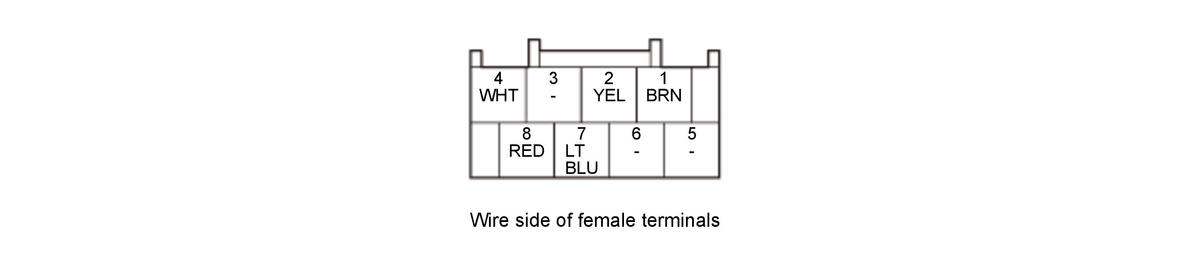

FRONT ANC/ACTIVE SOUND CONTROL MICROPHONE 8P CONNECTOR
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | MIC GND | Ground for microphone |
| 2 | MIC SIG+ | Outputs microphone signal |
| 3 | Not used | - - - |
| 4 | MIC PWR | Continuous power source |
| 5 | Not used | - - - |
| 6 | Not used | - - - |
| 7 | HFT MUTE | HFL mute signal |
| 8 | F MIC+ | Outputs sound signal to ANC/active sound control unit |

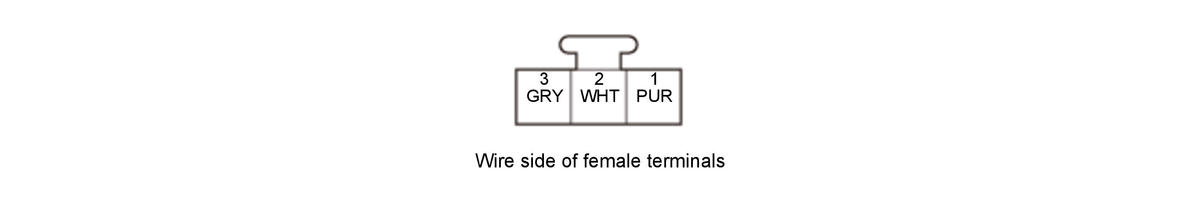

REAR ANC/ACTIVE SOUND CONTROL MICROPHONE 3P CONNECTOR
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | ACC (DC/DC)* 1 ACC* 2 |
Power source for accessories |
| 2 | R MIC+ | Outputs sound signal to ANC/active sound control unit |
| 3 | R MIC SH | Shield for terminal No. 2 |
*1: With auto idle stop system
*2: Without auto idle stop system
