Audio And Visual System

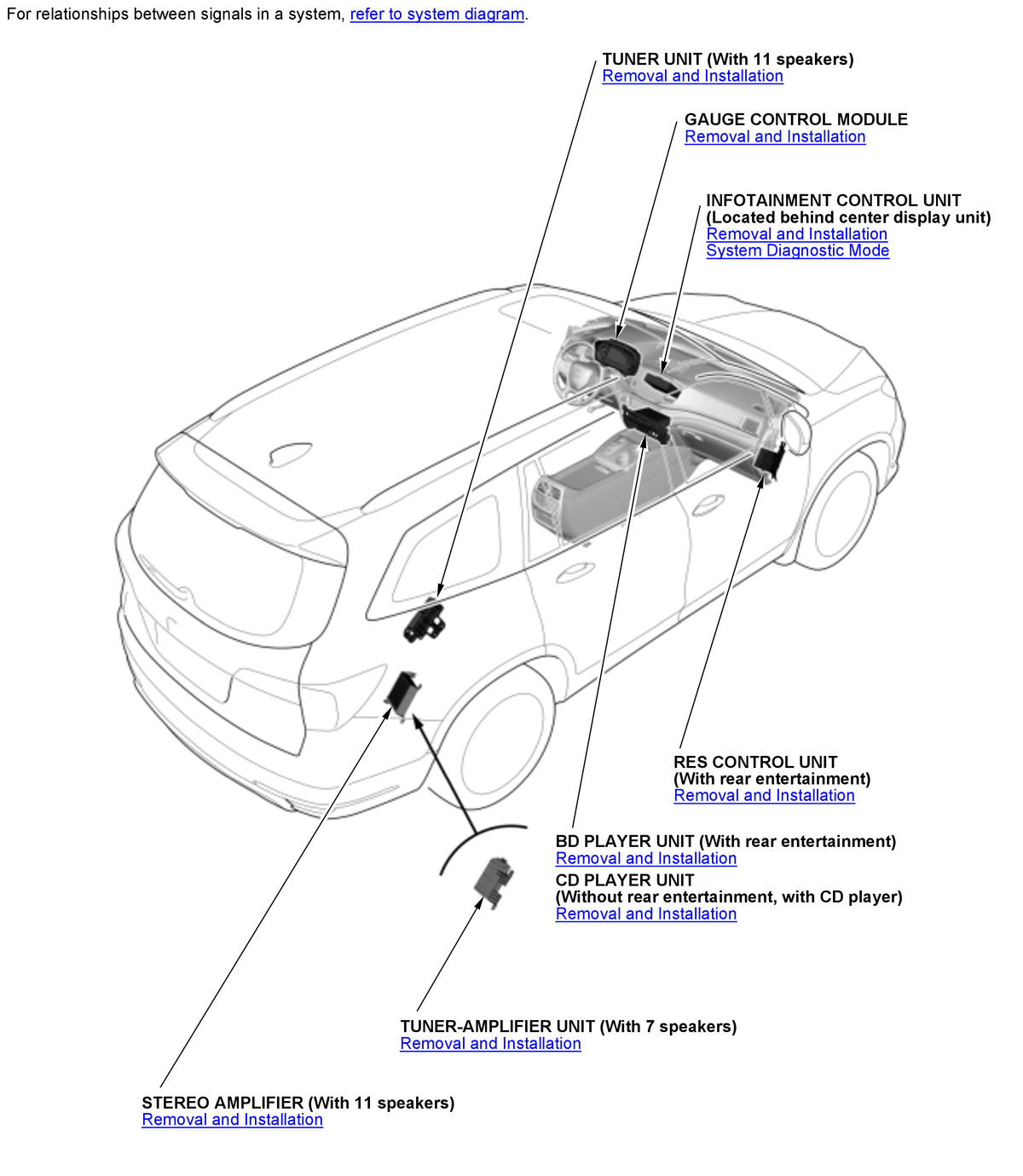

GHH303947Courtesy of HONDA, U.S.A., INC.

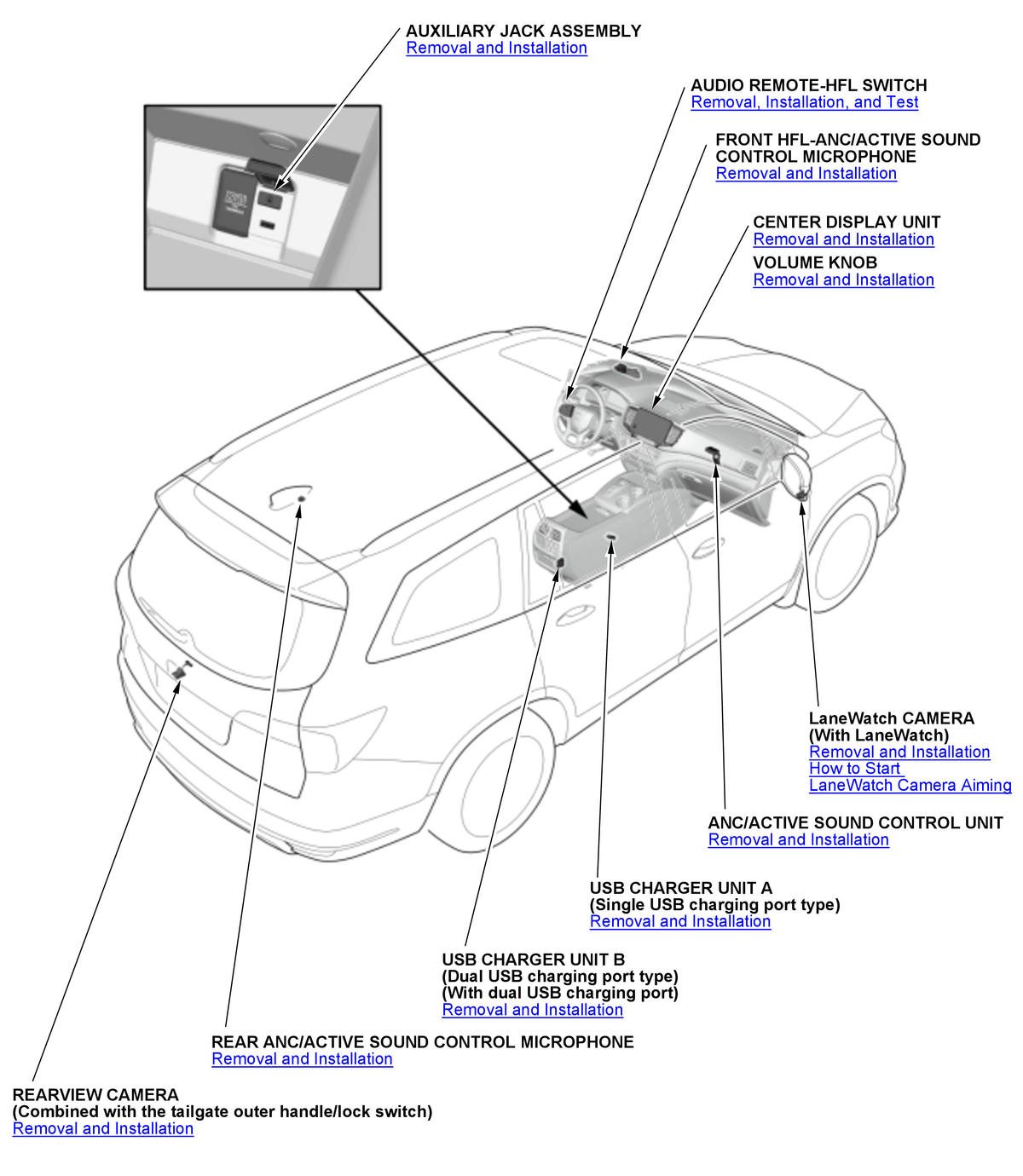

GHH303948Courtesy of HONDA, U.S.A., INC.

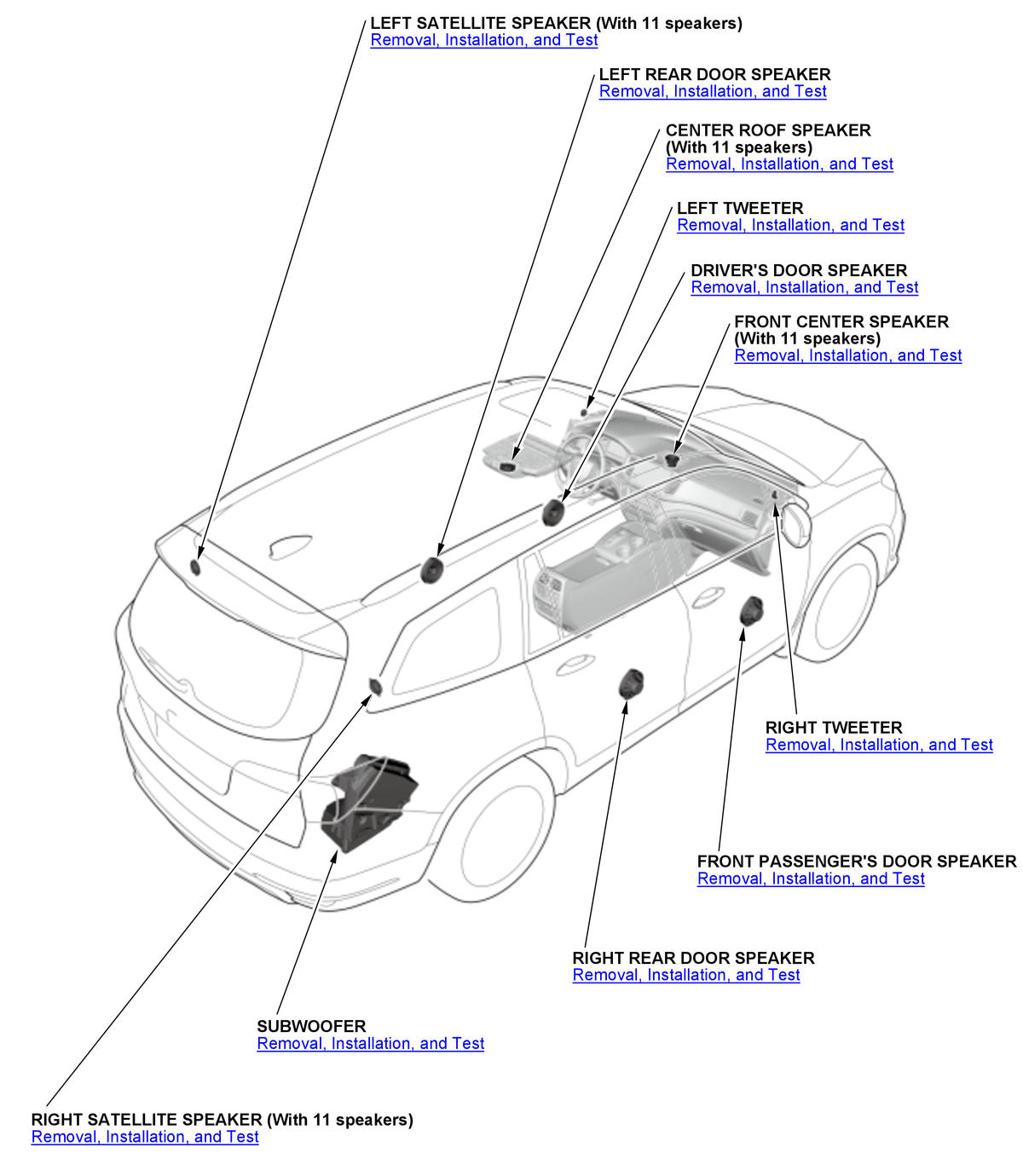

GHH303949Courtesy of HONDA, U.S.A., INC.

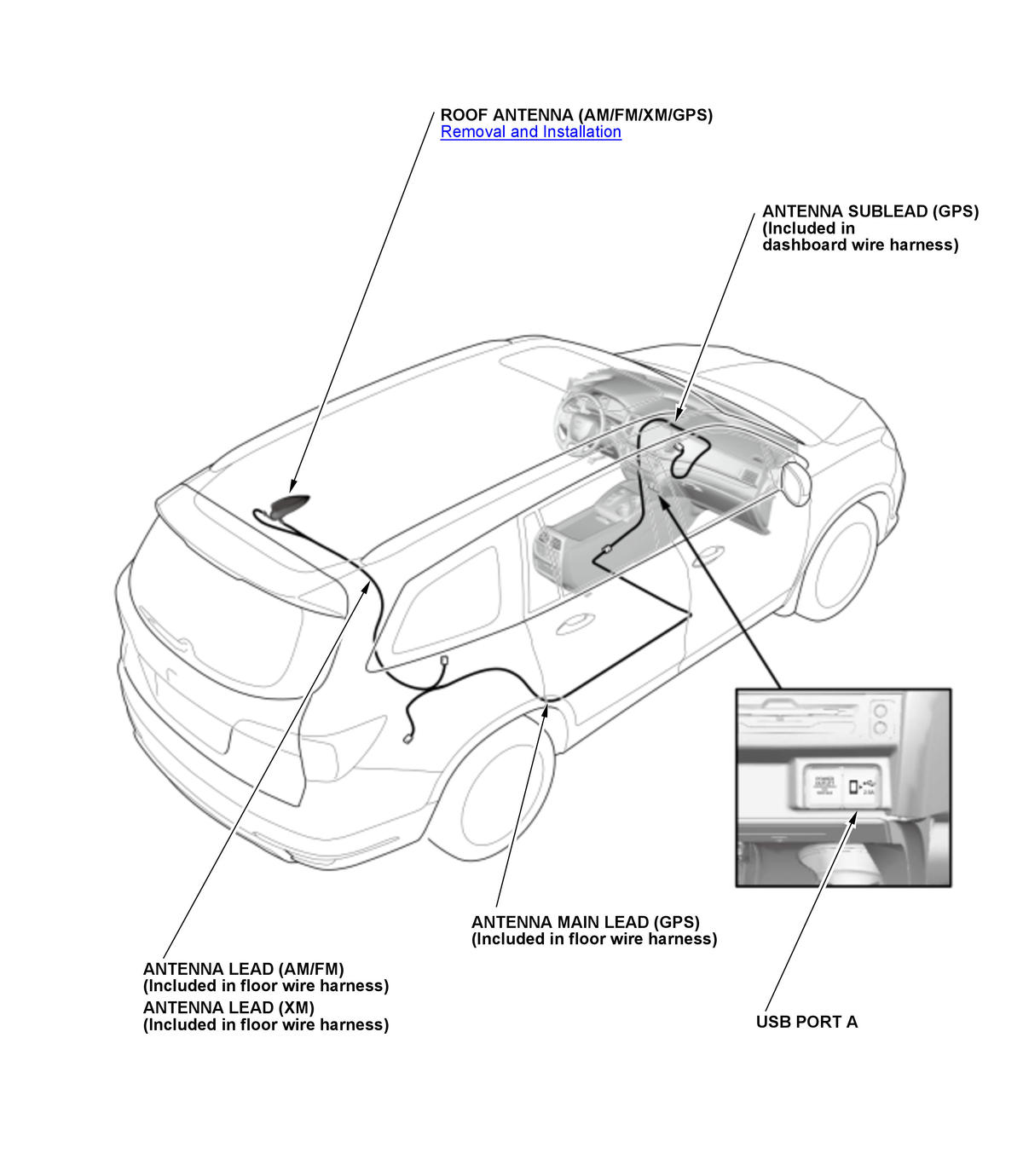

GHH303950Courtesy of HONDA, U.S.A., INC.
