Seat - 2/3 (Front Passenger's Seat)

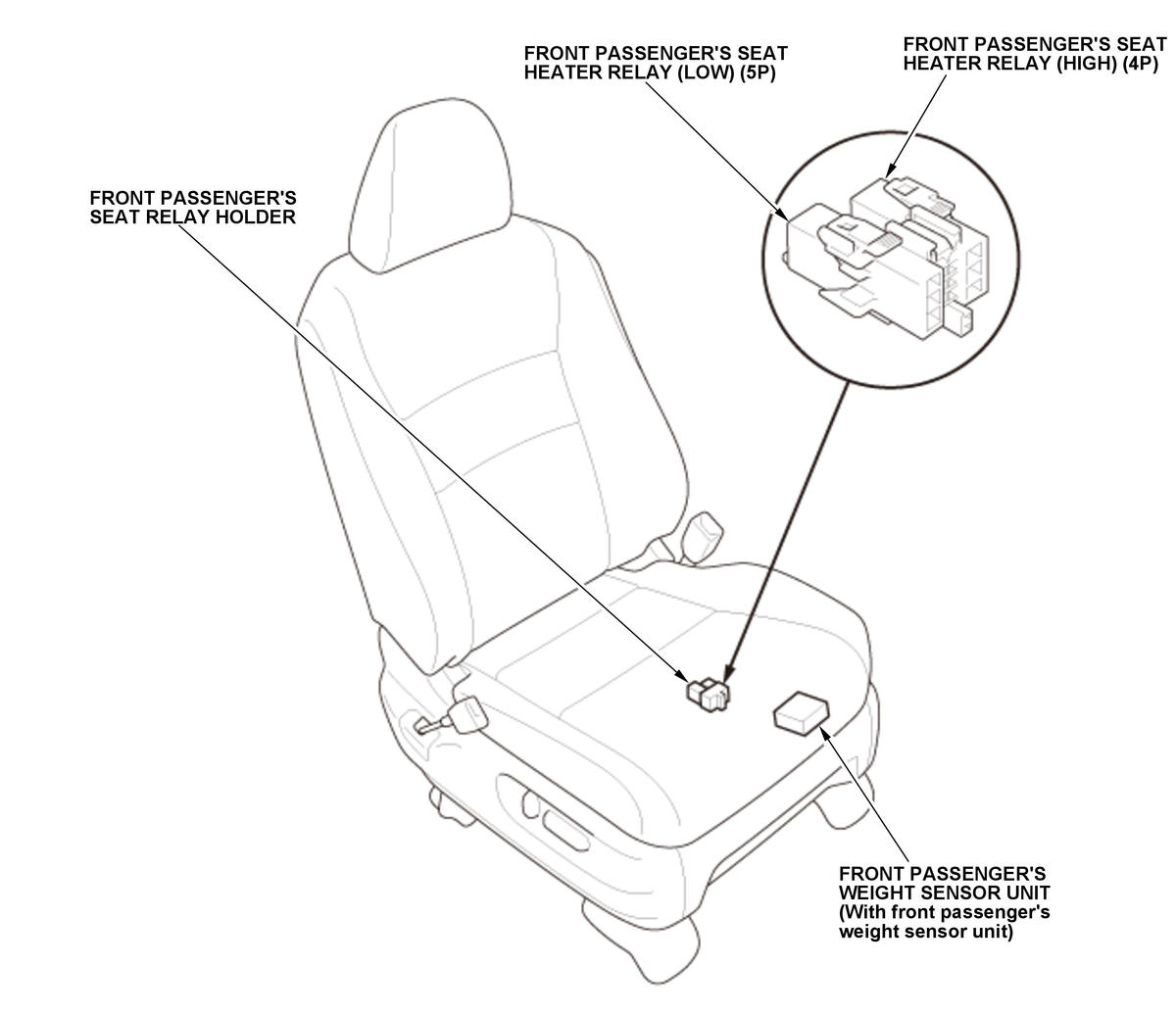

Seat - 2/3 (Front Passenger's Seat) Location
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
