INTAKE MANIFOLD (6-Speed A/T, '16-'18 9-Speed A/T)
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Exploded View
Intake Manifold

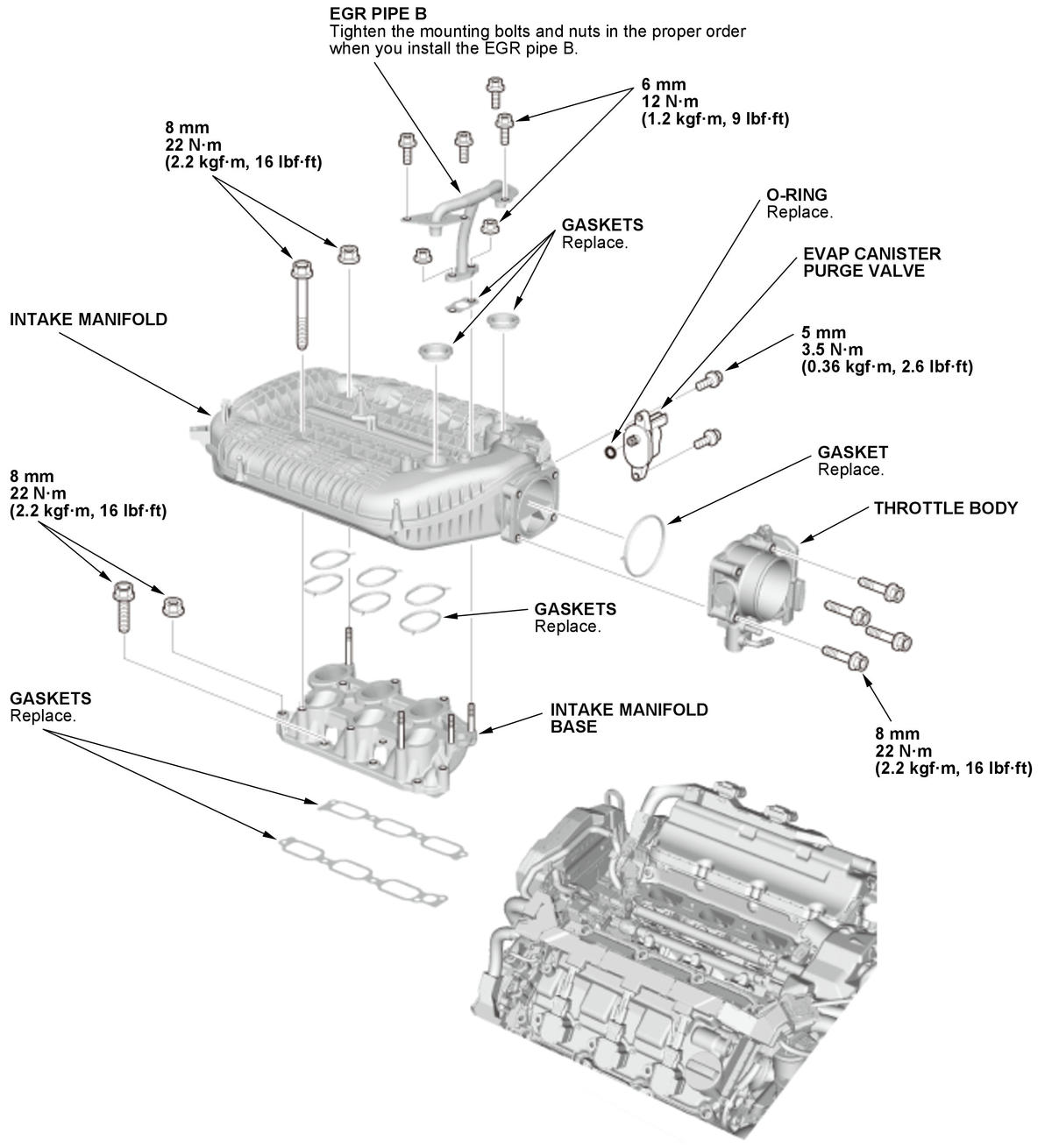

Fig 1: Intake Manifold Replacement Components
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
