Heating and A/C Systems Component Location Index

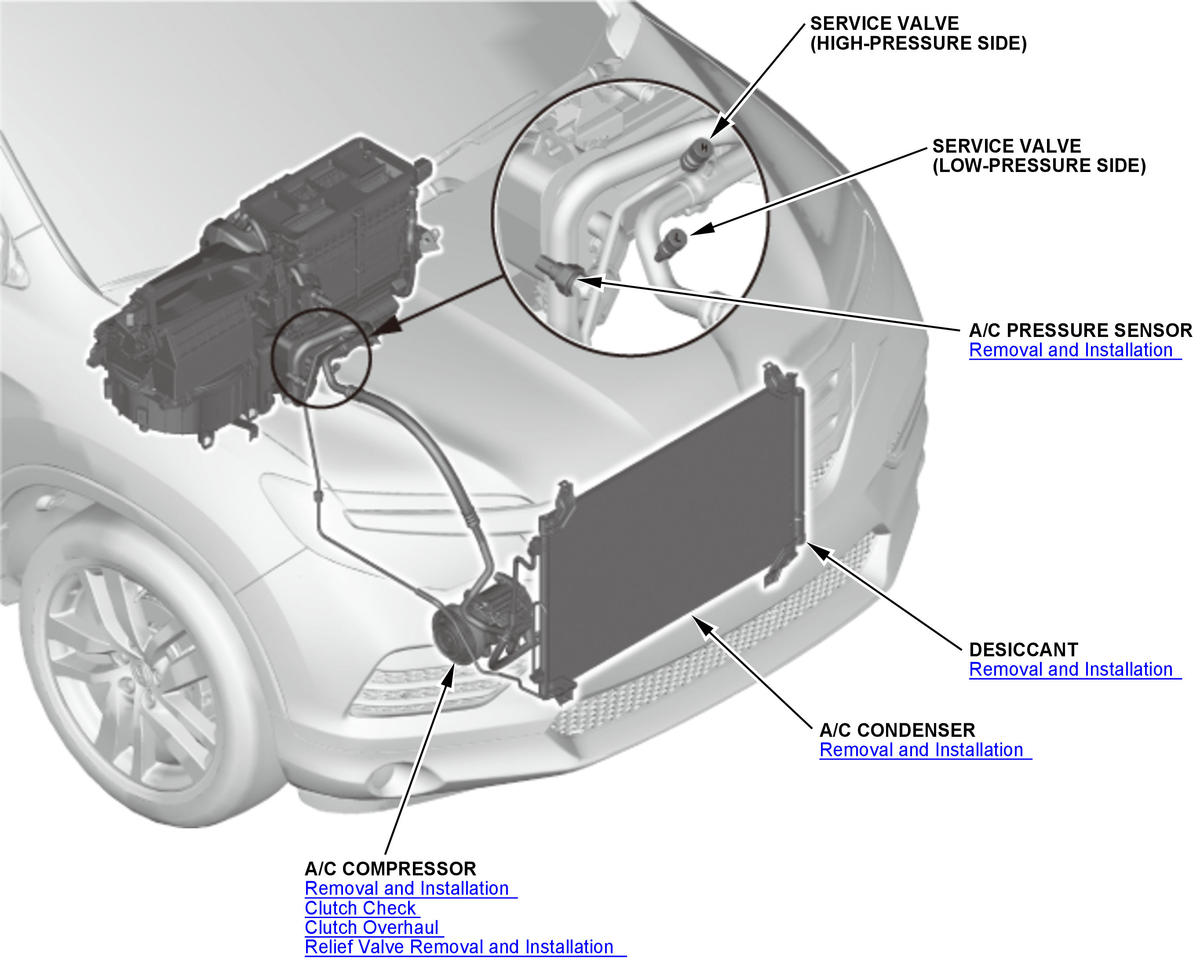

GHH309852Courtesy of HONDA, U.S.A., INC.

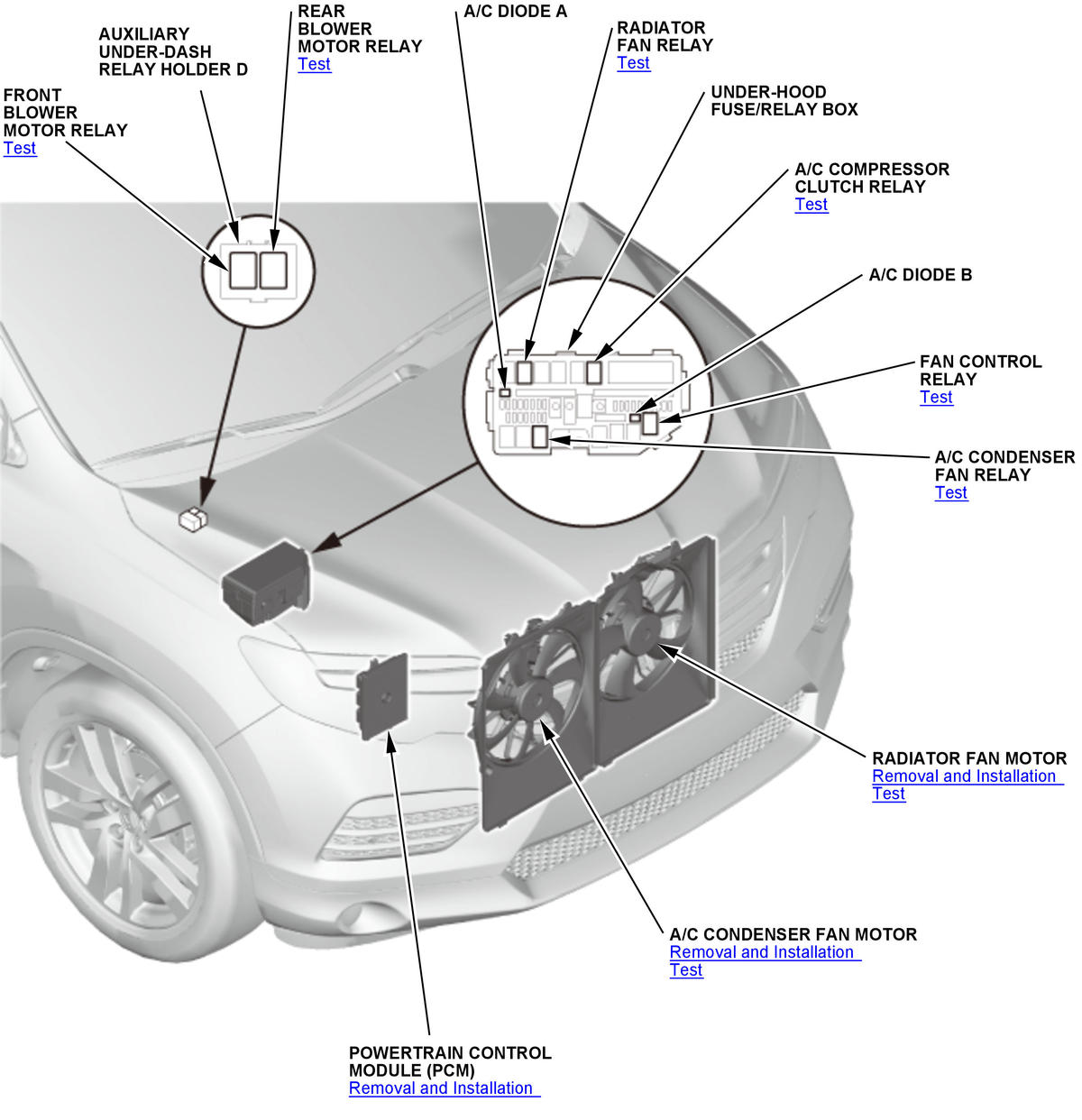

GHH309853Courtesy of HONDA, U.S.A., INC.

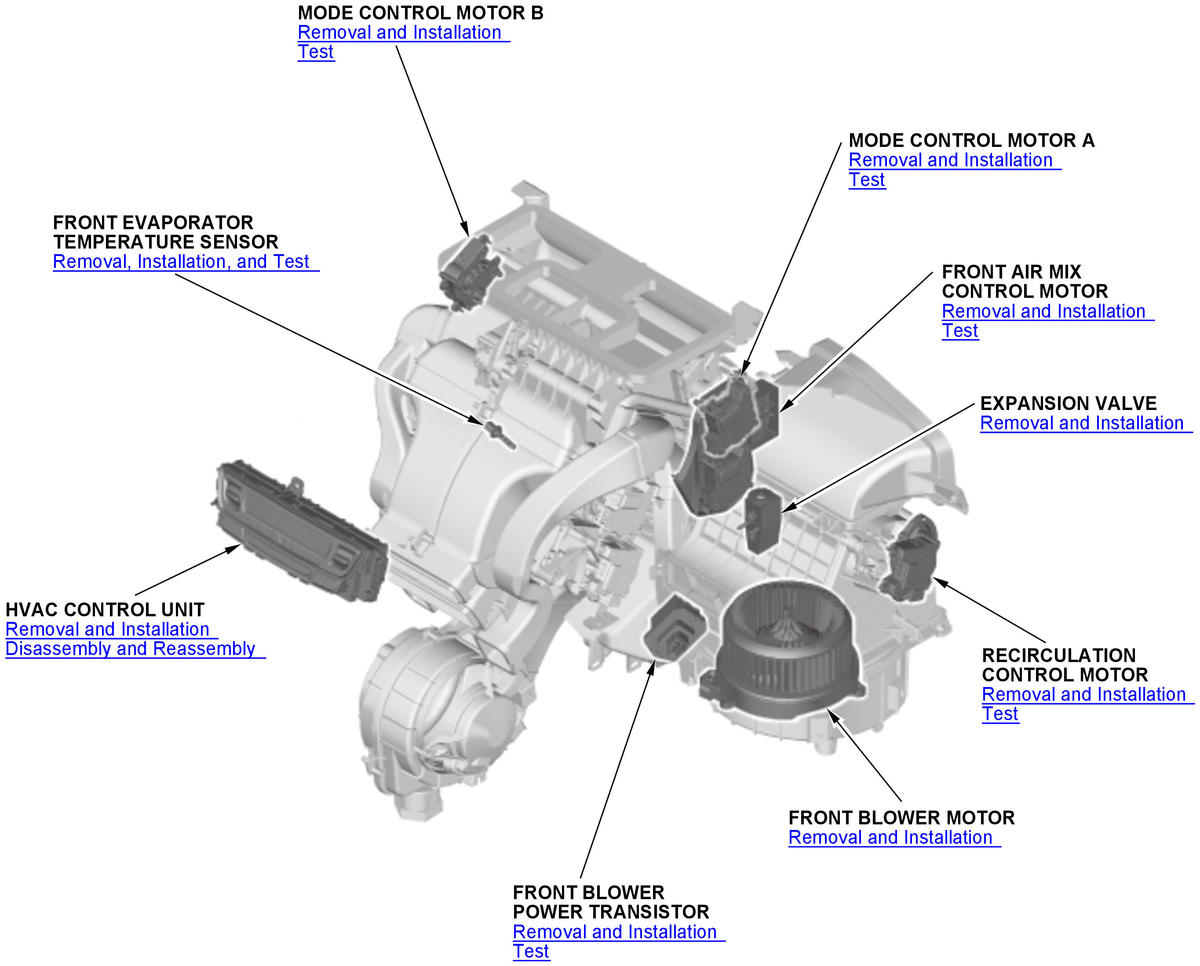

GHH309854Courtesy of HONDA, U.S.A., INC.

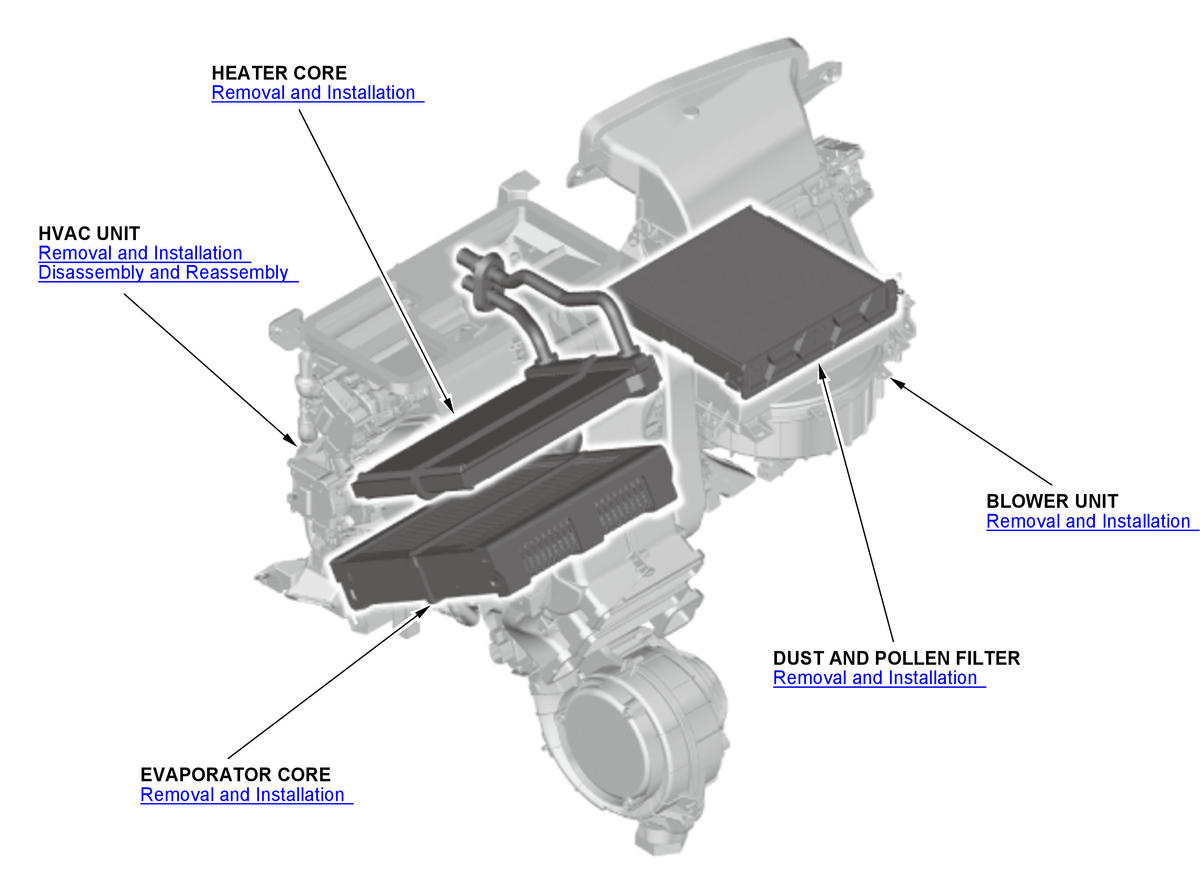

GHH309855Courtesy of HONDA, U.S.A., INC.
